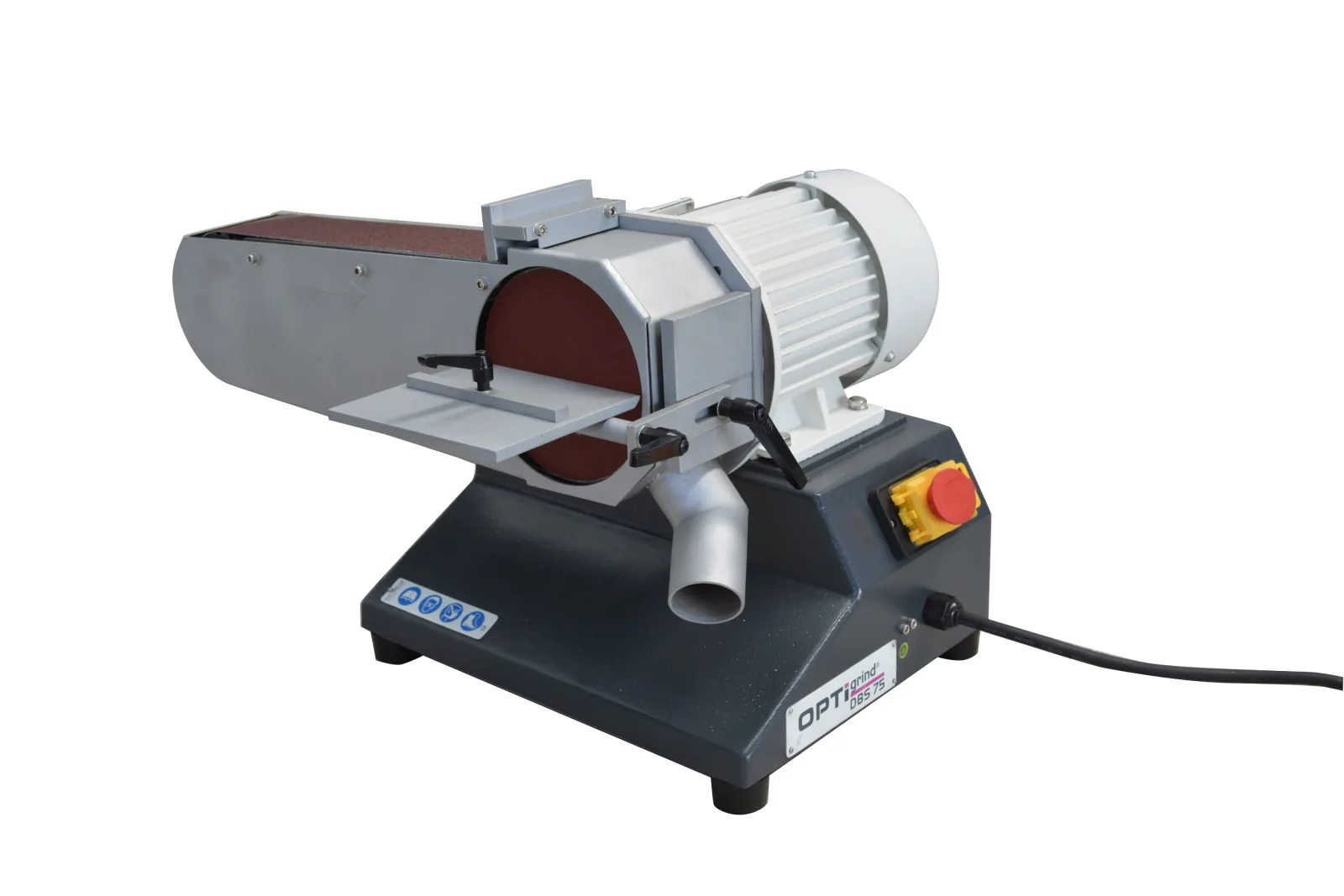

Optimum DBS75 Heavy Duty Bench Mount Belt Linisher

75mm wide belt 150mm disc

$760.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Belt size L x W 1180mm x 75mm
Belt speed 11 m/s
Motor 1.1kW 415V 1.5hp
Speed 1,400 rpm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum DBS75 is a heavy duty, bench mount belt linisher designed for robust metalworking and shop environments. Engineered for professional workshops and industrial use. With a powerful 1.1kW 3 phase motor delivering 1,400rpm, it's ideal for tasks like tool sharpening, deburring, and general metal finishing

Features:

  • Durable European construction combines German led design and quality control with EU made components, including a robust frame housing and premium ball bearing shafts for smoother, quieter operation.
  • Heavy cast base with rubber mounting feet
  • Linishing belt is solid and tilt-able ready for precision finishing
  • Side disk with adjustable tool rest

Included:

  • Supplied with P80 grit 1180mm x 75mm ZIRCONIA belt as standard
  • and 150mm diameter sanding pad

Optional:

  • Other belts and disks available in various grits

Safety Features:

  • Safety guarding and work piece guards are well thought out with a latching "E-stop" and a pre-disposed port to be hooked up to extraction
  • Includes a no volt release switch for secure start safety
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Belt size L x W 1180mm x 75mm
Belt speed 11 m/s
Motor 1.1kW 415V 1.5hp
Speed 1,400 rpm
Top belt platform 350mm x 80mm
Disc diameter 150mm
Side disc toolrest platform W x D 150mm x 135mm
Dust nozzle fitting 50mm OD
Size L x W x H 665mm x 460mm x 370mm
Weight 62 kg
Shipping 0.15 cubic / 65kg
