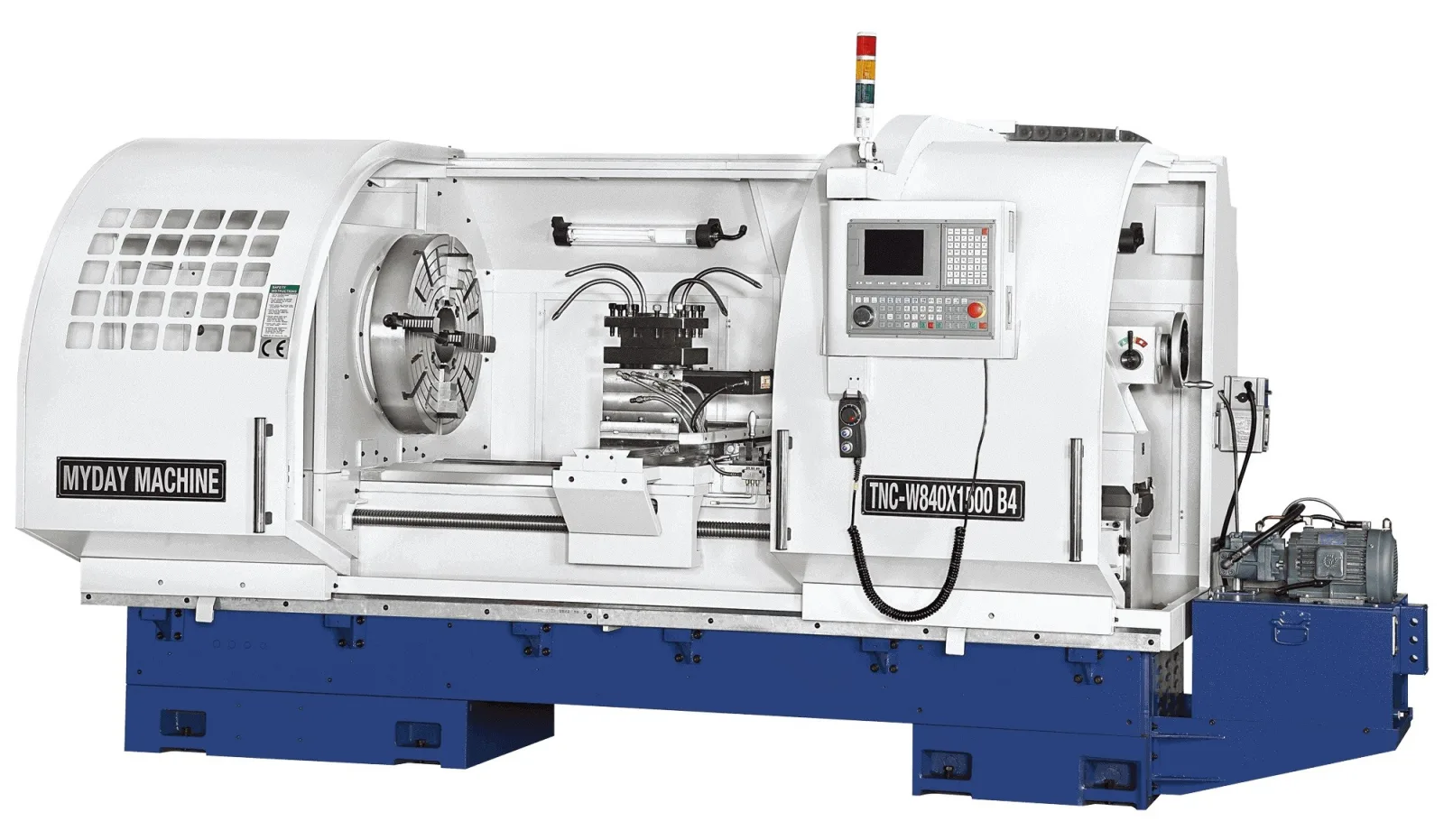

MYDAY SPB Series Heavy Duty CNC Lathes
460mm (18") Bed width 670 to 840mm swing 154 to 230mm spindle bore options 1,500 - 5,000mm between centres
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
CNC Heavy Duty Precision Lathes are a very popular product line in the metal industry. The spindle motor power in the SPB series is transmitted to the spindle through belt and 4 speed gear box. SPB series perform heavy duty machining with high speed and high rigidity.
MYDAY was founded in 1980 and is located in Taichung, Taiwan with a 6,000 sq. m manufacturing facility. MYDAY produces heavy duty precision lathe, oil country lathes, CNC heavy duty precision lathes, CNC screw millers and specialized lathes. MYDAY is always a reliable project solution provider.
MYDAY is synonymous with quality and innovation, keeping continuous improvement of our processes and products, assuring quality control and production management.
Scott package includes
- CE (With dual channel safety relay)
- 2-door type splash guard
- Electrical cabinet air conditioner
- Auto lubrication system
Optional Accessories
- 3 & 4 Jaw chucks
- Follow & steady rests
- Boring device on cross slide
- Enclosed rear chuck guard
- Chip conveyor with oil skimmer
- Fully enclosed splash guard
- Electric 4-way toolpost (32mm sq tooling)
- Hyd. 4-way toolpost (40mm sq tooling)
- Hyd. 8 or 12-station turret (25mm sq tooling)
- Rotary type tailstock quill (5MT, A2-8)
- Hyd. tailstock quill
- High pressure coolant system 20bar
- Spindle oil chiller
Spindle Bore Options
- 104mm, A2-11, 13-1,200rpm, 4 speed ranges.
- 156mm, A2-11, 11-800rpm, 4 speed ranges.
- 230mm, A2-15, 4-600rpm, 4 speed ranges.
CNC Controller Options
- Fagor 8055i
- Fanuc 0i-TF
- Siemens 828D
Loading capacity
- 4,000kg between centres
- 5,000kg between centres with 1 x steady
- 6,000kg between centres with 2 x steady
- 500kg with only one chuck
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| MYDAY | SPB670 | SPB770 | SPB840 | |
|---|---|---|---|---|
| Swing over bed | mm | 670 | 770 | 840 |
| Swing over cross slide | mm | 380 | 480 | 550 |
| Width of bed | mm | 460 | 460 | 460 |
| Distance between centres | mm | 1,500 - 5,000 | 1,500 - 5,000 | 1,500 - 5,000 |
| Rapid travel speed (Z / X) | mm/min | 5 / 5 | 5 / 5 | 5 / 5 |
| Tailstock quill diameter | mm | 105 | 105 | 105 |
| Tailstock taper | 5MT | 5MT | 5MT | |
| Tailstock quill travel | mm | 230 | 230 | 230 |
| Spindle motor | kW | 15 | 15 | 15 |
