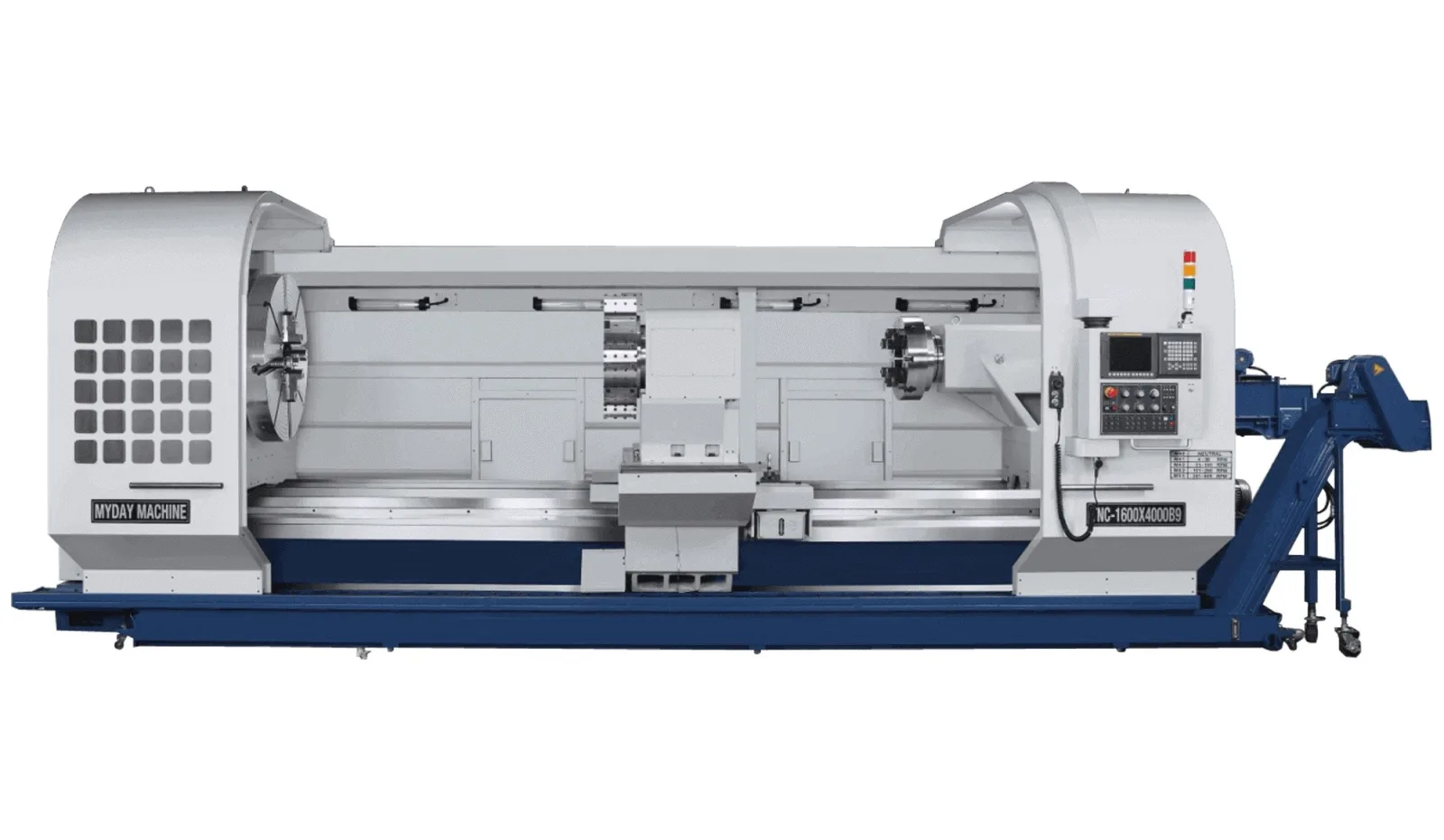

MYDAY SOH Series Heavy Duty Oil Country CNC Lathes
800mm (32") Bed width 1,200 to 1,600mm swing 156 to 535mm spindle bore options 2,000 - 10,000mm between centres
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
CNC Heavy Duty Oil Country Lathes are for the oil & gas field market and the general metal industry. It can be a big bore lathe of double chucks at both sides of the headstock, or it can have large swing for big workpiece. Applies to oil pipes, big steel rollers, large diameter flanges, long shafts of ships, etc.
MYDAY was founded in 1980 and is located in Taichung, Taiwan with a 6,000 sq. m manufacturing facility. MYDAY produces heavy duty precision lathe, oil country lathes, CNC heavy duty precision lathes, CNC screw millers and specialized lathes. MYDAY is always a reliable project solution provider.
MYDAY is synonymous with quality and innovation, keeping continuous improvement of our processes and products, assuring quality control and production management.
Scott package includes
- CE (With dual channel safety relay)
- 2-door type splash guard
- Chip conveyor
- Spindle oil chiller
- Electrical cabinet air conditioner
- Auto lubrication system
Optional Accessories
- 3 & 4 Jaw chucks
- Follow & steady rests
- Boring device on cross slide
- Enclosed rear chuck guard
- Fully enclosed splash guard
- Hyd. 4-way toolpost (50mm sq tooling)
- Hyd. 8-station turret (32mm sq tooling)
- 200mm Rotary type tailstock quill (6MT)
- 290mm Rotary type tailstock quill (7MT)
- Hyd. tailstock quill
- High pressure coolant system 20bar
Spindle Bore Options
- 156mm, A2-15, 6-800rpm, 4 speed ranges.
- 230mm, A2-15, 4-600rpm, 4 speed ranges.
- 260mm, A2-15, 4-540rpm, 4 speed ranges.
- 310mm, A2-20, 3-400rpm, 4 speed ranges.
- 360mm, A2-20, 3-360rpm, 4 speed ranges.
- 410mm, A2-28, 2-300rpm, 4 speed ranges.
- 535mm, A2-28, 2-300rpm, 4 speed ranges.
CNC Controller Options
- Fagor 8055i
- Fanuc 0i-TF
- Siemens 828D
Loading capacity
- 10 to 15 tonne between centres *
- 12 to 17 tonne between centres with 1 x steady *
- 14 to 19 tonne between centres with 2 x steady *
- 4 tonne with only one chuck
* dependant on bore & tailstock configuration
** Z axis by rack & pinion if DBC ≧ 6m
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| MYDAY | SOH1200 | SOH1400 | SOH1600 | |
|---|---|---|---|---|
| Swing over bed | mm | 1,190 | 1,385 | 1,580 |
| Swing over cross slide | mm | 740 | 940 | 1140 |
| Width of bed | mm | 800 | 800 | 800 |
| Distance between centres ** | mm | 2,000 - 10,000 | 2,000 - 10,000 | 2,000 - 10,000 |
| Rapid travel speed (Z / X) | mm/min | 5 / 5 | 5 / 5 | 5 / 5 |
| Tailstock quill diameter | mm | 200 | 200 | 200 |
| Tailstock taper | 7MT | 7MT | 7MT | |
| Tailstock quill travel | mm | 300 | 300 | 300 |
| Spindle motor | kW | 22 | 22 | 22 |
