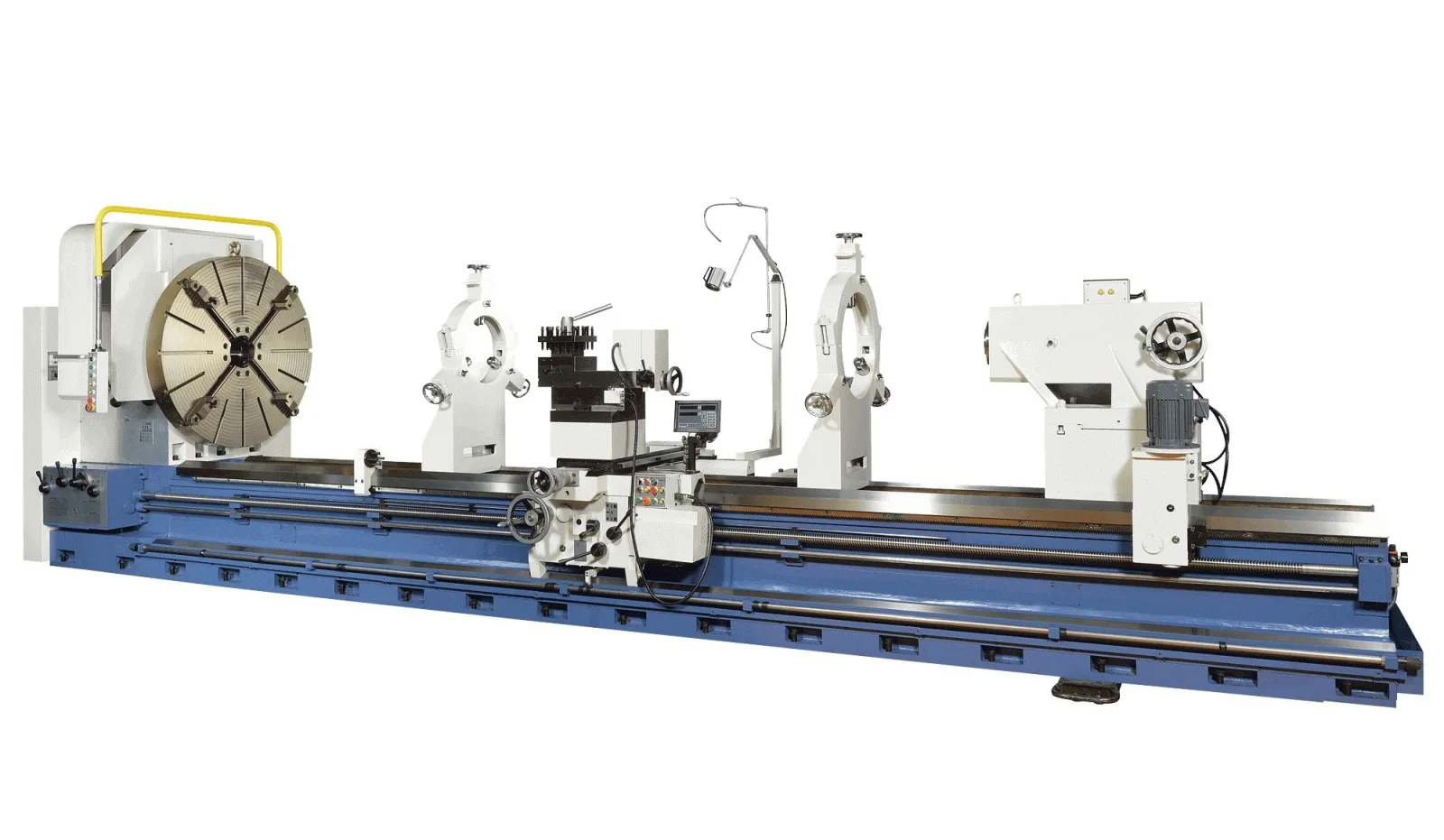

MYDAY MOH Series Heavy Duty Oil Country Lathes
800mm (32") Bed width 1,200 to 1,600mm swing 156 to 535mm spindle bore options 2,000 - 15,000mm between centres
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Oil Country Lathes are for the oil & gas field market and the general metal industry. It can be a big bore lathe of double chucks at both sides of the headstock, or it can have large swing for big workpiece. Applies to oil pipes, big steel rollers, large diameter flanges, long shafts of ships, etc.
MYDAY was founded in 1980 and is located in Taichung, Taiwan with a 6,000 sq. m manufacturing facility. MYDAY produces heavy duty precision lathe, oil country lathes, CNC heavy duty precision lathes, CNC screw millers and specialized lathes. MYDAY is always a reliable project solution provider.
MYDAY is synonymous with quality and innovation, keeping continuous improvement of our processes and products, assuring quality control and production management.
Scott package includes
- CE devices
- Leadscrew cover
- Chuck & toolpost guard
- 4-way tool post
- X & Z Axis rapid traverse
- Auto lubrication system
- Magnetic spindle brake
Spindle Bore Options
- 156mm, A2-15, 9-1,550rpm
- 230mm, A2-15, 6-400rpm
- 260mm, A2-15, 6-400rpm
- 310mm, A2-20, 5-300rpm
- 360mm, A2-20, 5-300rpm
- 410mm, A2-28, 3-230rpm
- 535mm, A2-28, 3-230rpm
Loading capacity
- 10 to 15 tonne between centres *
- 12 to 17 tonne between centres with 1 x steady *
- 14 to 19 tonne between centres with 2 x steady *
- 4 tonne with only one chuck
* dependant on bore & tailstock configuration
Optional Accessories
- Auto rapid threading device
- Digital readout system
- 3 & 4 Jaw chucks
- Quick change toolpost
- Follow & steady rests
- Boring device on cross slide
- Top slide rapid traverse
- Sliding front chuck guard
- Enclosed rear chuck guard
- Taper turning attachment
- Enclosed rear chuck guard
- Rotary type tailstock quill (6MT, A2-8)
- Hydraulic copy device
- Micrometer bed stopper
- Turret type 4 position bed stopper
- Movable rear splash guard
- Full length rear splash guard
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| MYDAY | MOH1200 | MOH1400 | MOH1600 | |
|---|---|---|---|---|
| Swing over bed | mm | 1,190 | 1,385 | 1,580 |
| Swing over cross slide | mm | 830 | 1,030 | 1,230 |
| Swing in gap | mm (DBC 2-4m only) | 1,750 | 1,950 | 2,150 |
| Width of bed | mm | 800 | 800 | 800 |
| Distance between centres | mm | 2,000 - 15,000 | 2,000 - 15,000 | 2,000 - 15,000 |
| Number of feeds | 48 | 48 | 48 | |
| Longitudinal feeds | mm/rev | 0.13 - 1.92 | 0.13 - 1.92 | 0.13 - 1.92 |
| Cross feeds | mm/rev | 0.065 - 0.96 | 0.065 - 0.96 | 0.065 - 0.96 |
| Metric thread range | mm (Kinds) | 2 - 30 (48) | 2 - 30 (48) | 2 - 30 (48) |
| Inch thread range | TPI (Kinds) | 1 - 15 (48) | 1 - 15 (48) | 1 - 15 (48) |
| Modular thread range | MP (Kinds) | 1 - 15 (32) | 1 - 15 (32) | 1 - 15 (32) |
| DP thread range | DP (Kinds) | 2 - 30 (48) | 2 - 30 (48) | 2 - 30 (48) |
| Cross slide travel | mm | 780 | 780 | 780 |
| Tailstock quill diameter | mm | 200 | 200 | 200 |
| Tailstock taper | 7MT | 7MT | 7MT | |
| Tailstock quill travel | mm | 300 | 300 | 300 |
