LCNT-0-1990
Workshop Machinery · Conventional lathes

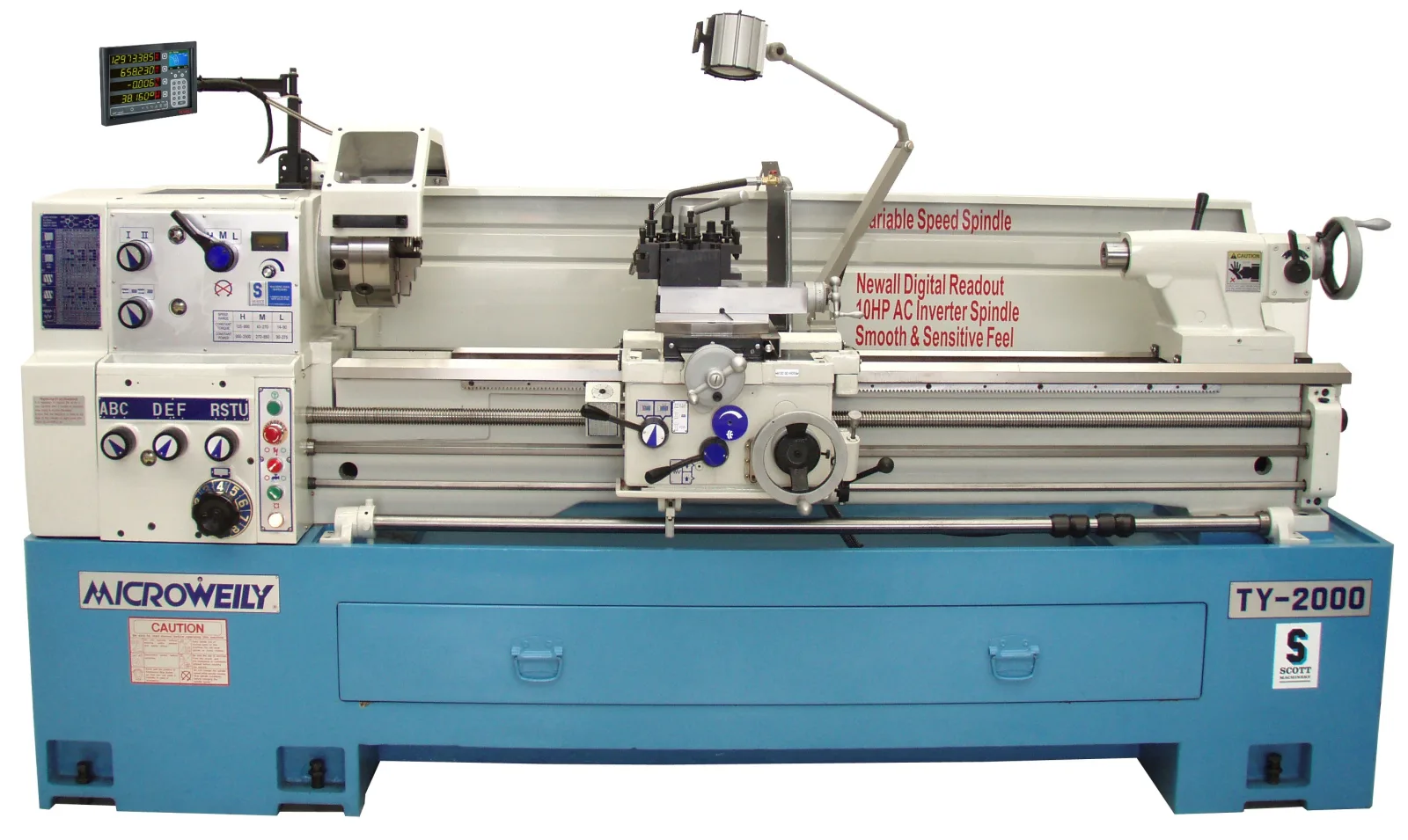

Microweily TY-2000 Variable Speed Centre Lathe
458mm swing x 1600 centres x 60mm bore
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
458mm
Distance between centres
1600mm
Spindle bore
60mm
Speed range
14 - 2,000 rpm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
458mm swing x 1600 centres x 60mm bore
Quality Taiwanese Manufacturing
- Variable Speed via Yaskawa G7 Inverter
- Digital rpm display
- Gap bed
- 3 Jaw Chuck 250mm
- 4 Jaw Chuck 305mm
- Fixed Steady
- Following Steady
- Chuck Guard with Microswitch
- Halogen lamp
- Coolant
- Right hand carriage wheel
- Chip removal from front tray
Optional accessories shown:
- Italian quick change toolpost
- Leadscrew protection
- Two speed tailstock
Other Options
- see Model TY-2500
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
458mm
Swing over cross slide
288mm
Swing in gap
640mm
Spindle bore
60mm
Distance between centres
1600mm
Number of speed ranges
3
Speed range
14 - 2,000 rpm
Tailstock Taper
4MT
Motor Power
10HP
Weight
2000 kg
Floor Space
2935 x 1077 x 1230 mm
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
