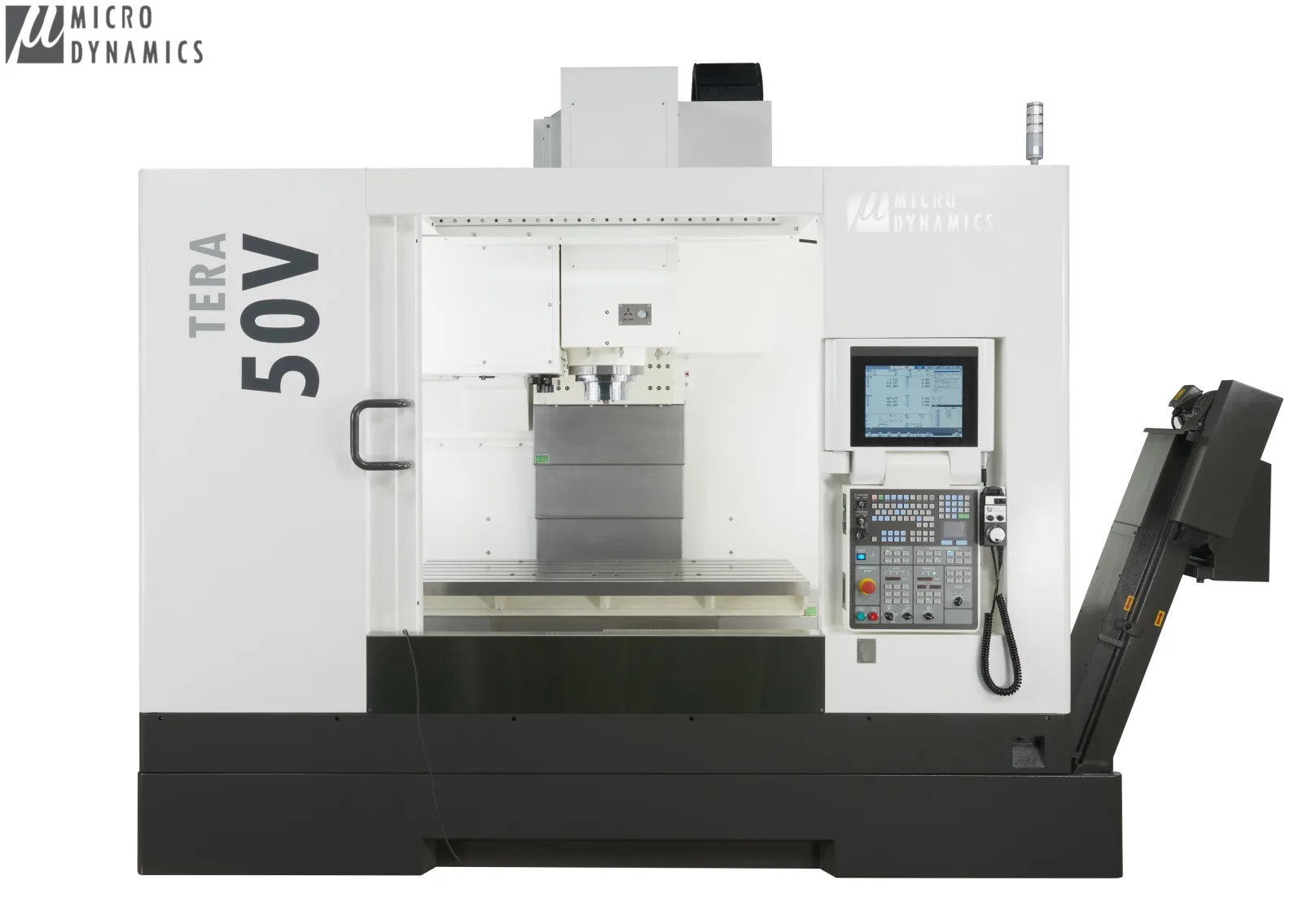

Micro Dynamics V Series Vertical Machining Centres
A wide range of C-frame Vertical Machining Centers from 760mm to 1,524mm X axis travel. 15,000rpm, 31kW built in spindle standard.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Micro Dynamics CNC machines are designed for wide range of applications. Our engineering team check every detail to offer the best solutions to all customers needs. All machines are equipped with a Powerful Spindle, Fast CNC Control and DYPEC (Thermal Compensation Technology), for High Material Removals and High Accuracy Machining. The ergonomically friendly design and the Micro Dynamics HMI software, makes MEGA and TERA series easy and comfortable to operate.
Micro Dynamics offers a wide range of C-frame Vertical Machining Centers. MEGA series is the most compact and small foot print Vertical Machining Centers. TERA series is the strongest Vertical Machining Centers.
POWERFUL interrated Micro Dynamics Built-in Spindle THERMAL COMPENSATION DYSPEC - Dynamic Predictive Error Compensation COMPACT design with small footprint COLLISION DECTION machine stops if a collision is detected in all axis FAST Mitsubishi CNC M830VW MICRO MILL G-code Generator STRONG FC300 Meehanite casting RIDGID TAP up to 6,000rpm RELIABLE higest quality meachanical and electrical components PC BASED HMI allows user friendly funtions INTERGRATED AUTOMATION EtherNet/IP networked I/O 15" TOUCHSCREEN ergonomically friendly
To Visit Micro Dynamics youtube channel
Click Here
Standard
- 15,000rpm, 31kW built in spindle
- 52m/min rapid traverse
- 1.2sec tool to tool change
- 2,700 blook look ahead
- Base wash + duel augers
- Reversable left or right scraper type chip conveyor
- 40-tool magazine (30V is 30-tool)
- Bi-Directional / Random tool selection
- JIS6339 (BT40) dual contact spindle taper
- JIS6339 pull stud
- Coolant and air gun
- Automatic power off
- CE Conformity package
- 8 M-codes
Optional
- 18,000 or 20,000rpm built in spindle
- 4th axis
- Metal coolant ring
- Spinning window
- 20, 40 or 70-Bar CTS
- Rear type chip conveyor
- Oil skimmer
- Filtermist oil mist collector
- Column riser
- 8 additional M-codes
- Chain or drum type chip conveyor
- Automatic door (pneumatic / servo)
- X/Y/Z axis linear scales
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | MEGA 30V | MEGA 40V | TERA 40V | TERA 50V | TERA 60V | |
|---|---|---|---|---|---|---|
| X axis travel | mm | 760 | 1,020 | 1,020 | 1,270 | 1,524 |
| Y axis travel | mm | 510 | 510 | 710 | 710 | 710 |
| Z axis travel | mm | 510 | 510 | 635 | 635 | 635 |
| Spindle nose to table | mm | 100 - 610 | 100 - 610 | 100 - 735 | 100 - 735 | 100 - 735 |
| Spindle centre to column | mm | 550 | 550 | 733.5 | 733.5 | 733.5 |
| Table size | mm | 860 x 500 | 1,120 x 500 | 1,120 x 700 | 1,420 x 700 | 1,724 x 700 |
| Max. table load | kg | 800 | 1,000 | 1,500 | 1,500 | 2,000 |
| Table height | mm | 840 | 840 | 900 | 900 | 900 |
| Spindle taper | BT40 | BT40 | BT40 | BT40 | BT40 | |
| I.D. of spindle bearing | mm | 70 | 70 | 70 | 70 | 70 |
| Spindle speed | rpm | 50 - 15,000 | 50 - 15,000 | 50 - 15,000 | 50 - 15,000 | 50 - 15,000 |
| Max. power | kW | 31 | 31 | 31 | 31 | 31 |
| Max. cutting torque | Nm | 141 | 141 | 141 | 141 | 141 |
| Rapid feedrate (X/Y/Z) | m/min | 52/52/48 | 52/52/48 | 52/52/48 | 52/52/48 | 52/52/48 |
| Cutting feedrate | m/min | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 | 0 - 20 |
| ATC Mag. capacity | 30 | 40 | 40 | 40 | 40 | |
| Max. tool diameter x length | mm | 75 x 230 | 75 x 300 | 75 x 260 | 75 x 300 | 75 x 300 |
| Diameter without adjacent tool | mm | 150 | 150 | 150 | 150 | 150 |
| Max. tool weight | kg | 7 | 7 | 7 | 7 | 7 |
| Coolant tank capacity | L | 250 | 300 | 300 | 400 | 400 |
| Foot print (W x D) | mm | 2,389 x 2,245 | 3,044 x 2,293 | 3,137 x 2,478 | 3,606 x 2,478 | 4,322 x 2,478 |
| Machine height | mm | 2,823 | 2,823 | 2,953 | 2,953 | 2,953 |
| Positioning accuracy | mm | 0.005(VDI 3441) | 0.005(VDI 3441) | 0.005(VDI 3441) | 0.005(VDI 3441) | 0.005(VDI 3441) |
| Reapeatability accuracy | mm | 0.0025 | 0.0025 | 0.0025 | 0.0025 | 0.0025 |
| Net weight | kg | 4,890 | 5,610 | 8,040 | 8,600 | 9,170 |
