METALEX TB-12 Swaging Jenny
1 / 7
METALEX logo ROLL-0-0013

Sheet Metal & Fabrication · Rolling & forming

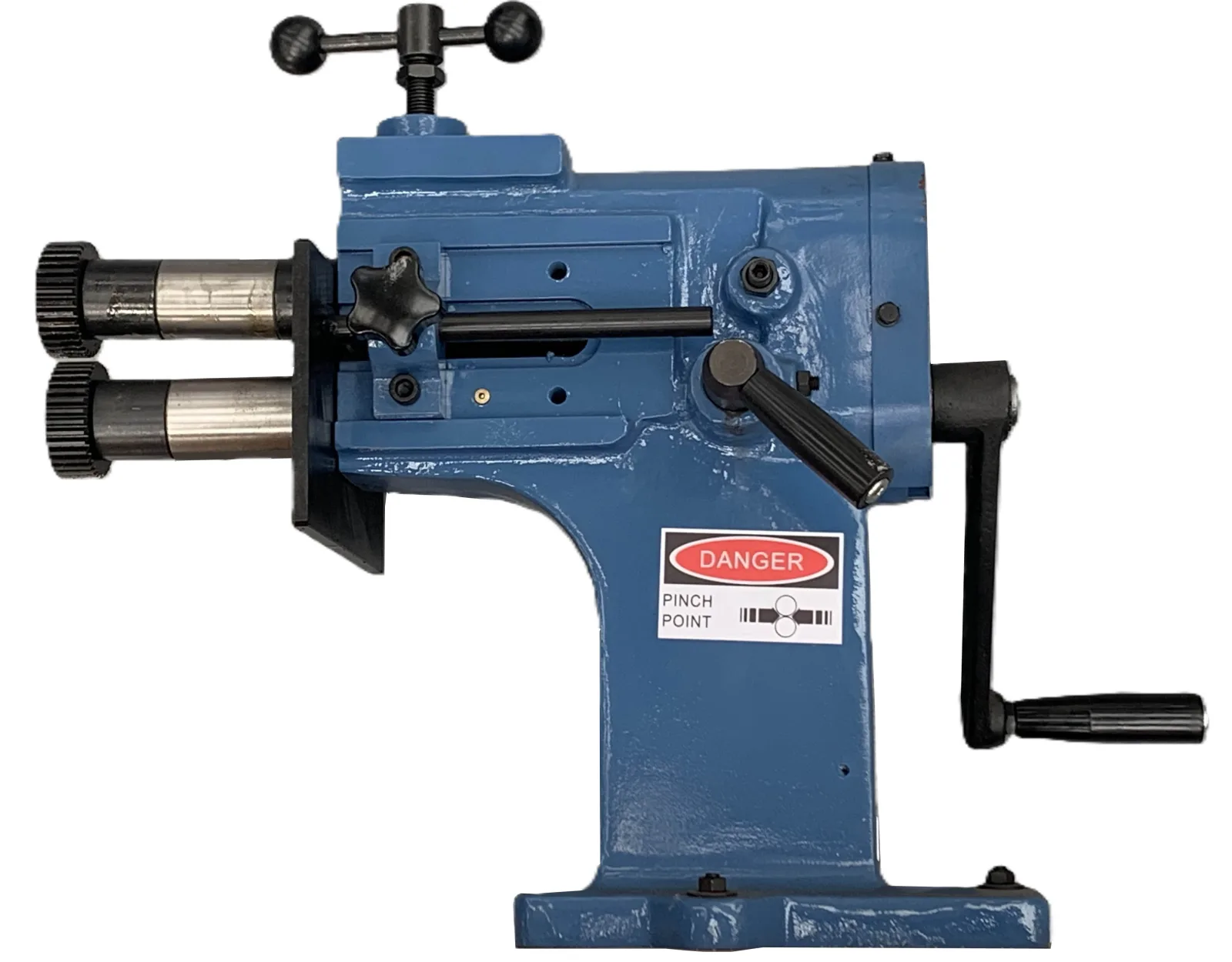

METALEX TB-12 Swaging Jenny

Bench mount 1.2mm capacity

On Special $880 + GST Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 1.2mm Mild steel
Roll diameter 62mm
Throat maximum 280mm
Shaft diameters 26mm diameter
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex TB-1.2mm swaging jenny is a versatile hand operated forming machine designed for shaping and swaging sheet metal up to 1.2 mm thick. Ideal for HVAC, automotive restoration, and general sheet metal work, the TB-1.2 allows precise forming of edges, beads, flanges, and grooves with minimal effort. Its solid cast construction and smooth crank operation ensure durability and control, while interchangeable rolls provide flexibility for a variety of shaping tasks.

Features:

  • Suitable for swaging and shaping up to 1.2 mm mild steel
  • Deep 280mm throat
  • Hand operated for precise manual control
  • Heavy duty cast construction for stability and long service life
  • Supplied with a set of interchangeable forming rolls
  • Ideal for beading, flanging, and edge forming
  • Compact footprint easy to bench mount
  • Smooth crank handle operation
  • Perfect for HVAC, panel repair, and general sheet metal fabrication

Standard Accessories:

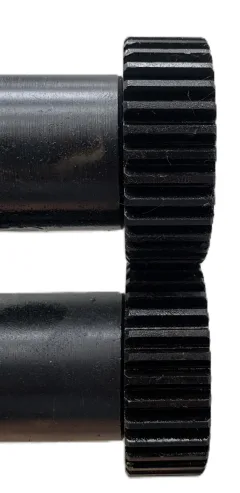

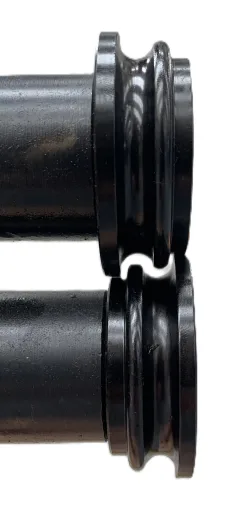

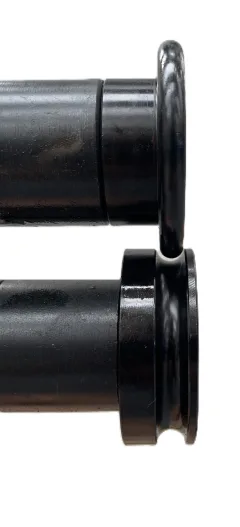

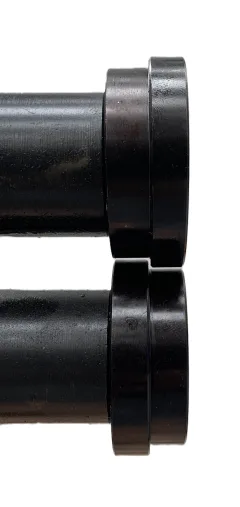

  • 4 sets of rolls including crimping rolls

Optional:

  • Other former sets available

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 1.2mm Mild steel
Roll diameter 62mm
Throat maximum 280mm
Shaft diameters 26mm diameter
Weight 48kg
Shipping 600mm x 250mm x 500mm (55kg)
Shipping 600mm x 250mm x 500mm (55kg)
