METALEX PBB1050x1.5 Folder

Box & Pan Type Hand Brake 1050mm x 1.5mm German styling Removeable top & bottom tool segments

$4,250.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 1.5mm
Width 1,050mm
Weight 285kg
Shipping 1500mm x 780mm x 1300mm (320kg)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

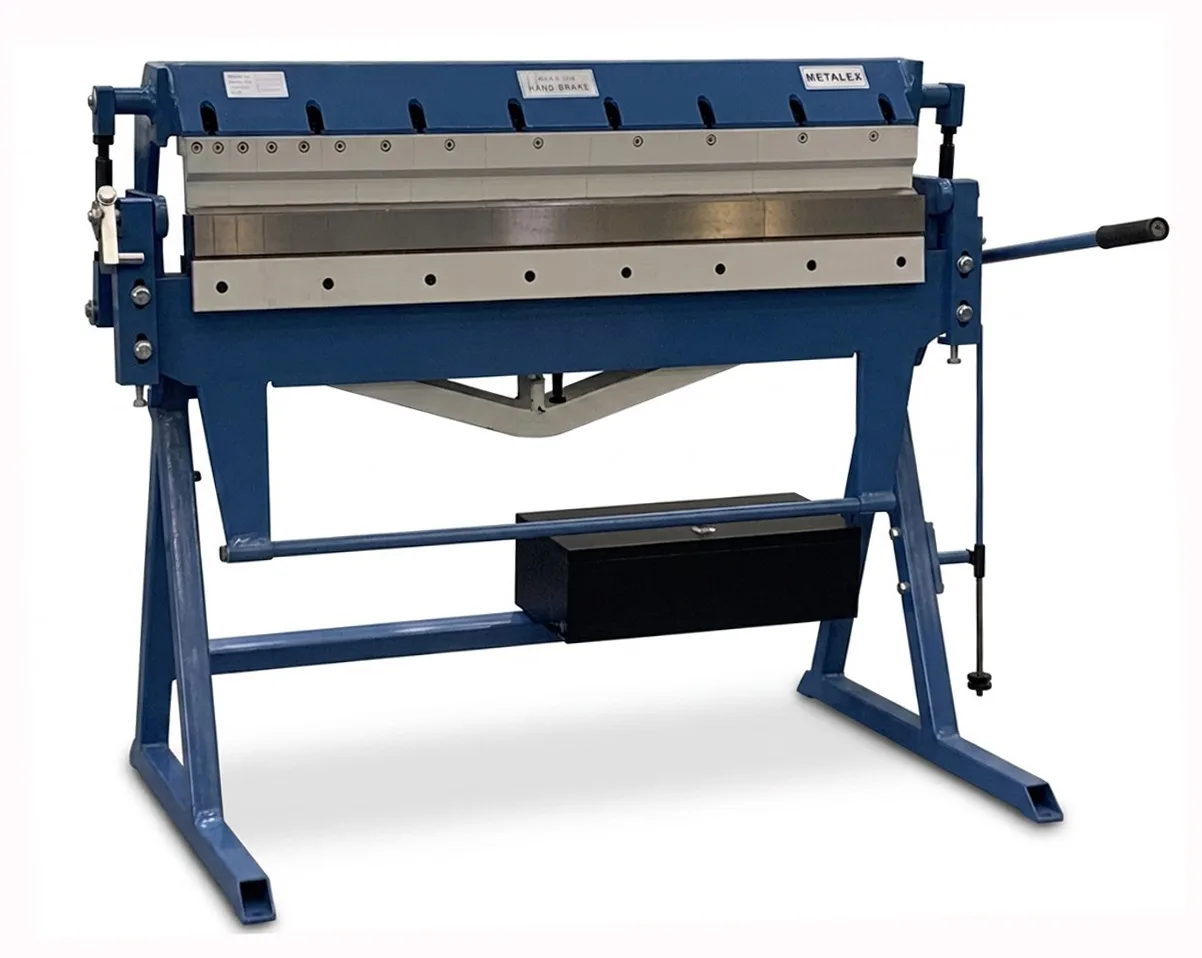

The Metalex PBB1050 x 1.5 Box & Pan Folder with "German style" segmented Tooling features a 1,050mm bending length and 1.5mm mild steel capacity. It is equipped with hardened & ground, precision, "German style" segmented clamping fingers for flexible, distortion free box, pan, and Z-bends. Its robust steel frame and precision ground tooling deliver clean, repeatable bends ideal for HVAC, ducting, and custom sheet metal work. Perfect for workshops needing versatile, high quality folding in a compact design

Features:

  • 1,050 mm bending length with robust support
  • 1.5 mm mild steel capacity for general sheet metal work

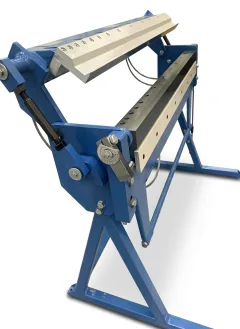

  • Top beam can tilt right back
  • German style segmented top and bottom tooling with clamping fingers for maximum flexibility in box/pan and Z‑bend operations
  • Manual treadle style or lever clamping for safe, quick material engagement
  • Heavy duty welded steel frame designed for long term workshop use
  • Hardened steel tooling, precision-ground and numbered for easy configuration
  • 90 degree to 150 degere bending angle capability, depending on return height and material thickness
  • Maximum opening 160mm

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 1.5mm
Width 1,050mm
Weight 285kg
Shipping 1500mm x 780mm x 1300mm (320kg)
