METALEX MY22 Tube Bender

6 round tube formers to 7/8 inch OD. 2 square tube formers to 1 inch OD.

$395.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity (Wall thickness) 1.2mm
Round tube formers 3/8", 1/2", 9/16", 5/8", 3/4", 7/8"
Square tube formers 3/4", 1"
Weight 27kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

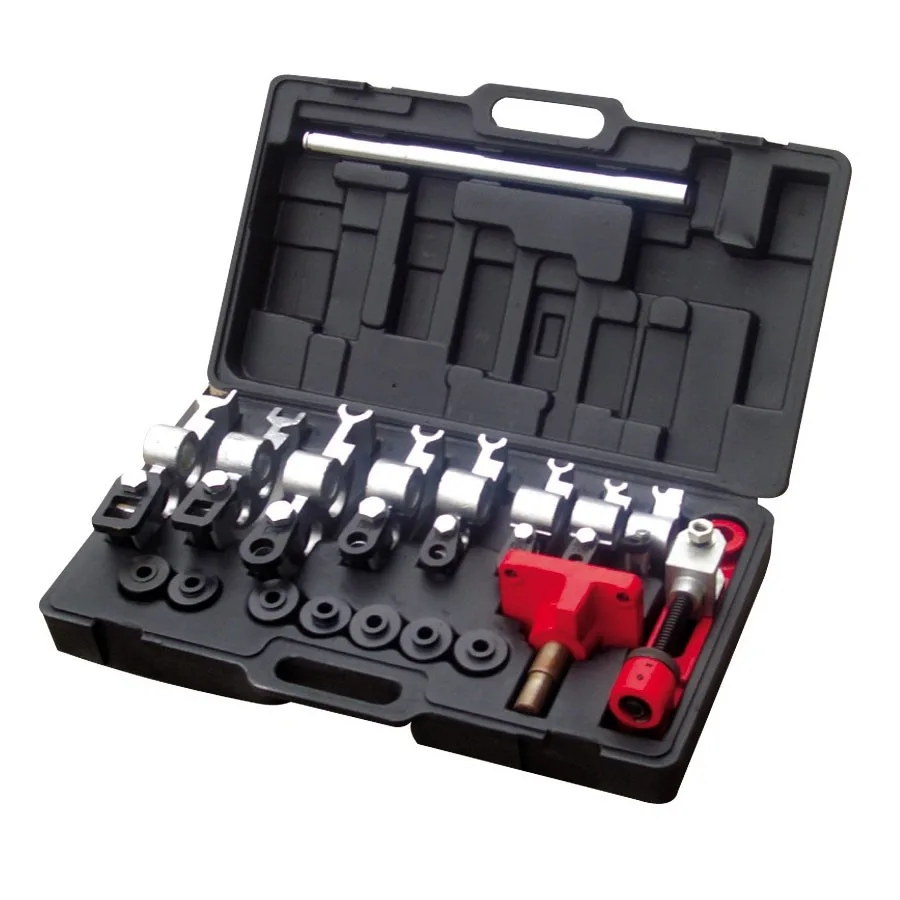

The Metalex MY22 tube bender is an economical, portable tube bender designed for small diameter tubing up to 1.2 mm wall thickness. Compact and easy to transport, it's ideal for on site jobs or light workshop use. This versatile bender offers a maximum bending angle of 180 degrees and comes with a comprehensive set of formers: six round tube sizes (3/8", 1/2", 9/16", 5/8", 3/4", and 7/8") plus two square tube formers (3/4" and 1"). All components are neatly stored in a plastic moulded carry case for convenient storage and transport.

Features:

  • Portable, economical design for easy transport and use
  • Suitable for tubes up to 1.2 mm wall thickness
  • Maximum bending angle of 180 degrees
  • Includes 6 round tube formers: 3/8", 1/2", 9/16", 5/8", 3/4", 7/8"
  • Includes 2 square tube formers: 3/4", 1"
  • Supplied with a plastic moulded carry case for convenient storage

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity (Wall thickness) 1.2mm
Round tube formers 3/8", 1/2", 9/16", 5/8", 3/4", 7/8"
Square tube formers 3/4", 1"
Weight 27kg
Shipping 650mm x 400mm x 175mm (28kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
