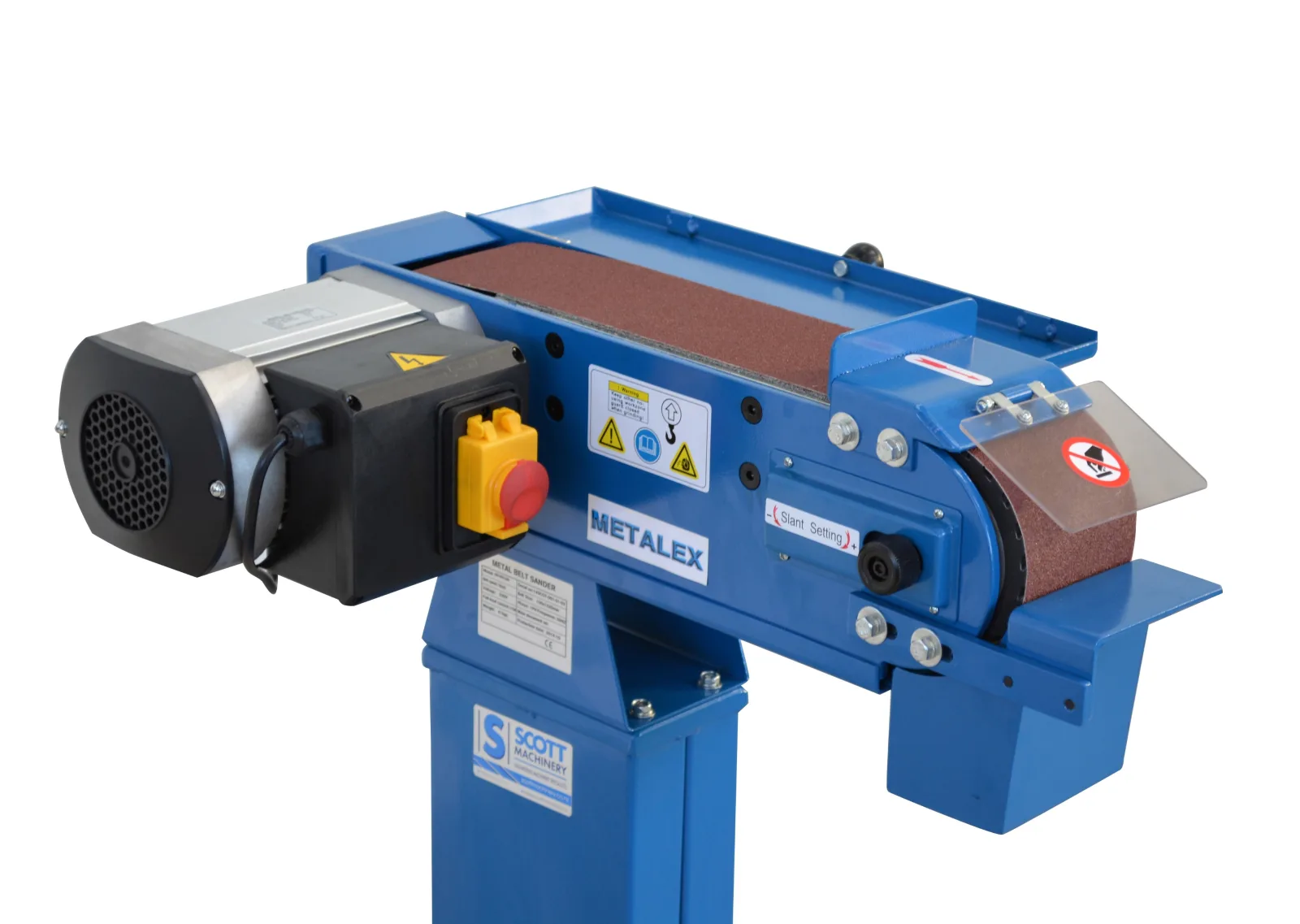

Metalex BS100x1220 Belt Linisher

2hp single phase linisher

Bench mount $760 + GST, Floor mount $820 + GST Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Belt size 100mm x 1220mm
Workable top platen area 100 x 350mm
Base size W x D 380mm x 430mm
Belt speed 19m/second
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex BS100 x 1220 is a versatile belt linisher designed for general purpose metal grinding, finishing, and deburring. Powered by a reliable 2HP single phase motor, it delivers smooth, consistent performance for workshop or light industrial use. Available in both floor mounted and bench mounted configurations, the BS100 offers flexibility to suit your workspace. With a 100mm wide x 1220mm long belt, adjustable work rest, and solid construction, it's ideal for a range of fabrication and maintenance tasks.

Features

  • 2 HP single phase motor which is both powerful and workshop friendly
  • 100 mm x 1220 mm belt size, ideal for general linishing and finishing
  • Available in floor mount or bench mount configurations
  • Adjustable work rest for precise positioning and control
  • Robust steel construction for stability and long service life
  • Smooth belt tracking system with easy adjustment
  • Suitable for metal grinding, deburring, and surface prep
  • Compact footprint ideal for workshops and maintenance areas

Optional:

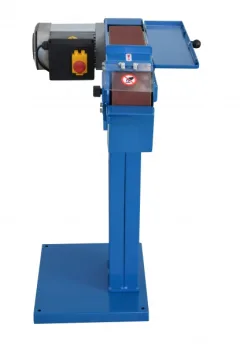

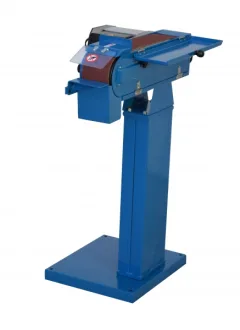

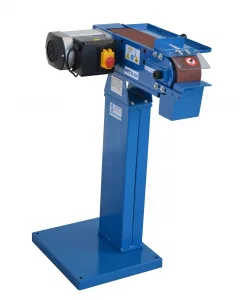

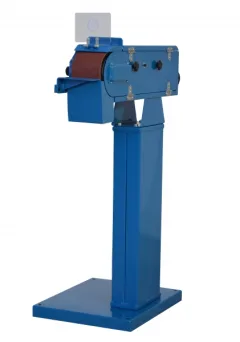

  • Floor stand (as shown in images)

Safety features:

  • Latching emergency stop
  • Adjustable work support
  • Clear safety shield
  • Well guarded

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Belt size 100mm x 1220mm
Workable top platen area 100 x 350mm
Base size W x D 380mm x 430mm
Belt speed 19m/second
Motor power 1500w 230v
Machine nett weight incl floor stand 50 kg
Floor space W x D x H 400mm x 750mm x 960mm
Packaged dimensions : Machine 620mm x 400mm x 345mm 44 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Metalex BS100x1220
