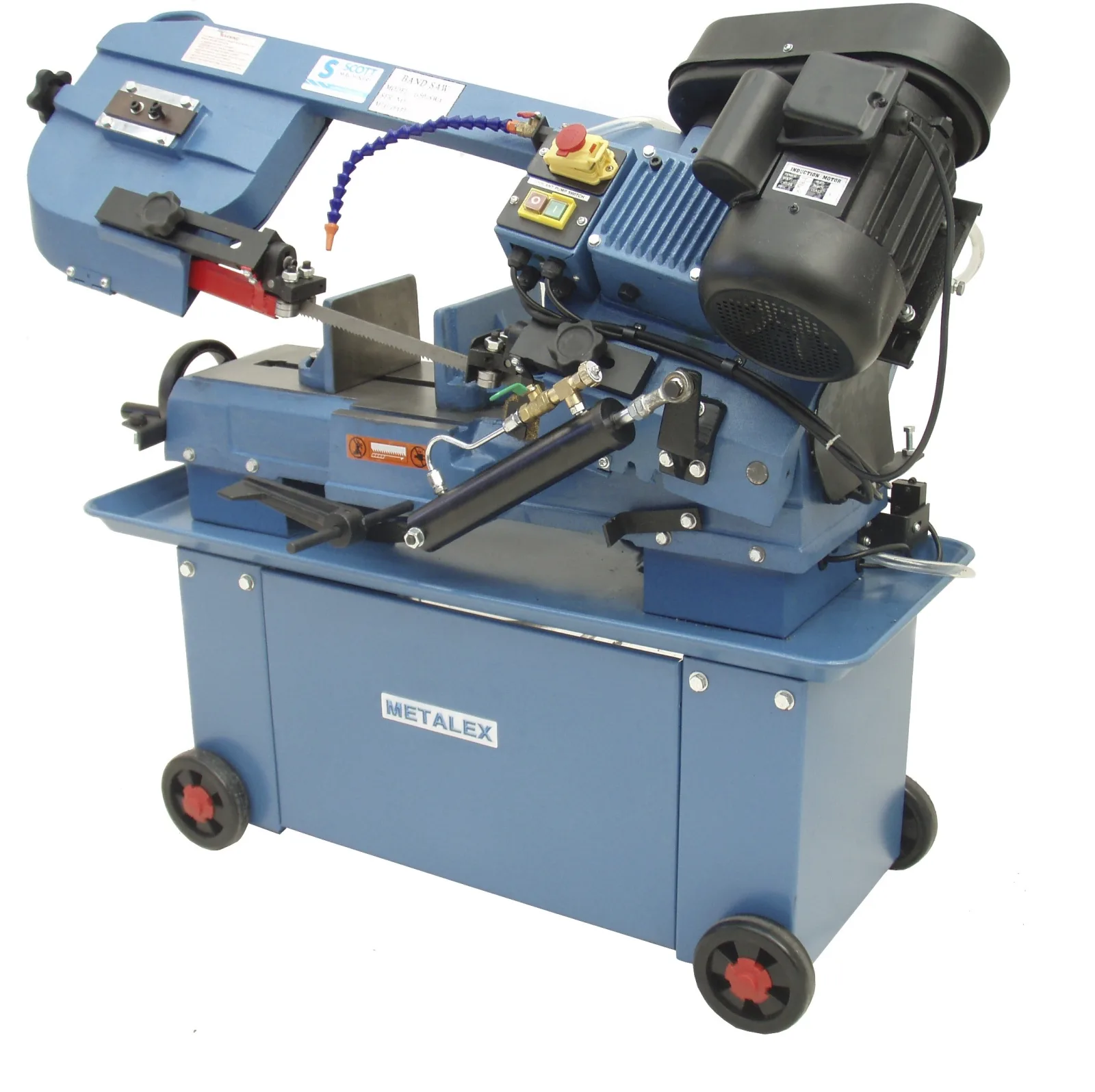

Metalex BS-712N Manual Bandsaw

Name: Metalex BS-712N Manual Bandsaw – 7in x 12in capacity
Brand: Metalex
SKU: SAWB-0-0711

Horizontal Bandsaw 7" x 12" 20mm blade

$1,555.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade size 2360 x 20mm

Blade speeds 34, 41, 59, 98 m/min

Motor 750W (1hp) Single phase

Weight 140 kg

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex BS-712N is a robust, manually operated bandsaw designed for accurate and efficient cutting of solid bar, tube, and profiles. With a 178 mm round capacity and a swivel vice for mitre cuts up to 45 degrees, this versatile saw is ideal for fabrication, maintenance, and general engineering applications. Built on a rigid cast base with adjustable blade guides, coolant system, and a dependable 4 speed pulley drive, the BS-712N offers smooth, consistent performance across a range of materials including steel, stainless, and non ferrous metals.

Features

178 mm round capacity at 90 degrees
Pivoting vice for mitre cuts up to 45 degree
4 speed V belt drive for cutting various materials
Integrated coolant system for extended blade life and cleaner cuts
Wire blade cleaning wheel brush
Manual feed with automatic shut off at end of cut
Adjustable blade guides for increased cutting accuracy
Rigid cast iron base for stability and durability
Easily adjustable vice with quick release lever
Accepts standard 20 mm x 0.9 mm x 2,360 mm bandsaw blades
Suitable for cutting solid bar, pipe, and profiles in steel, stainless, and aluminium

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Metalex BS-712N
METALEX	BS-712N
Capacity	90deg	45deg
Round section	180mm	110mm
Rectangular section	180 x 300mm	110 x 180mm
Blade size	2360 x 20mm
Blade speeds	34, 41, 59, 98 m/min
Motor	750W (1hp) Single phase
Weight	140 kg
Shipping dimensions	1260mm x 460mm x 1080mm (165kg)
