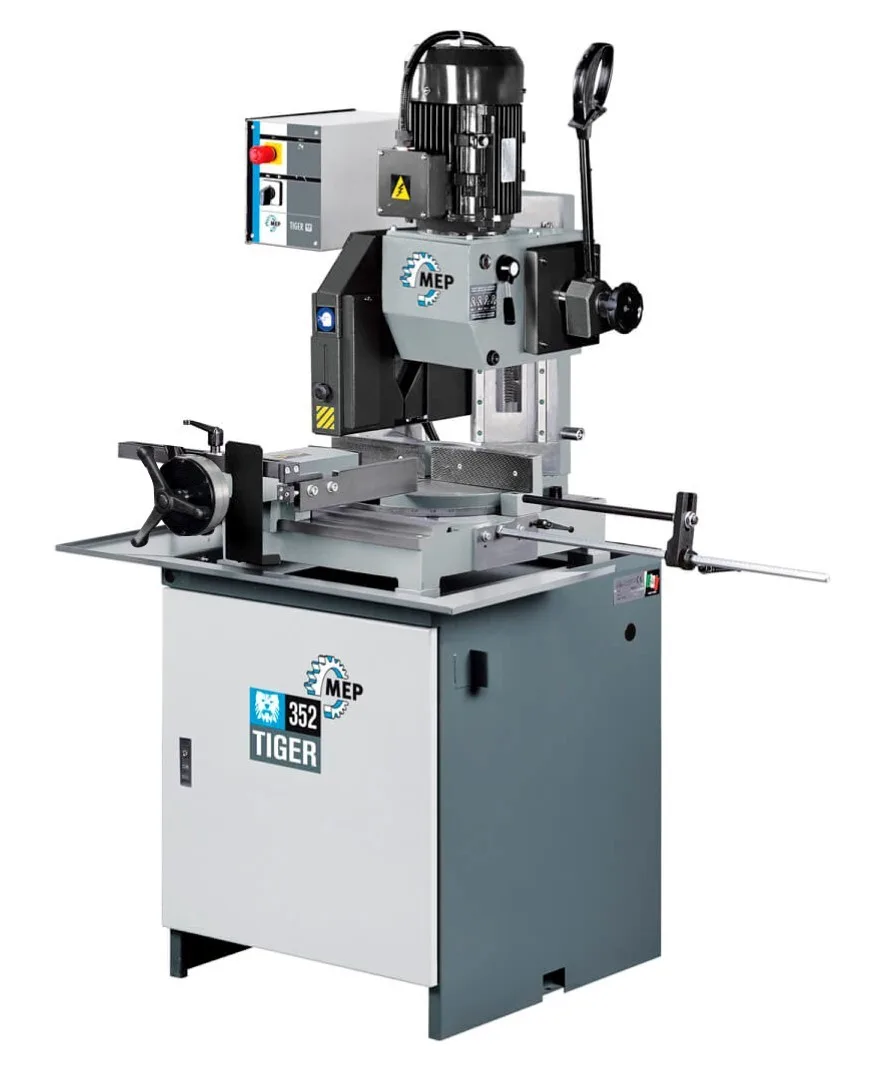

MEP Tiger 352 MA Circular Cold Saw
Horizontal mitre cutting to 60 degrees 115mm round,
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
-Product Description TIGER 352 manual vertical sawing machine to cut from 60deg left to 45deg right, with HSS blade. The vice on the TIGER 352 MA (pneumatic vice) opens and closes by means of a manually operated valve (or by means of a foot pedal which is instead optional).
Features: Quality Italian manufactured Sawing head movement on double linear guides with preloaded slides with recirculating ball screws. Electrical panel (wiring totally identifiable, main lockable isolation switch, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device 24v Low voltage IP55 control handle. Rotating table on a centre pin with axial bearing which allows higher precision on the cutting angle set. Double set of gears to obtain a high performance. Four blade speeds achieved via high/low gearbox & high/low motor speed switch 15/30/45/90 rpm making it suitable for stainless steel as well as mild steels Vice with anti burr device with double clamping of the piece. Adjustable rod measure stop to make cuts of the same length with measured steel rod. Stock support arm with roller pre-disposed to mount loading table. Steel base with chip drawer and removable coolant tray. Electrical pump for the blade lubrication and cooling. Comes complete with Stark HSS blade 350 x 32 x 2.5mm
Optional:
- Loading tables
- Unloading tables
- Foot pedal option for 352MA
- 30/60/90/180 rpm version
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| MEP | Tiger | 352 MA | |
|---|---|---|---|
| Capacity | Striaght | +/-45deg | +60deg |
| Round section | 115mm | 95mm | 90mm |
| Square section | 95mm | 95mm | 90mm |
| Square solid | 90mm | 64mm | 45mm |
| Rectangular section | 180x95mm | 125x95mm | 90x90mm |
| Blade size | 350x32x2.5mm | ||
| Blade speed | 15/30/45/90 rpm | (30/30/90/180 rpm optional) | |
| Motor power | 1.8/2.5kW 415V 3 Ph | ||
| Floor size | 1050x960 | ||
| Weight | 380kg | ||
| Shipping | 1.72m3 400kg |
