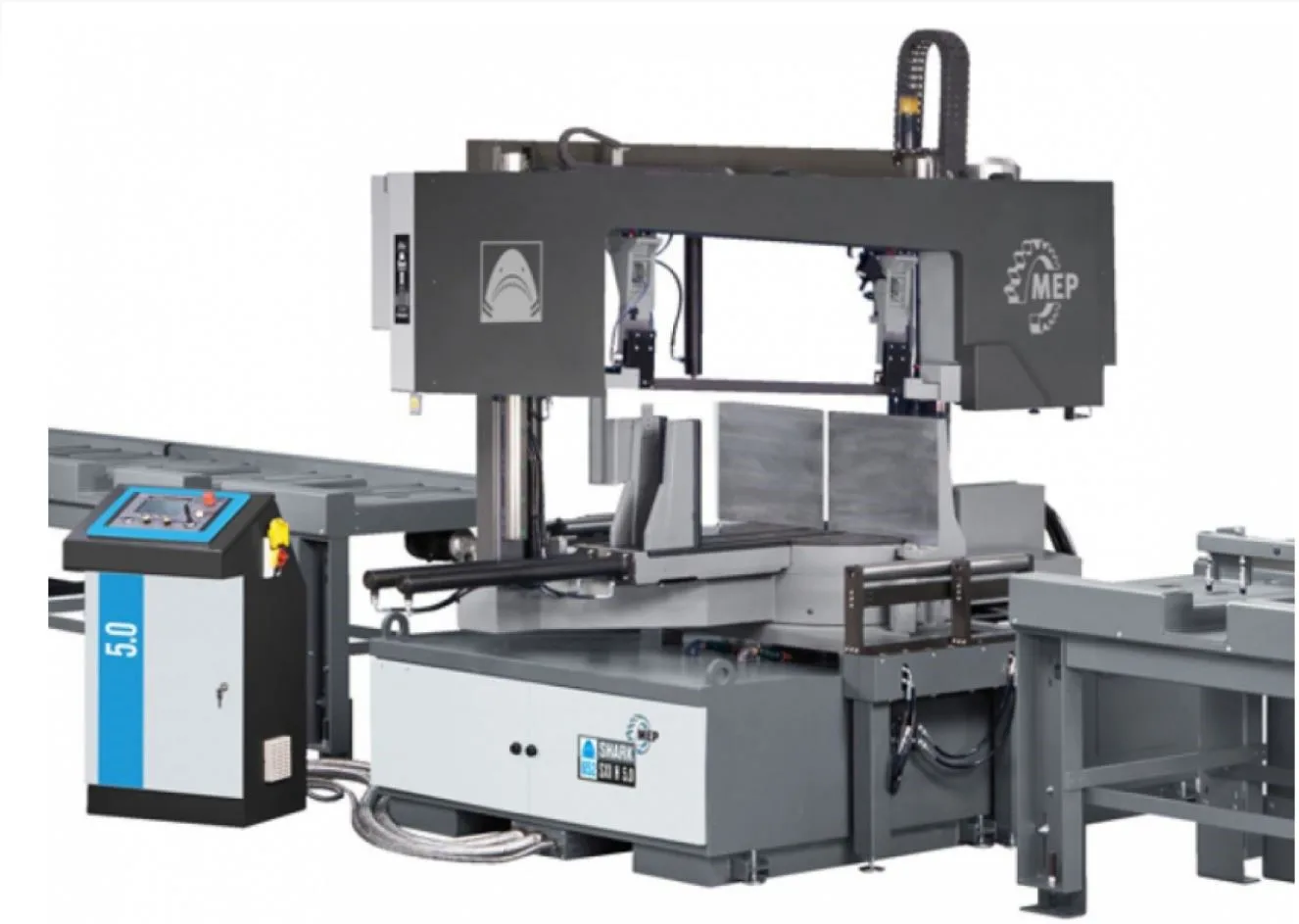

MEP Shark 652 SXI H 5.0 Semi Automatic Bandsaw
MEP BANDSAW SHARK 652 SXI H 5.0
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The MEP Shark 652 SXI H 5.0Seni-automatic electro-hydraulic band sawing machine. 6700 x 41 x 1.3mm band and 9.2Kw motor, to cut pipes, profiles and beams up to 650 x 450mm at 90 degrees. Extremely versatile machine, for cuts between 60deg left and 60deg right. Machine with controlled single axis microprocessor with the latest generation of controllers for semi-automatic sawing machines designed by MEP. Saw Head on linear guides with preload ball screw slides, powered by two hydraulic cylinders, 3 degree canted saw head suitable to cut the horizontal sides of bars and bundles.
Features The MEP Shark 652 SXI H 5.0Band saw has the excellent inherent design. Quality Italian Manufacturing Console with all centralized controls Low voltage soft keyboard, in polyester, with thermo-shaped buttons, with tactile feeling and sound signal when operating. Latest generation hydraulic control unit, with high efficiency and low energy consumption. The vector inverter for infinite variable blade rotation speed from 15 to 150 m/min allows to adjust the saw blade rotation speed according to the type of material. The automatic setting of the saw head upper position by means of a laser projector reduces programming time. The automatic alignment of the front blade guide head according to the dimension of the material to cut reduces setting time of the sawing machine. The hydraulic clamping system is equipped with two independent vices on the left and on the right of the saw blade, thus allowing to safely execute precise and burr-free angle cuts. The coolant flood underneath the cutting table avoids the accumulation of chips and downtimes during the chip removal. The electromechanical servo system for the dynamic blade tensioning allows its continuous self-adjustment, thus ensuring greater cutting precision and longer blade life. Blade size 6700 x 41 x 1.3mm Blade speed range 15 - 115 m/min Motor 9.2kW, 3 Phase Weight 3300 kg Floor space 3400 x 3300mm Shipping size 16.8m3, 3400kg
Optional
- Saw Head Automatic Mitering (cutting angle programmeing from the control panel with hydraulic locking of the saw head, the cutting angle is reached by means of rack and chain transmission.
- Left and right hydraulic pop-up rollers, lifts the bar from the working surface to avoid any kind of contact with the material during loading and unloading.
- Spray mist lubrication system.
- Loading Tables
- Unloading Tables
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Capacity | Straight | +45deg | -45 | +60 | -60 |
|---|---|---|---|---|---|
| Round | 450mm | 400mm | 320mm | 250mm | 250mm |
| Square | 400mm | 400mm | 400mm | 250mm | 250mm |
| Rectangular | 650x450mm | 400x45mm | 400x450mm | 250mmx450mm | 250x450mm |
