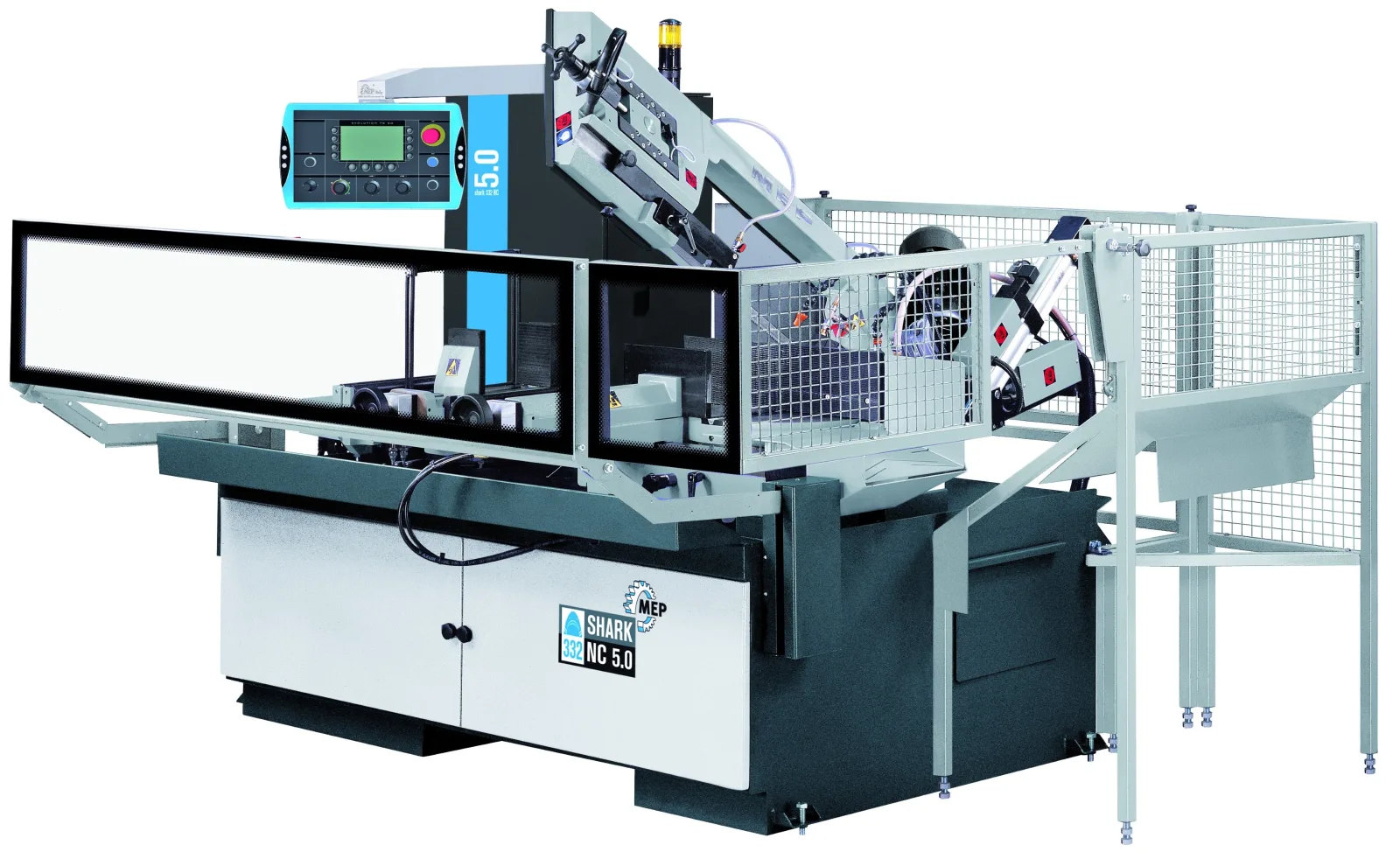

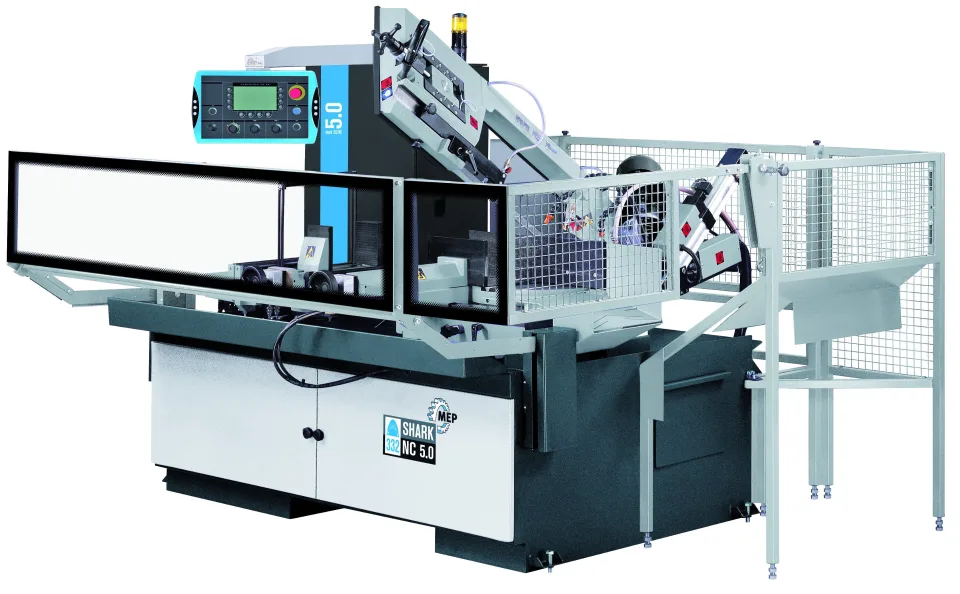

MEP Shark 332-1 NC 5.0 Automatic Bandsaw

Product overview

About this machine.

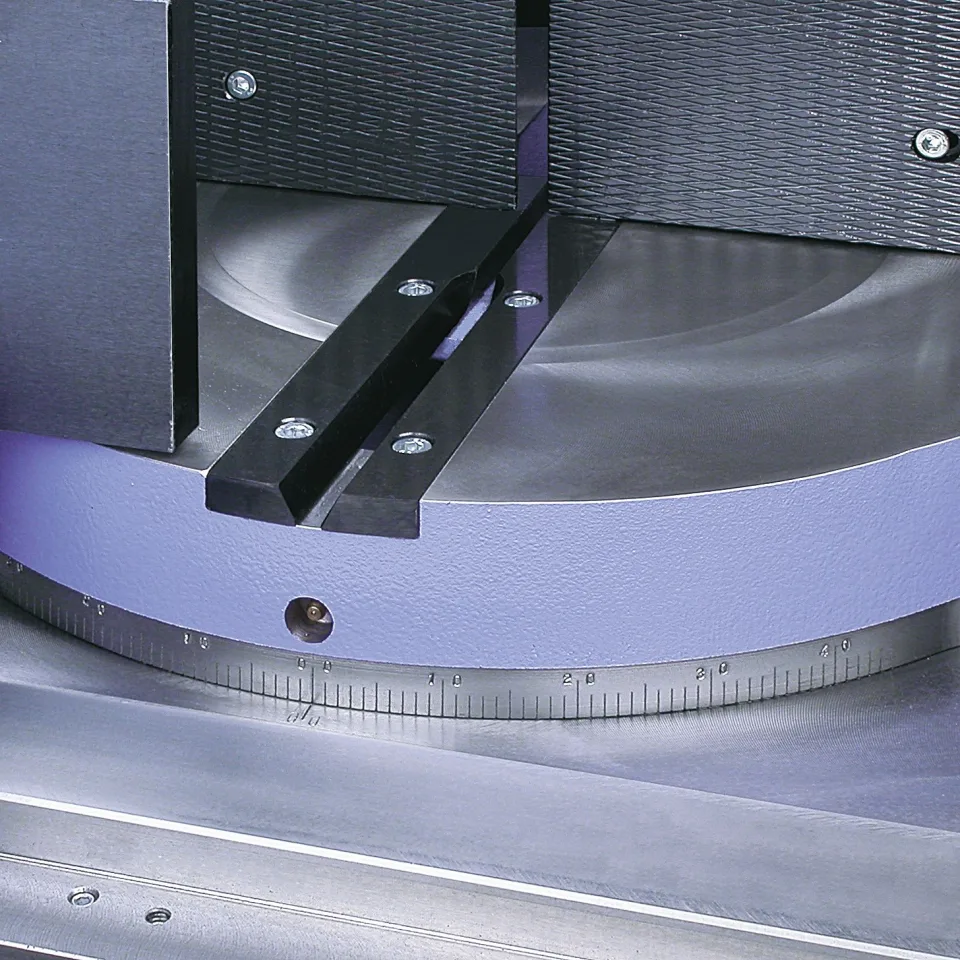

SHARK 332-1 NC 5.0, electrohydraulic band sawing machine with multi-microprocessor which can operate in automatic, semi-automatic, semi-automatic/dynamic and manual mode. Automatic cycle (to cut from 0deg to 60deg left) Semi-automatic, semi-automatic/dynamic and manual cycle (for cuts from 45deg right to 60deg left). CNC machine with a new controller : MEP 50 with Windows based. This new PLC has been specifically designed by MEP for the automation of its range of products.

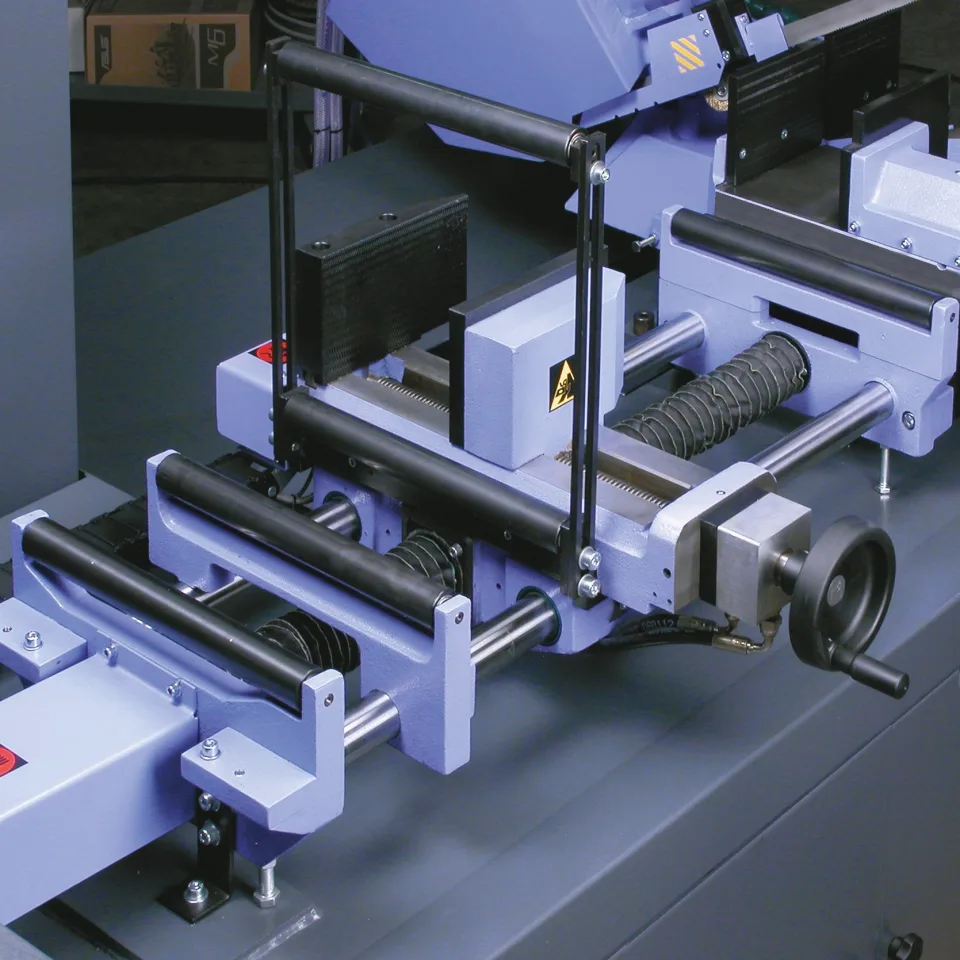

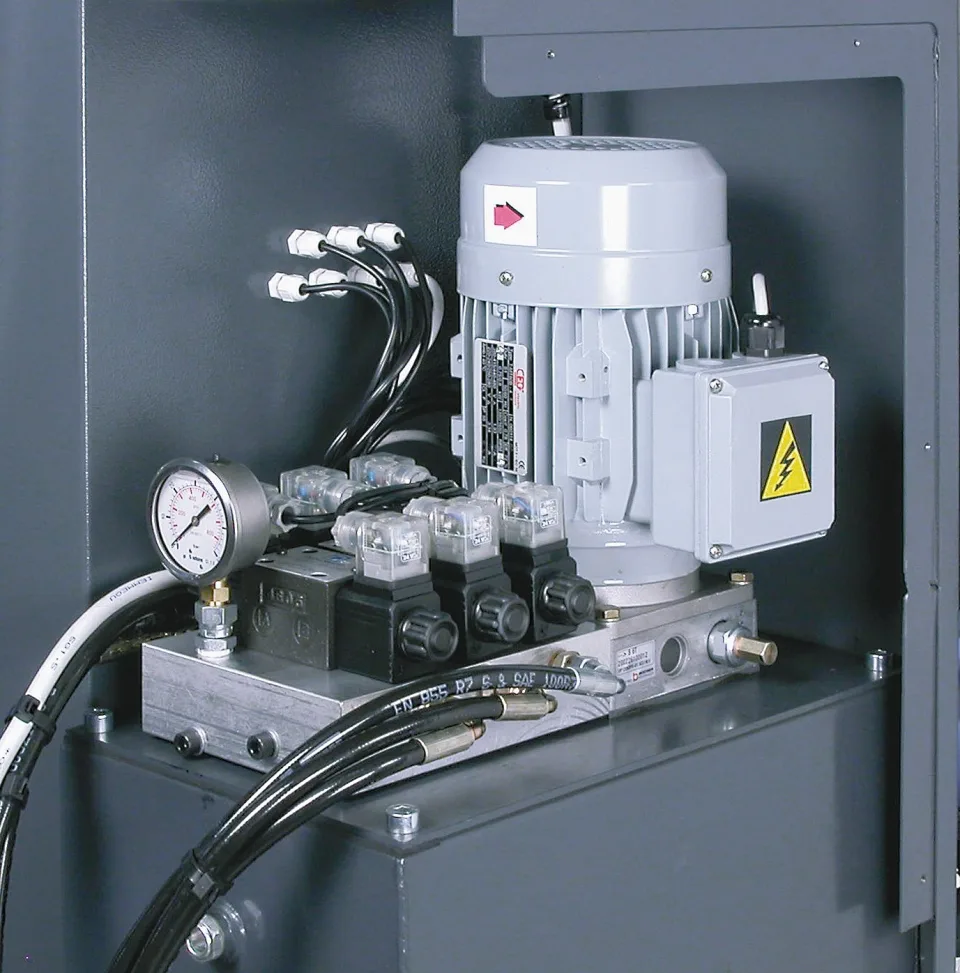

Features: Quality Italian manufactured 7" touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive, it guarantees a reliable use and it controls all cutting parameters in real time Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. Visualization and registration of alarms and events with the possibility to visualize the story of occurred events. Electronic inverter for the continuous adjustment of the band speed from 15 to 100 m/min. Latest generation hydraulic control unit, with high efficiency and low energy consumption. Bar feeder with recirculating balls screw/nut and stepper motor (feed in length in one stroke 600mm, that can be repeated in order to cut any length). Cutting head and feeding vice positioning with joystick Automatic acquisition of the actual starting point of the cut. Electronic transducer to visualize band tensioning. Automatic adaptive shearing stress control system with servovalve mounted directly on the cylinder. Coolant tank inside the steel base with two electric pumps so as to lube-refrigerate band. The drawer to collect chips can be replaced with a motorized chip evacuator (see optionals). Preset to be equipped with the spray mist system (OPTIONAL), as well as with the standard-delivered traditional lubrication with emulsible oil. Wire chip brush for band cleaning. Bi-metal band for solids and sections. Service keys and instructions manual for maintenance and spare parts list.
