WEB-KOJEX PULLSTUDS
Tooling, Accessories & Consumables · Lathe & milling tooling

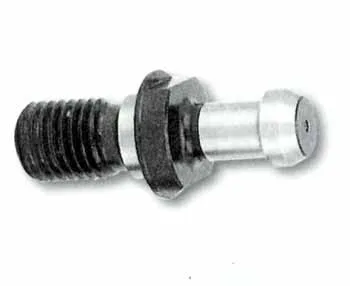

MAS BT Pullstuds
for CNC Machine Tooling
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
for CNC Machine Tooling
for CNC Machine Tooling using auto tool changer
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Taper | Type | Angle | Price Excl GST |
|---|---|---|---|---|
| P30T-1 | BT30 | 45 degrees | $22.00 | |
| P30T-2 | BT30 | 60 degrees | POA | |
| P40T-1 | BT40 | 45 degrees | $29.00 | |
| P40T-1H | BT40 | Through coolant | 45 degrees | $32.00 |
| P40T-2 | BT40 | 60 degrees | POA | |
| P40T-2H | BT40 | Through coolant | 60 degrees | POA |
| P40T-3 | BT40 | 90 degrees | POA | |
| P40T-3H | BT40 | Through coolant | 90 degrees | POA |
| PYN40 | BT40 | Mazak | 45 degrees | POA |
| 40PH | BT40 | JIS6339-89 P323-1 - Through coolant | 75 degrees | $32.00 |
| PYN50 | BT50 | Mazak | 45 degrees | POA |
| 50PH | BT50 | JIS6339 | 75 degrees | $34.00 |
| P50T-1 | BT50 | 45 degrees | POA | |
| P50T-1H | BT50 | Through coolant | 45 degrees | $34.00 |
| P50T-2 | BT50 | 60 degrees | $34.00 | |
| P50T-2H | BT50 | Through coolant | 60 degrees | POA |
| P50T-3 | BT50 | 90 degrees | POA | |
| P50T-3H | BT50 | Through coolant | 90 degrees | POA |
| DIN69872-50 | BT50 | Through coolant | 75 degrees | $34.00 |
