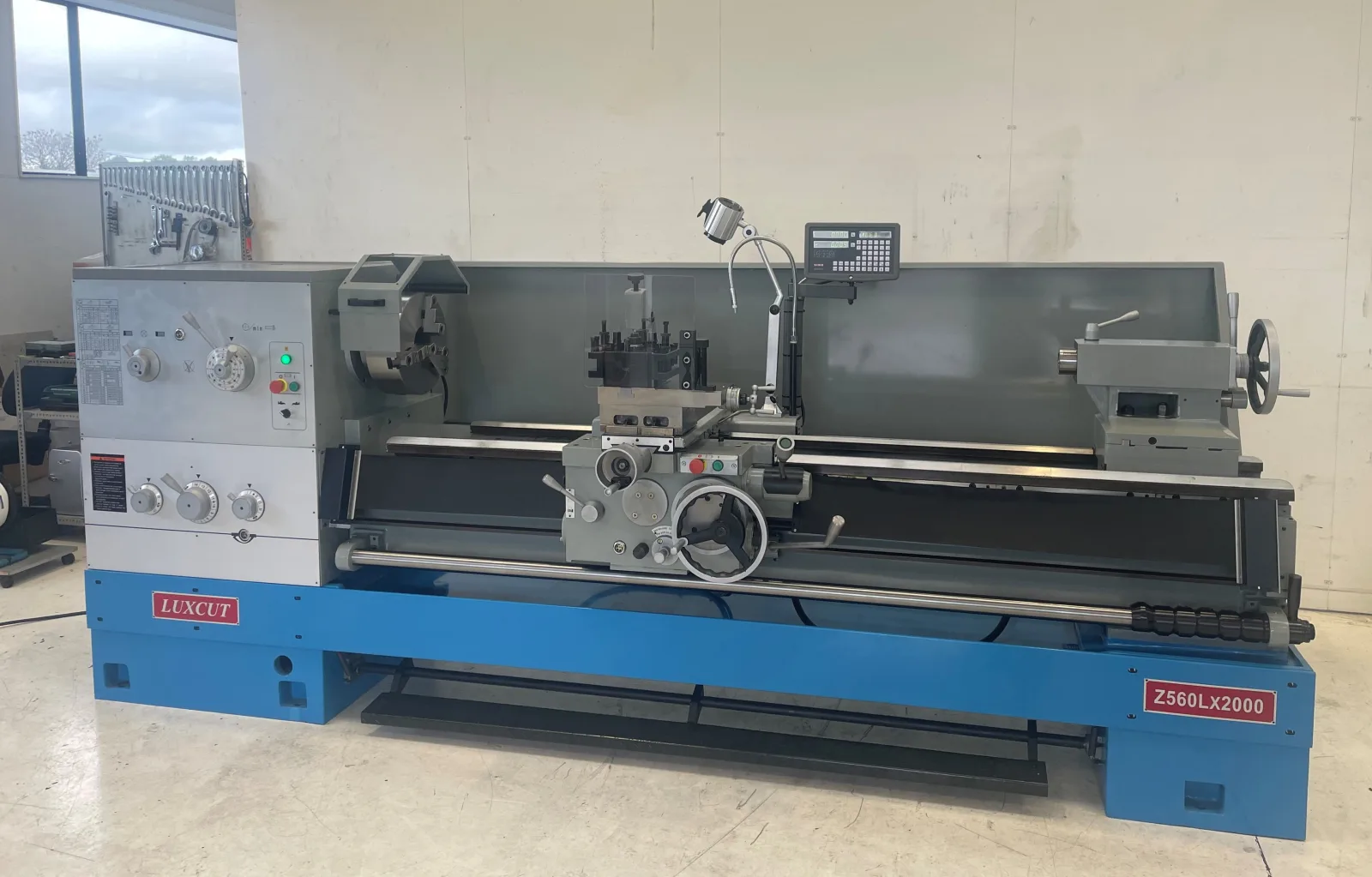

Luxcut Z560Lx2000 Centre Lathe
560mm swing x 2000mm centres x 105mm bore
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut Z560L x 2000 is a versatile, clutched head stock centre lathe designed for precision, reliability, and ease of use in both workshop and production environments. Built with a cast iron bed and hardened, ground slideways, it ensures long lasting accuracy and stability. The lathe features a wide speed range with smooth gear changes, a large 105mm spindle bore for handling bigger workpieces, and convenient dual metric/imperial graduations. Enhanced safety and operator comfort are provided with a full length splash guard, interlocked chuck guard, and integrated LED lighting. One particularly nice feature on this machine is the four way rapid power feed with rapid button. Combining good construction with practical features, the Z560L x 2000 is a dependable choice for general turning, threading, and repair work. We have evaluated many similar machines from the international market and have chosen this machine as we believe it represents good value for money. We visit the manufacturer annually. The main purpose of these visits is to evaluate new machine opportunities, and most importantly to ensure that the manufacturing facilities of the selected machine tool company we have chosen continue to produce machines that satisfy our criteria and have sales and technical service support and ex stock availability of spare parts.
Features:
- Plinth style cast iron base for rigidity and stability
- Clutched head stock
- Rapid traverse joystick X/Z axis
- Gap bed design allowing clearance for larger diameter workpieces

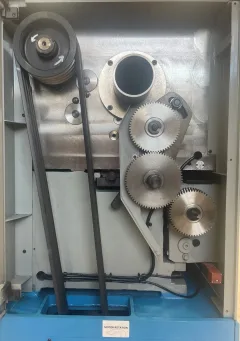

- Geared headstock drive providing smooth and precise power transmission
- Powerful 10hp main motor for reliable performance
- 3 point spindle bearing support with D1-8 Camlock spindle for secure and efficient chuck changes
- Clutch in apron for seamless feed and spindle engagement
- Enclosed feed box to protect gears and maintain accuracy
- Right hand carriage wheel for comfortable manual operation
- Induction hardened and precision ground bedways for long term accuracy
Standard Accessories:
- 3 Jaw chuck 325mm
- 4 Jaw chuck 400mm
- Faceplate 410mm
- Fixed Steady rest
- Travelling Steady
- Quick change tool post (Italian style size C) holds 25 x 25 tools
- Full length rear splash guard
- LED lamp
- Coolant equipment
- Bed stop
- Thread dial indicator (Supplied in the toolbox)
- Dual metric/imperial dials
- Toolbox
- 2 Axis SINO Digital Readout System fitted
Safety features:
- Latching emergency stop button
- Chuck guard complete with microswitch
- Fixed guarding
- Curtain-type lead screw protection to prevent damage from debris
- Tool post protection for operator safety and tooling longevity
- Main isolation switch
- Mechanical foot brake
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.Talk to Scott Machinery
