GT&C-0-6026
Workshop Machinery · Grinding & linishing

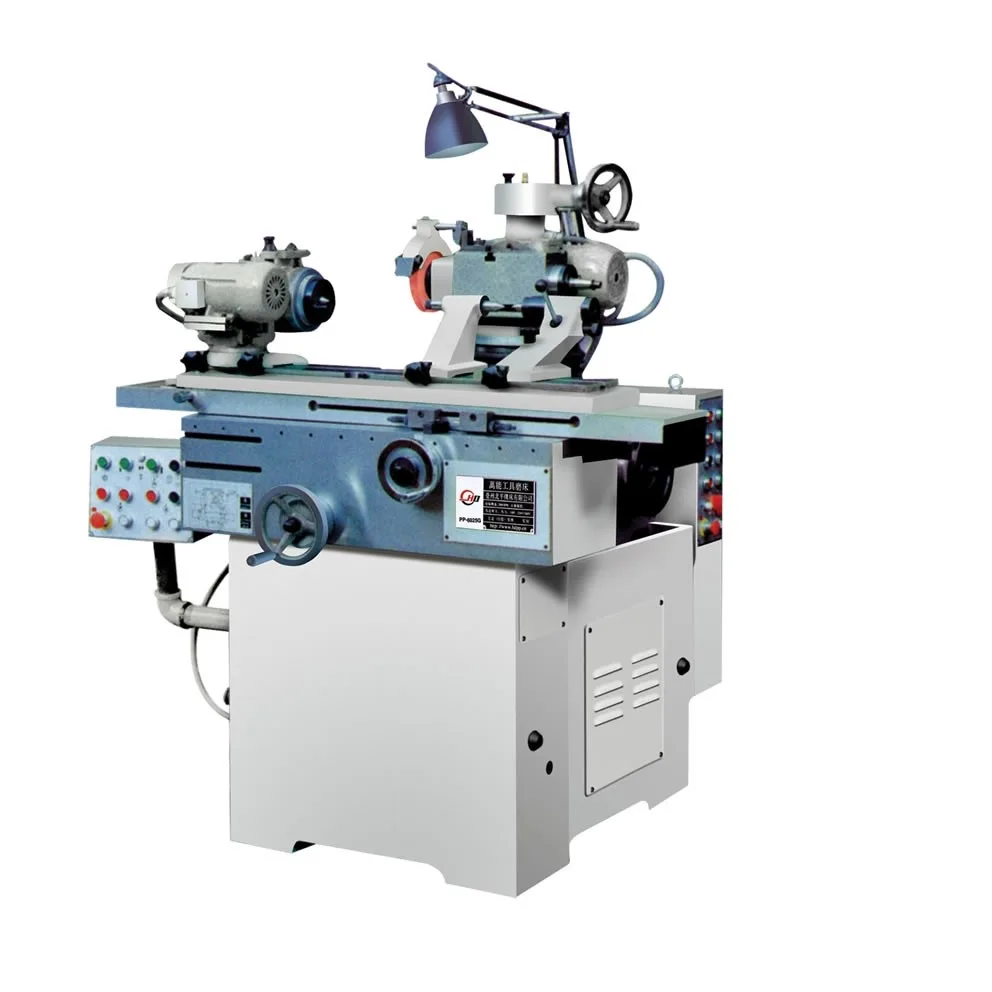

Luxcut TC-6025GL Tool & Cutter Grinder
TOOL & CUTTER GRINDER LUXCUT TC6025GL 1PH STAND
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Distance between centres
540mm
Centre height
135mm
Grinding diameter (nominal)
250mm
Longitudinal table travel
400mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Both HSS cutters and Carbide cutters are available for sharpening.
- Universal tool grinding attachment with indexing plates 50C 50H
- Precision Linear guideway makes the table stable and smoothly operated.
- Tail stock and dead centre
- Motor can be rotated 360° for more functions and grinding range.
Optional:
- Bull nose grinding attachment 50E
- Spiral flute grinding attachment BP170
- Gun drill grinding attachment 50Q
- Large capacity universal attachment 50X
- Additional 5C collets
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Centre height
135mm
Grinding diameter (nominal)
250mm
Distance between centres
540mm
Longitudinal table travel
400mm
Cross table travel
230mm
Table size
130 x 940mm
Height movement of wheel head
240mm
Speed of grinding wheel
4200 / 8000 rpm
Grinding wheel dimensions
150 x 32 x 16mm
Grinding wheel power
1350w
Drive head power
1200w
Spindle taper
5MT
Nett machine weight
1000 kg
Gross packaged weight
1200 kg
Packaged shipping dimensions
1820 x 1500 x 1640mm
