GSUR-0-1613
Workshop Machinery · Grinding & linishing

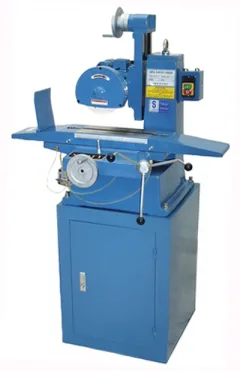

Luxcut SG-305 Surface Grinder
6" x 12" Single phase
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut SG-305 surface grinder is a manually fed, compact and reliable machine designed for precision grinding tasks in small to medium-sized workshops. Built with a robust construction, it ensures consistent performance across various metalworking and fabrication applications.
Features:
- Grinding Capacity: 6" x 12" (152 mm x 305 mm)
- Table Area: 304 mm x 152 mm
- Longitudinal Travel: 340 mm
- Cross Travel: 170 mm
- Grinding Wheel Size: 180 mm x 32 mm x 13 mm
- Spindle Speed: 3,400-3,600 rpm
- Motor: 550W, single-phase
- Ball slideway for smooth table movement
- Plunger type lubrication system
- Floor Space: 440 mm x 430 mm
- Net Weight (Machine + Stand): 240 kg
- Gross Weight (Incl. Stand): 312 kg
Standard accessories:
- Centralized lubrication pump
- Sheetmetal stand
- Wheel dresser
- Wheel balancing arbor
Optional:
- Magnetic chuck 150 x 300mm
