GMIS-0-4000
Tooling, Accessories & Consumables · Other tooling & accessories

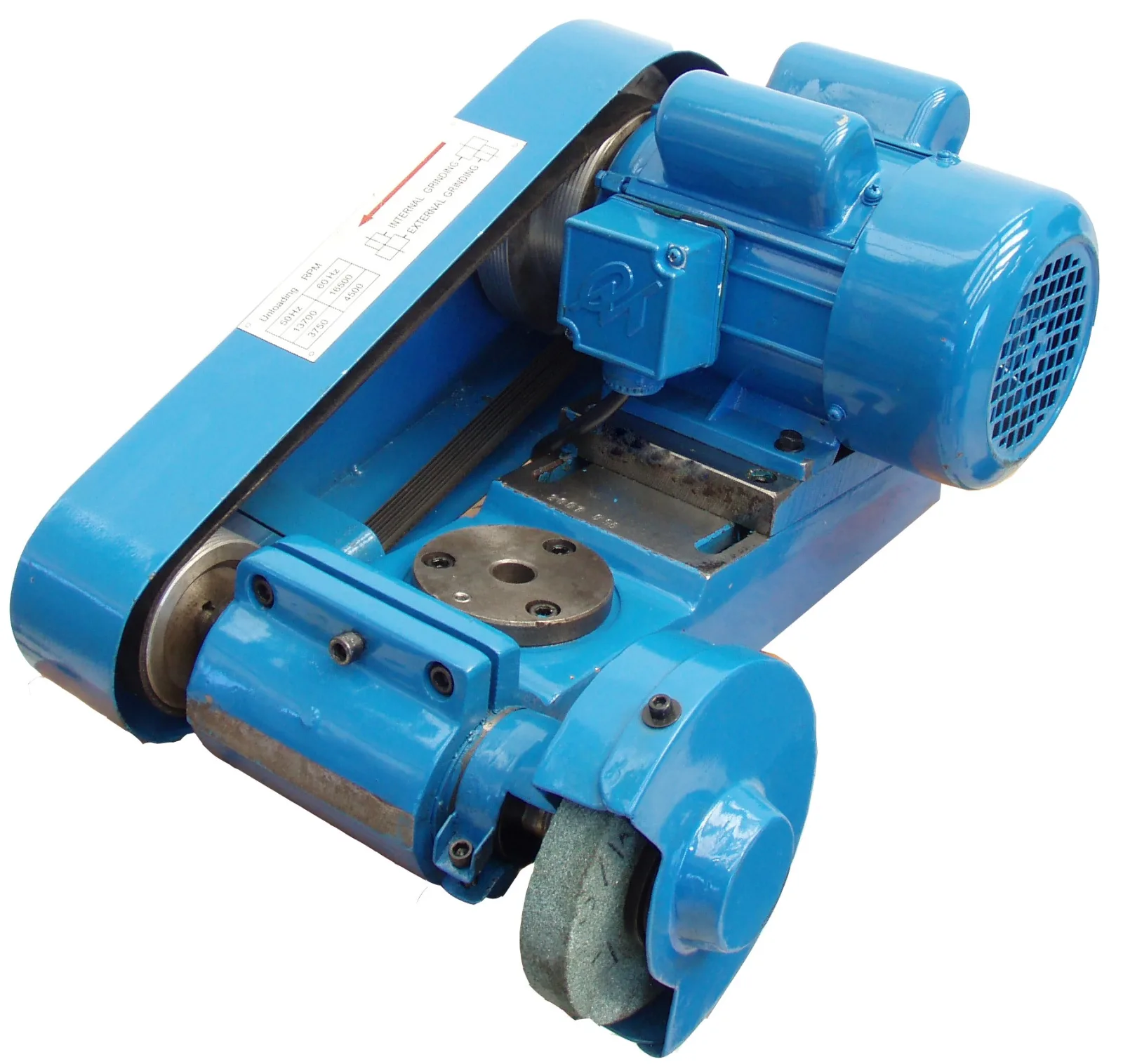

Luxcut GA-60 Tool Post Grinding Attachment
Toolpost grinder for lathes
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

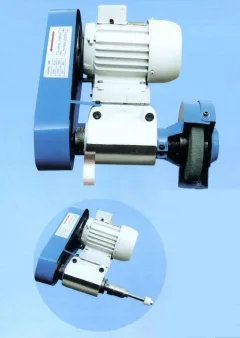

The Luxcut GA-60 is a versatile tool post grinder designed to enhance the capabilities of your lathe. Compact and robust, it allows for both external and internal cylindrical grinding, making it ideal for achieving fine finishes and tight tolerances on a variety of materials
Features:
- Toolpost mounted grinder designed for lathe integration.
- Belt driven mechanism with a step pulley system, accommodating both internal and external spindles.
- Operates on single phase 230V electrical supply comes equipped with a cord and plug for immediate use.
- Stop/start switch for user friendly operation (note: switch not visible in product images).
- Suitable for workpieces up to 140 mm in diameter.
- Capable of grinding internal diameters as small as 30 mm, with depths up to 90 mm.
- External Spindle Approximately 3,750 rpm.
- Internal Spindle Approximately 13,700 rpm.
- External Wheel 125 mm x 20 mm (32 mm bore).
- Internal Wheel 20 mm x 20 mm (6 mm bore).
- Motor Power 550W, suitable for light to medium-duty grinding tasks.
