Workshop Machinery · Grinding & linishing

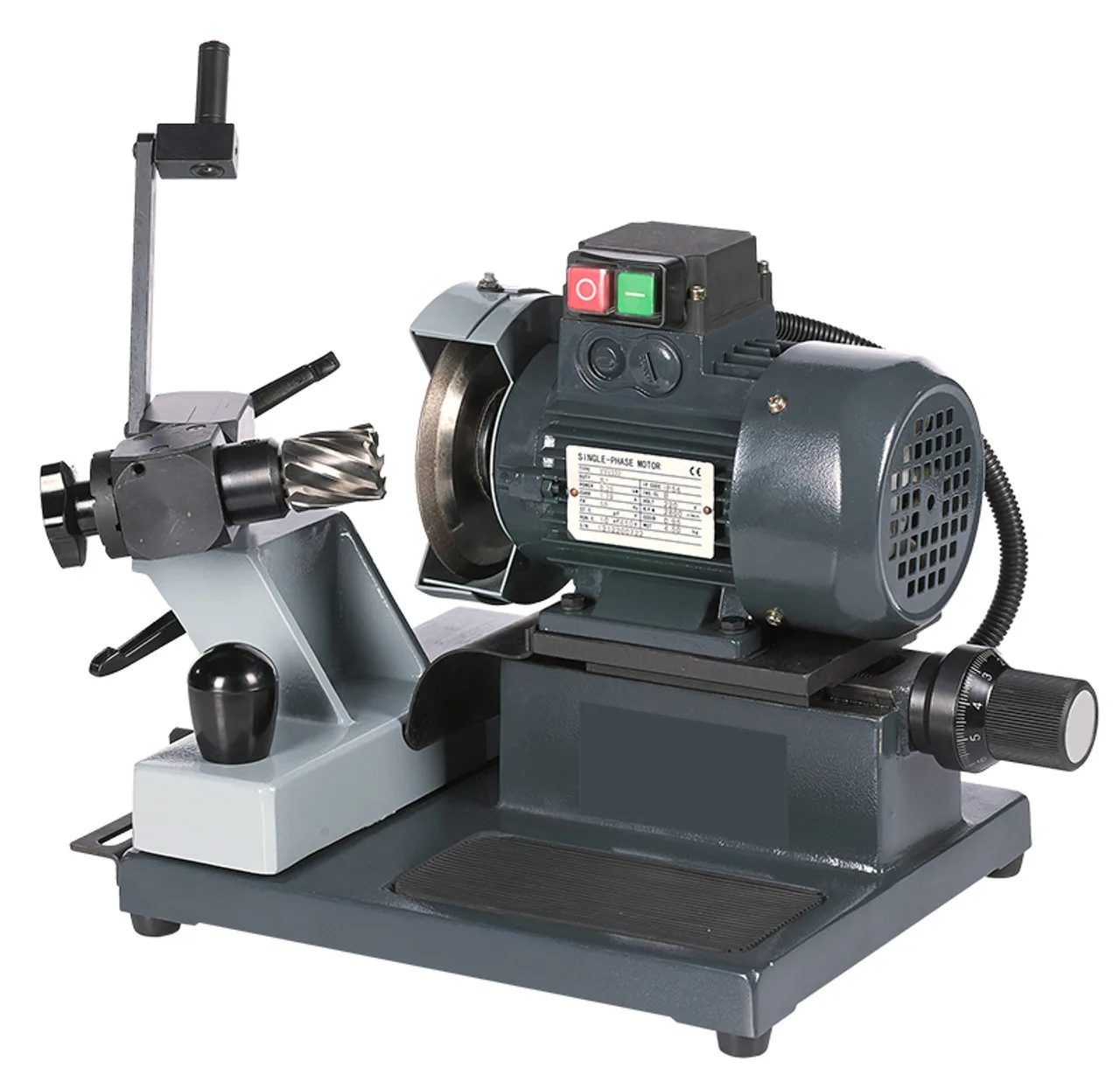

Luxcut ERM2 Core Drill Sharpener

Designed exclusively for Annular / Core drill / Rota broach cutter sharpening.

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Maximum cutter capacity 76mm
Motor capacity 240v 1800w
Grinding wheel 125mm Diamond plated
Shank cutter holder Weldon 19mm (3/4")
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut ERM2 core drill grinding machine is a single phase sharpening machine designed to sharpen core drills in the simplest and most efficient way possible. Its robust and precise construction, combined with low power consumption and ergonomic design, allows for immediate and user-friendly operation. The machine has been engineered so that any operator can quickly become familiar with its functions, enabling core drills to be sharpened with maximum precision. All adjustments and grinding processes are performed manually.

Features:

  • Precision sharpening of HSS and carbide annular/core drills
  • Strong, ergonomic construction for industrial use
  • Single CBN grinding wheel for flank & gullet sharpening
  • Cutter capacity up to 76 mm diameter
  • Powerful motor for consistent grinding performance
  • Supplied with grinding wheel
  • Optional diamond wheels available for enhanced carbide sharpening

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Maximum cutter capacity 76mm
Motor capacity 240v 1800w
Grinding wheel 125mm Diamond plated
Shank cutter holder Weldon 19mm (3/4")
Weight 30kg
Shipping 500mm x 320mm x 320 mm (33kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
