WEB-CYL GRINDER
Workshop Machinery · Grinding & linishing

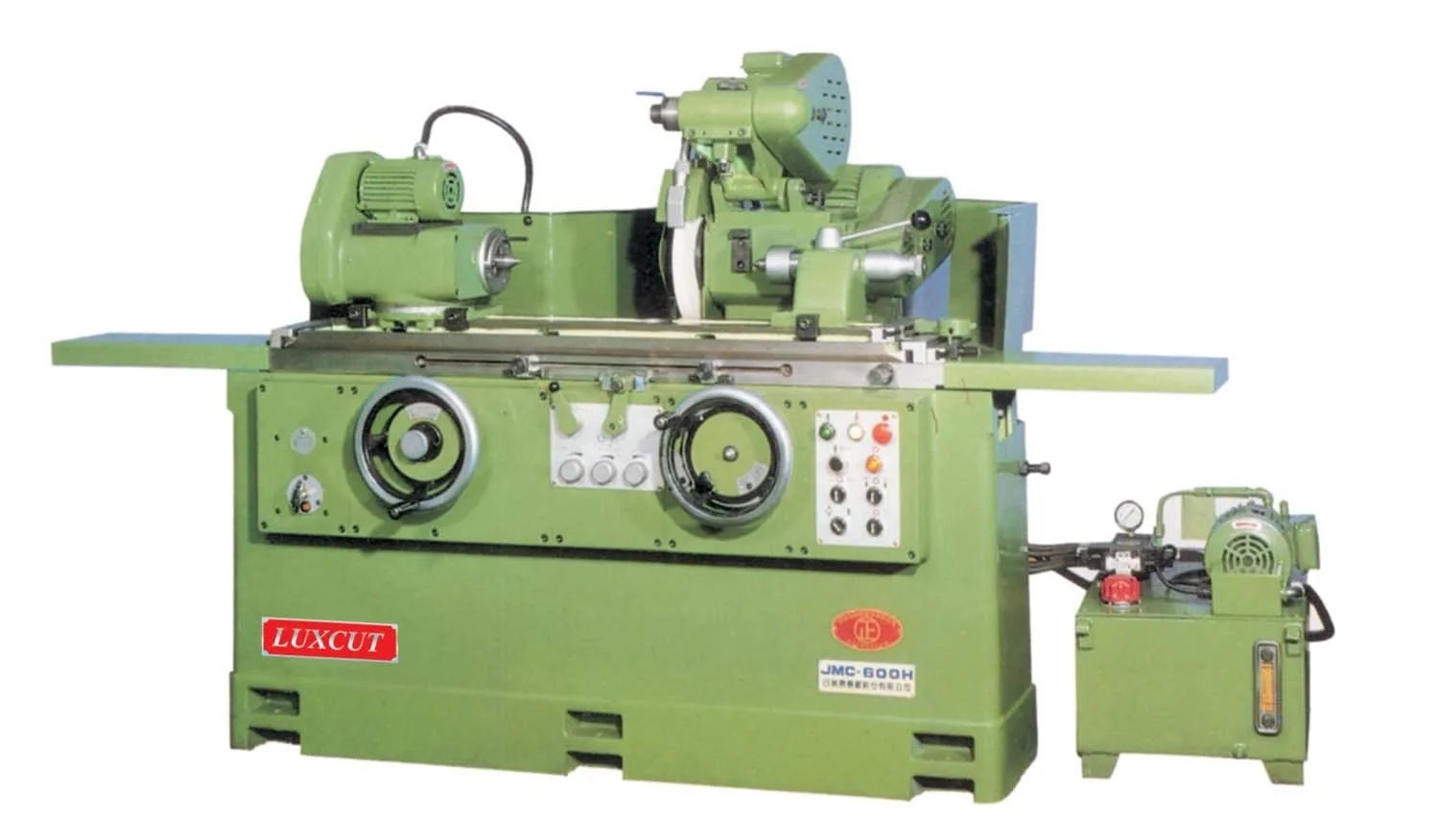

Luxcut Cylindrical Grinder Series
WEB-Cylindrical Grinder
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Wide range of models
CNC options
Internal grinding optional
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | YC-350 | YC-500 | YC-750 | YC-1000 | YC-1500 |
|---|---|---|---|---|---|
| Swing over table | 250mm | 250mm | 250mm | 300mm | 350mm |
| Distance between centers | 350mm | 500mm | 750mm | 1100mm | 1600mm |
| Grinding wheel size | 305x32x102 | 355x25x102 | 355x25x102 | 405x38x152 | 405x38x152 |
| Grind wheel motor HP | 2 | 3 | 3 | 5 | 5 |
| Nett weight | 1800kg | 2100kg | 2500kg | 4500kg | 5200kg |
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
