MBED-0-0715
Workshop Machinery · Mills & mill drills

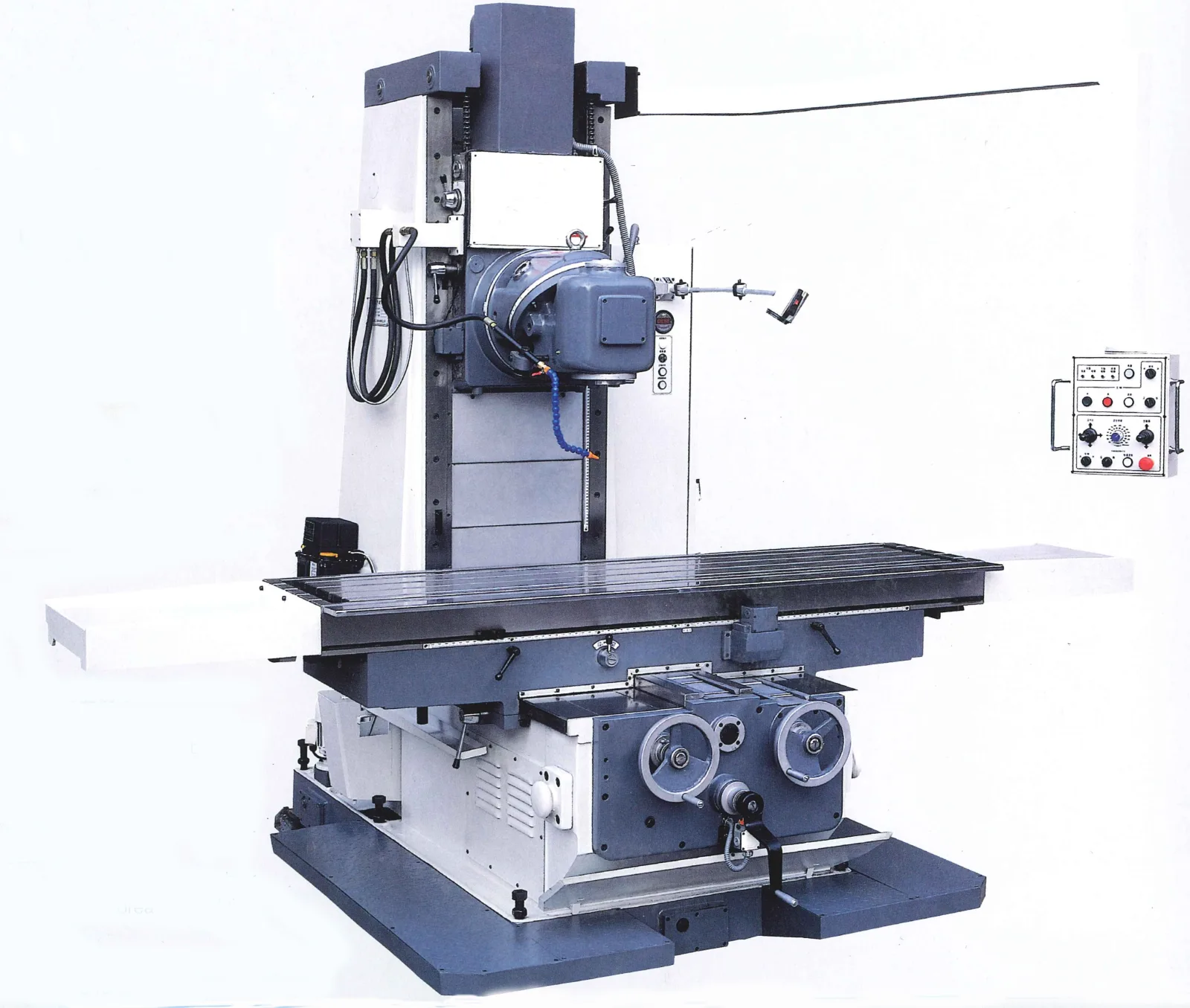

Luxcut BM-2759 Bed Mill Universal Type
2100 x 500mm table Heavy duty 2000 kg table load
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut BM-2759 is a heavy duty, universal type bed mill featuring a versatile "Huron" style swiveling head, ideal for both vertical and horizontal milling. Its 2100 x 500 mm table supports impressive 2 000 kg load capacity, while generous travels (X = 1500 mm, Y = 700 mm, Z = 0-700 mm) and a 610 mm throat accommodate substantial and complex workpieces. Equipped with a NT50 spindle offering 40 - 1600 rpm across 12 speeds and driven by a 7.5 kW motor, the machine delivers sound performance. Efficient 20-1800 mm/min feed rates and 3500 mm/min rapid traverse enhance productivity. Practical features such as auto-lubrication, coolant delivery, and a halogen work lamp come standard, with an optional 3-axis DRO available for precision setups. All housed in a solid 7300 kg frame measuring 3300 x 2380 x 2750 mm.
Features:
- Universal Huron style swivel head allows for versatile milling operations, accommodating both vertical and horizontal orientations.
- Heavy duty construction designed to handle demanding machining tasks with stability and precision.
- Large table size offers a 2100mm x 500 mm work surface, providing ample space for various workpieces.
- High table load capacity supports up to 2000 kg, enabling the machining of heavy components.
- Longitudinal travel(X-axis): 1500 mm
- Cross travel(Y-axis): 700 mm
- Vertical travel(Z-axis): 0-700 mm
- Throat depth 610 mm
- NT50 Spindle Taper
- Spindle speed range 40-1600 rpm across 12 speeds, providing flexibility for various machining operations.
- Working Feed: 20-1800 mm/min
- Rapid Traverse: 3500 mm/min
- Equipped with a 7.5 kW motor to handle demanding machining tasks.
- Auto Slideway Lubrication: Ensures smooth operation and longevity of the machine.
- Coolant System: Provides effective cooling during machining processes.
- Halogen Work Lamp: Illuminates the work area for improved visibility.
Optional:
- 3 Axis DRO system
Safety features:
- Latching emergency stop button
- Main isolation switch
