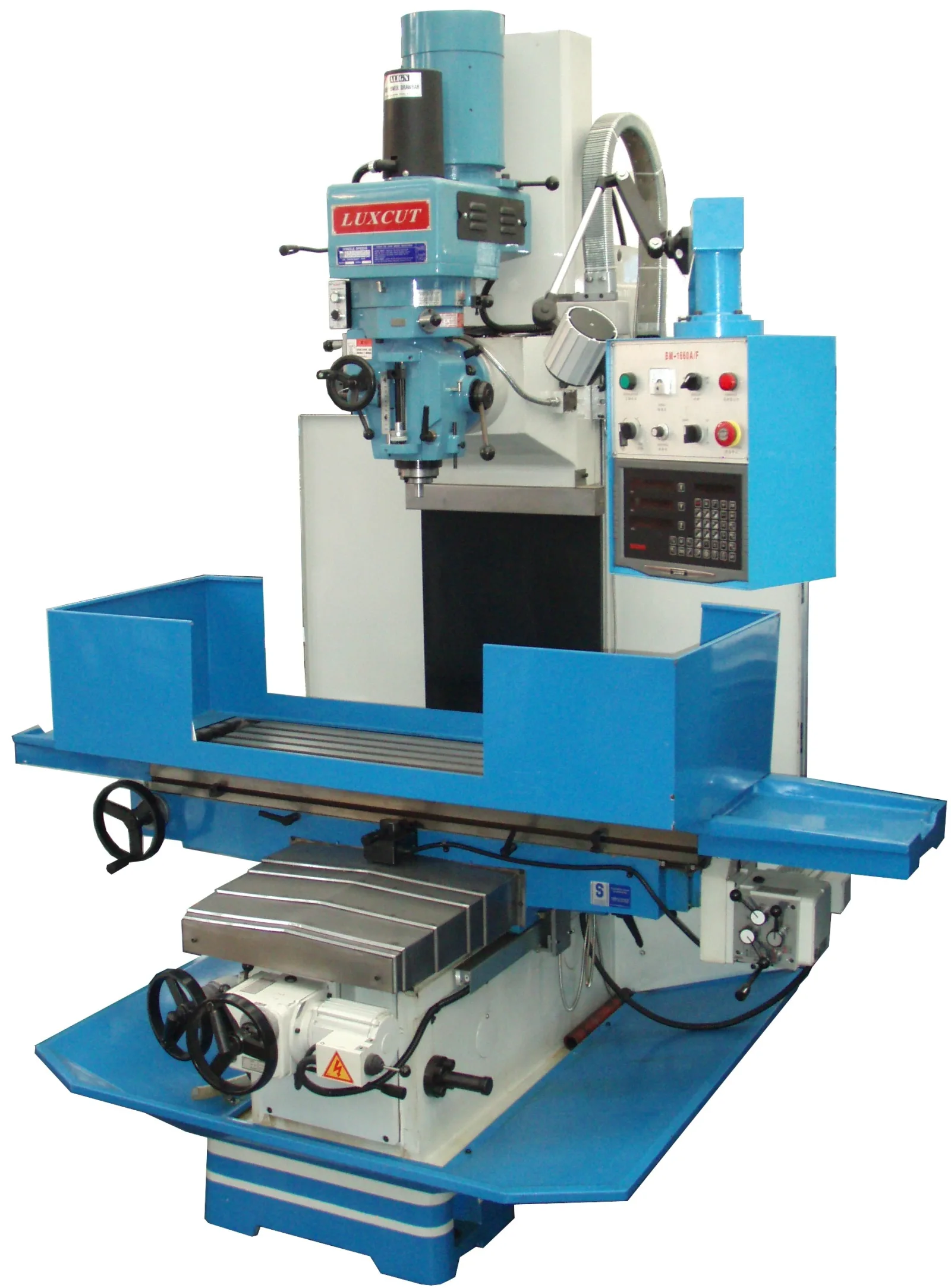

Luxcut BM-2040 Bed Mill
Luxcut Bed Mill Series 1370x400 table
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut BM-2040 is a robust bed type milling machine designed for precision and versatility. Featuring a 3-axis digital readout (DRO), C5 ballscrews, and Turcite B coated slideways, it delivers accurate and smooth machining along X, Y, and Z axes. With a 1370 x 400 mm table, NT40 spindle (50-3750 rpm), gear type power feeds, and an integrated coolant system, the BM-2040 is ideal for toolroom work, maintenance, and small to medium production runs. Its durable construction, air powered drawbar, and central lubrication ensure reliability and long lasting performance
Features:
- Heavy duty bed mill
- Table dimensions 1370 x 400 mm
- Longitudinal travel (X) 1000 mm
- Cross travel (Y) 508 mm
- Vertical travel (Z) 700 mm
- Spindle taper NT40
- Speeds: 50-3750 rpm (variable)
- Motor: 5 kW (7 HP)
- Quill travel 127 mm
- Quill diameter 105 mm
- Feed Rates: 0.04, 0.08, 0.15 mm/rev
- Square slideways Y & Z axis
- Slideways Turcite-B coated on X, Y, and Z axes
- C5 grade ballscrews on all 3 axis
- Gear type power feeds on X and Y axes
- Inverter feed on Z axis
- 3-Axis Digital Readout (DRO)
- Air-Powered drawbar
- Coolant system for effective chip removal and cooling
- Halogen lamp provides adequate illumination of the work area
- Central lubrication system ensures proper lubrication of moving parts
- Inverter motor with power brake offers variable speed control and quick stopping capabilities
- Head tilts +/-90 degrees for versatile machining angles
Safety features:
- Latching emergency stop button
- Main isolation switch
- Guarding/splash guards
