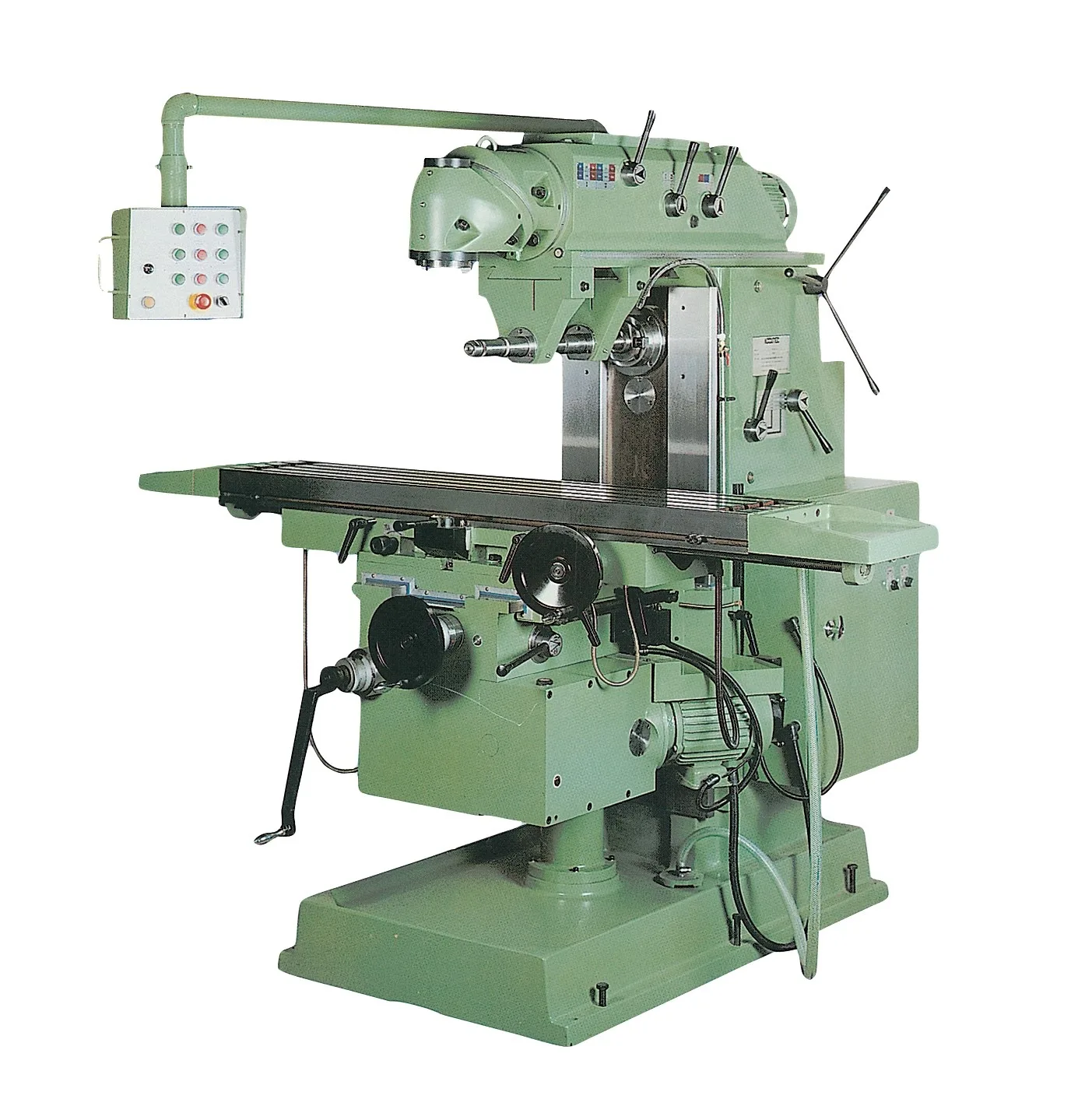

Luxcut 2500UM Powered Overarm
Heavy duty, Universal Mill,
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut 2500UM is a robust universal milling machine designed for versatility and precision in both horizontal and vertical milling operations. Manufactured with high-quality Meehanite cast iron, it offers exceptional rigidity and durability. The machine features a powered overarm, allowing for efficient horizontal milling, while the vertical head provides flexibility for a wide range of applications
Features:
- Universal milling capability equipped with both vertical and horizontal spindles, allowing for versatile machining operations.
- Table swivels +/-45 degrees, providing flexibility for angular milling tasks.
- Main castings made of Meehanite cast iron (GC-45/DIN-40) ensure high tensile strength and rigidity.
- All gears and shafts are hardened and ground for durability and precision.
- Horizontal spindle ISO 40 taper with 12-speed ranges (40-1800 rpm).
- Vertical spindle ISO 40 taper with 12-speed ranges (35-1600 rpm).
- Horizontal spindle motor 7.5 HP.
- Vertical spindle motor 5.5 HP.
- Table Dimensions 350 x 1500 mm.
- Load Capacity 700 kg
- Longitudinal travel (X-axis) 1168 mm.
- Cross travel (Y-axis) 400 mm.
- Vertical travel (Z-axis) 500 mm.
- Motorized overarm for horizontal spindle adjustments.
- Coolant system with pump for effective chip removal and cooling.
- Toolbox and service tools included for maintenance and setup.
Standard Accessories:
- 27mm or 1" long horizontal milling arbour with 2 supports.
- Horizontal & vertical manual draw-bars.
- Automatic way lubrication unit.
- Coolant pump & coolant system.
- Chip tray.
- Work light.
- Tool box and services tools.
Standard Accessories:
- Pneumatic power draw bar.
- NT50 spindle taper.
- Quill on Huron Head (2500M upgrade)
Safety features:
- Latching emergency stop button
- Main isolation switch
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Luxcut | 2500 | |
|---|---|---|
| Working surface of table | 350 x 1500mm | |
| Longitundinal travel of table | 1150mm | |
| Cross travel of table | 400mm | |
| Vertical travel of table | 500mm | |
| Horizontal | Vertical | |
| Speed range | 40 - 1,800 rpm (12 steps) | 35 - 1,600 rpm (12 steps) |
| Spindle tapers | NT50 | NT40 |
| Motors (Hori/Vert) | 7.5 HP | 5.5 HP |
| Table swivel | +/- 45 degrees | |
| Machine weight | 3,500 kg |
