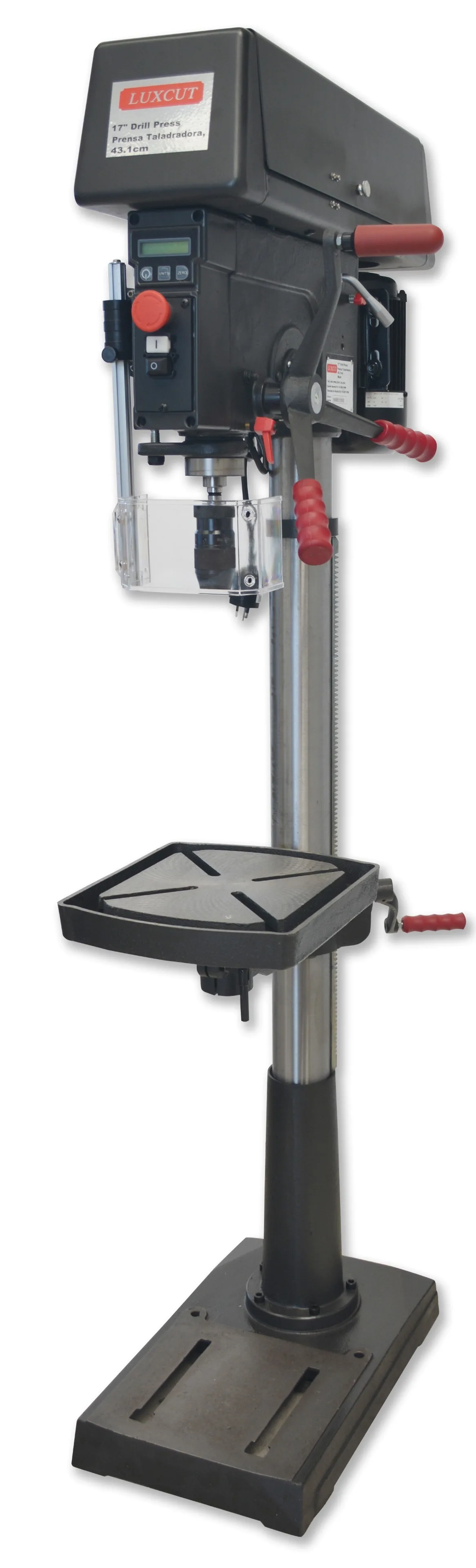

LUXCUT 17F Belt Drive Drilling Machine

New series with large quill travel plus more new features. Single Phase 750w. 2 Morse Taper.

$939.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Drilling capacity 16mm
Spindle taper 2MT
Throat 215.9mm radius (17 inch diameter)
Quill travel ***EXTRA LONG*** 127mm (Digital depth display)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

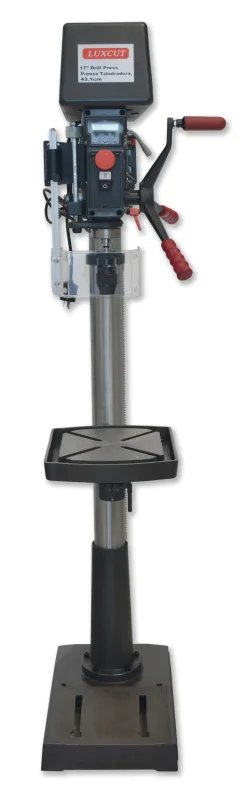

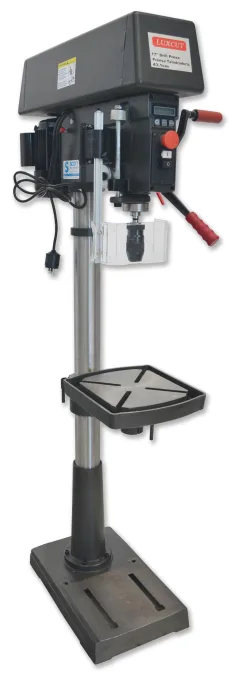

The LUXCUT 17F is a column mounted, belt driven drill press designed to meet both workshop and DIY demands with precision and durability. Its impressive specs and thoughtful features make it a practical choice for accurate, repeatable drilling tasks.

Features:

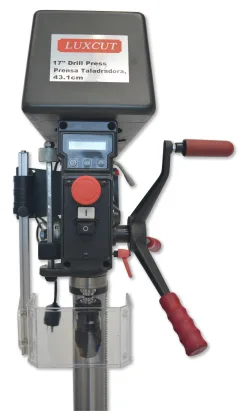

  • Digital Quill Depth Display
  • Digital speed display (RPM)
  • Allows you to zero in on precise drilling depths and easily reference depth for repeat accuracy.
  • Sixteen Speed Belt Drive System
  • Offers a convenient speed range from 115 rpm up to 2,897 rpm, accommodating various materials and bit sizes.
  • Reliable Motor and Safety Design
  • Powered by a single phase 750W (1 hp) motor, paired with a spindle protection guard and a safety micro switch on the pulley guard to enhance operator safety.
  • The 317 x 330 mm table can tilt +/-45 degrees and rotate, thanks to its 14 mm T-slot configuration ideal for angled or complex drilling.
  • Weighing in at 94kg with a 80mm column and 1657 mm overall height, it offers a sturdy base that minimizes vibration during operation.
  • Features include a keyless 16 mm chuck, adjustable quill depth stop with lock, and a Morse Taper (2MT) spindle taper balancing usability with mechanical precision.

Safety features:

  • Latching Emergency stop separate from the on / off buttons
  • Drill chuck safety shield with interlocked microswitch
  • Main isolation switch with lockout

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacity 16mm
Spindle taper 2MT
Throat 215.9mm radius (17 inch diameter)
Quill travel ***EXTRA LONG*** 127mm (Digital depth display)
Spindle speed range 115 - 2,897 rpm (Digital speed display (RPM)
Spindle speeds 16
Table tilt +/- 45 degrees
Table size 317 x 330mm (accepts M12 x 14mm Tee nuts)
Column diameter 80mm
Motor power 750W 1hp / 230V
Overall height 1657mm
Machine nett weight 94 kg
