Linishall BG-10 250mm Double Ended Bench Grinder
Linishall logo GDE-0-2507

Workshop Machinery · Grinding & linishing

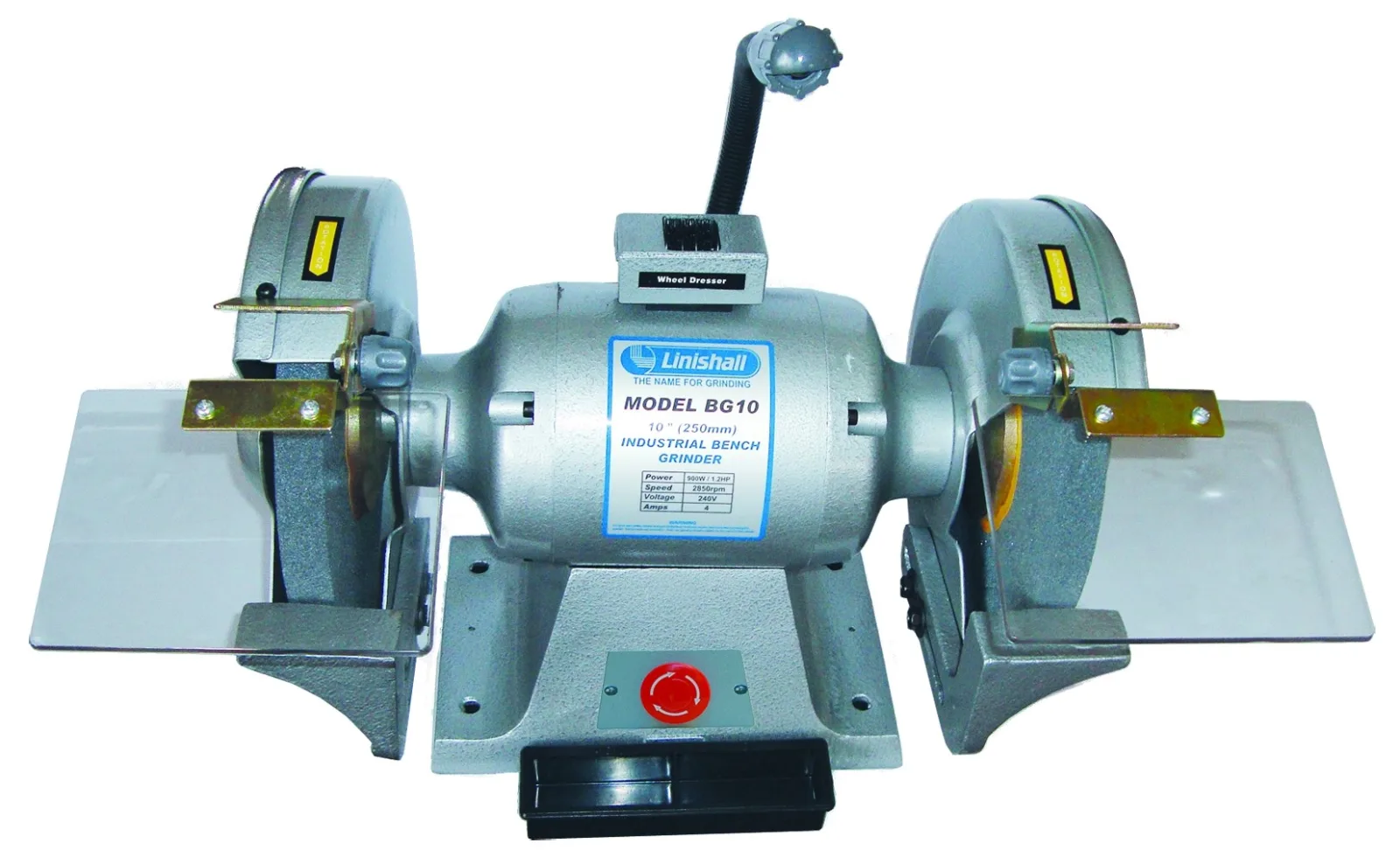

Linishall BG-10 250mm Double Ended Bench Grinder

900w 230v

$534.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Linishall 250mm D/E
Wheel size 250mm x 32mm
Motor 0.9kW 1 Phase
Speed 2850rpm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Linishall is a recognised brand of industrial belt grinding and linishing equipment widely used in engineering and fabrication workshops. The range includes bench and pedestal-mounted linishers, belt grinding attachments, and associated accessories designed for metal finishing, deburring, and general workshop applications. Linishall equipment features heavy-duty construction suited to continuous workshop use. The range is commonly used in engineering workshops, maintenance departments, and training facilities across New Zealand and Australia for routine grinding, deburring, and finishing tasks.

The Linishall BG10 is a double ended bench grinder designed for heavier workshop grinding applications. It is fitted with larger grinding wheels on both ends, allowing for increased material removal and extended wheel life in demanding use. The BG10 is used in engineering workshops, maintenance departments, and fabrication environments for general grinding, deburring, and tool sharpening where a more robust machine is required.

Features:

  • Work light
  • Wheel dresser
  • Work piece supports
  • Double quenching trough (oil & water)

Optional

  • Floor stand
  • Wall mount

Safety Features:

  • Fully guarded
  • Includes a no volt release switch for secure start safety
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Linishall 250mm D/E
Wheel size 250mm x 32mm
Motor 0.9kW 1 Phase
Speed 2850rpm
Size 550mm x 4500mm x 380mm (16mm diameter shaft)
Weight 32kg
Shipping 0.075m3, 34kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Linishall BG-10 250mm
