CNC-0-0707
CNC Machine Tools · Turning centres

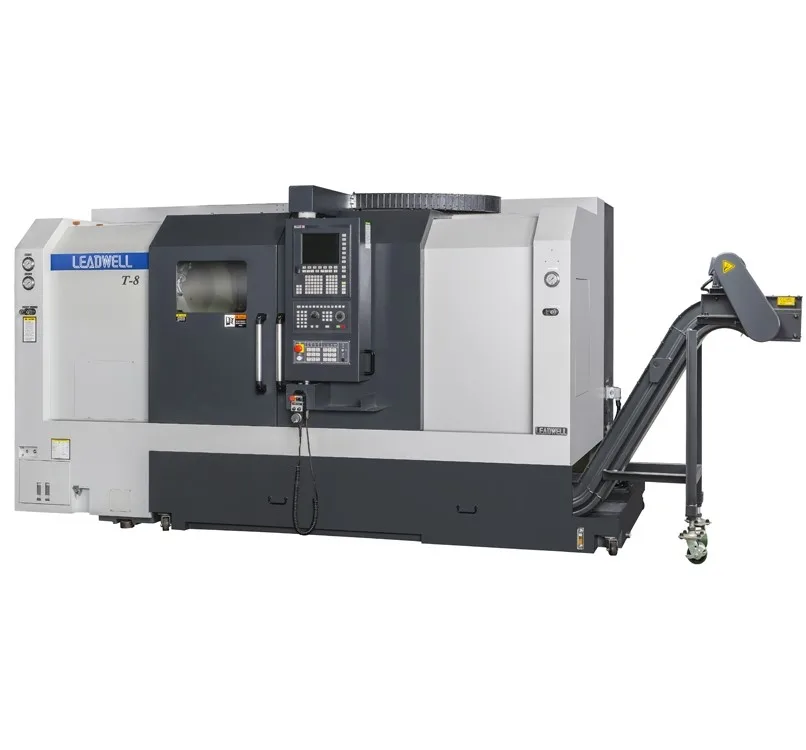

Leadwell T8 Compact CNC Lathes
LEADWELL CNC LATHE T8
POA Let us know your requirements
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Taiwanese Manufacturing
Standard Accessories:
- Full guarding
- 3 jaw through hole hydraulic chuck
- Hydraulic unit RS232 interface
- Fanuc Oi -TF/T3 controller
Options:
- Chain type chip conveyor & bucket
- Collet Chuck
- Parts catcher
- Bar feeder
- Bar feeder interface
- Pneumatic door
- Single point spindle orientation
- Multi point spindle orientation
- Loading/unloading system
- Other controls
Machine video
See Leadwell T8 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | T-8 | |
|---|---|---|
| Capacity | ||
| Max swing | mm | 670 |
| Bar capacity | mm | 77 |
| Chuck size | inch | 10 |
| Travel | ||
| X axis | mm | 250 |
| Z axis | mm | 640 |
| Spindle | ||
| Spindle speed | rpm | 35-3500 |
| Spindle nose | A2-8 | |
| Through hole spindle | mm | 89 |
| Turret | ||
| Number of tool positions | 12 | |
| Turret indexing time | sec | 1 |
| Feedrate | ||
| X rapid traverse | m/min | 20 |
| Z rapid traverse | m/min | 24 |
| Motor | ||
| Spindle Motor | HP | 25 |
| Miscellaneous | ||
| Machine weight | kg | 5000 |
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
