CNC-0-0600
CNC Machine Tools · Turning centres

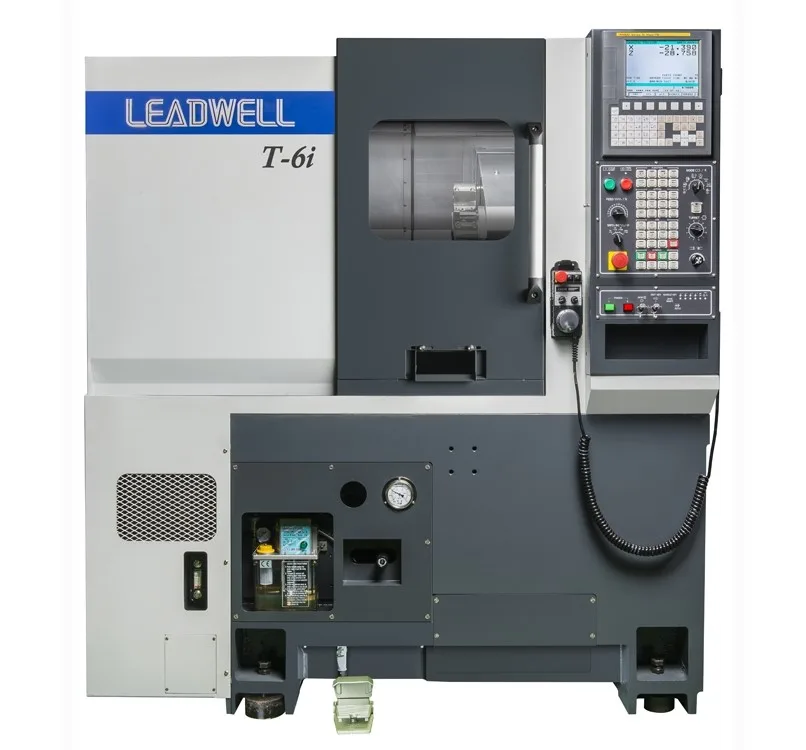

Leadwell T6 Compact CNC Lathe
LEADWELL CNC LATHE MODEL T6 SIEMENS 828B
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Taiwanese Manufacturing
Standard Accessories:
- Full guarding
- 3 jaw through hole hydraulic chuck
- Hydraulic unit RS232 interface
- Fanuc OTD
Options:
- Chain type chip conveyor & bucket
- Collet Chuck
- Parts catcher
- Bar feeder
- Bar feeder interface
- Pneumatic door
- Single point spindle orientation
- Multi point spindle orientation
- Loading/unloading system
- 6000 rpm (T-6 only)
- Fanuc OTF
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | T-6 | |
|---|---|---|
| Capacity | mm | 450 |
| Bar Capacity | mm | 51 |
| Chuck size | inch | 6 |
| Travel | ||
| X axis | mm | 230 |
| Z axis | mm | 460 |
| Spindle | ||
| Spindle speed | rpm | 45-4500 |
| Spindle nose | A2-5 | |
| Through hole spindle | mm | 62 |
| Turret | ||
| Number of tool positions | 12 | |
| Turret indexing time | sec | 1 |
| Feedrate | ||
| X rapid traverse | m/min | 20 |
| Z rapid traverse | m/min | 24 |
| Motors | ||
| Spindle Motor | HP | 15 |
| Miscellaneous | ||
| Machine weight | kg | 2800 |
