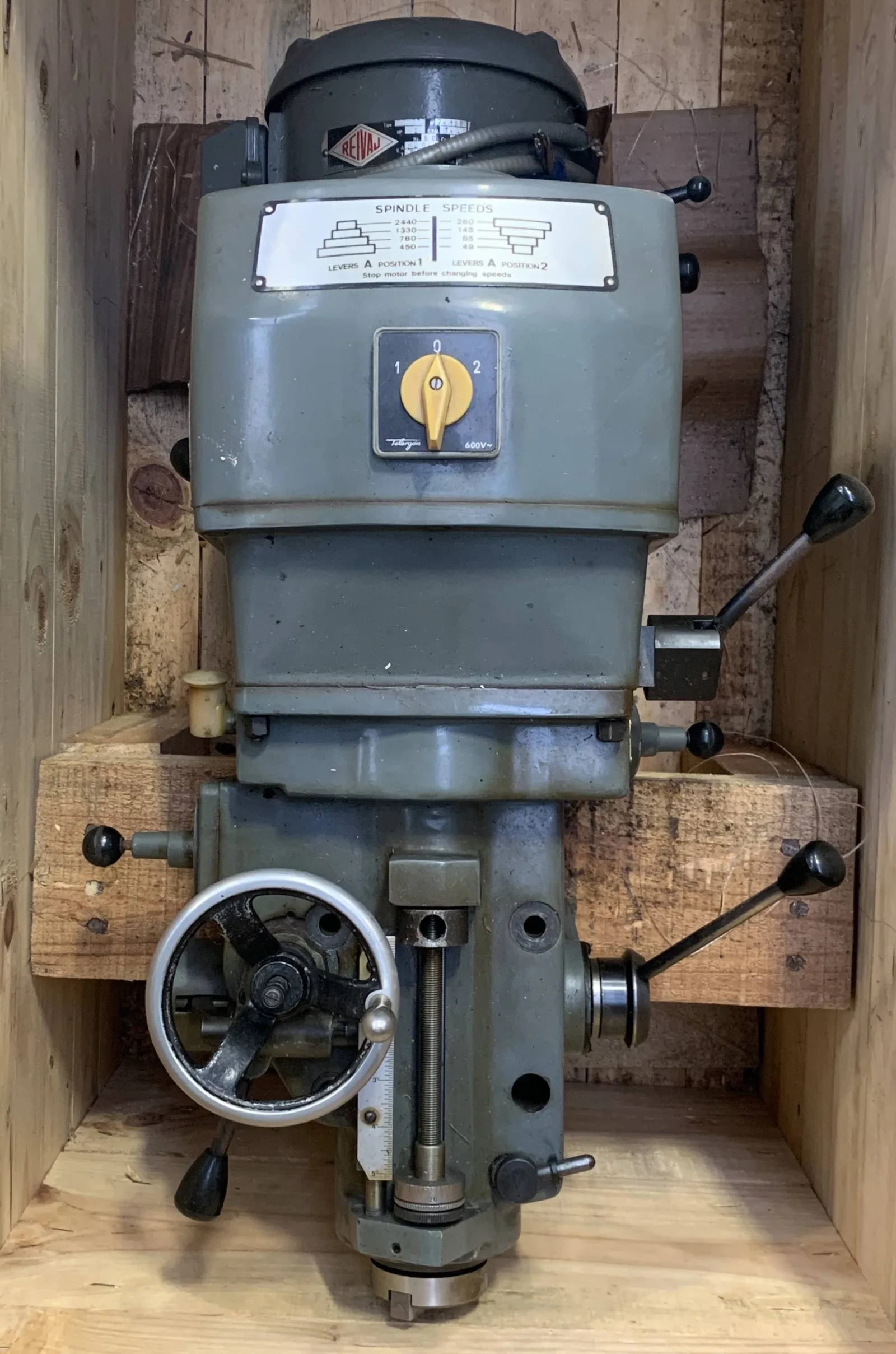

Lagun Turret Mill Head NT30 2hp 3ph
8 spindle speeds
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
LAGUN milling machines, manufactured in Spain are renowned worldwide for their precision, reliability, and robust construction. Manufactured in Spain by Lagun Machinery, a company with over 60 years of experience in machine tool production, LAGUN mills are a trusted choice across industries ranging from aerospace to general engineering. Designed with high-quality components and user centric features, these machines offer exceptional rigidity and accuracy, ideal for heavy duty milling, contouring, and high speed machining
This Lagun Milling head was purchased to replace the head in an older machine and we were informed it was not used. Still in its original freighting wooden box, this high quality Spanish mill head will be an excellent option for replacing an older worn head. Head is untested.
Features:
- Powerful 2hp motor delivers reliable and consistent power for demanding milling applications.
- 3-Phase electrical supply.
- 8 speeds via 4 pulley positions & two speed motor (as per photo 2).
- Industry standard NT30 spindle taper for secure tool holding and wide tool compatibility.
- Step pulley drive system is a simple and reliable mechanical speed control with multiple fixed speed settings, low maintenance and cost effective.
- High precision spindle bearings ensure smooth rotation and minimal runout for accurate machining.
- Rigid cast iron construction minimizes vibration and enhances stability during cutting operations.
- Quill feed with fine adjustment facilitates precise vertical movements for drilling and boring tasks.
- Manual spindle brake for quick and safe tool changes.
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
