CNC-0-9761
CNC Machine Tools · Teach & toolroom machines

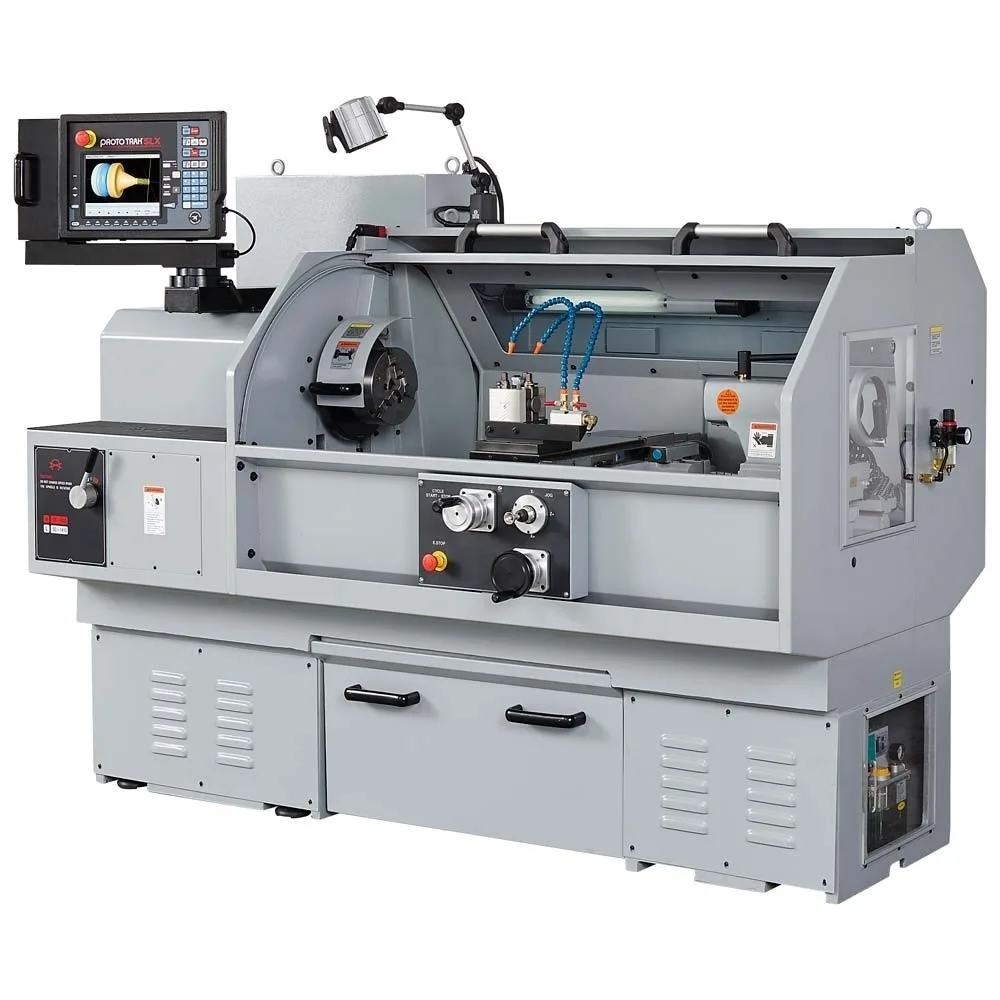

King Rich Proturn RLX 355x1000 Combination Manual / CNC Lathe
Note: Machine images shown with SLX control. Capacity, capability & value! After the first day you will wonder why you ever used a manual lathe. 360mm swing, 52mm bore, 1000mm centres, 4000rpm
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Capacity, capability & value! After the first day you will wonder why you ever used a manual lathe. 360mm swing, 52mm bore, 1000mm centres, 4000rpm
In 1995 ProtoTRAK introduced the simple to program and use ProtoTRAK conversational control for a Lathe (Proturn) and revolutionised the production of small batch and one off turned parts. The latest RLX ProtoTRAK offers more power and features whilst retaining the original simplicity. If you are looking for an edge over your competition, or you need flexibility and speed on the shop floor then ProtoTRAK really is the answer.
The Proturn RLX 355x1000 has capacity, capability and value! A 15.6" touchscreen, tool library management, and Delta servo drives are a few of the many improvements, and after the first day you will wonder why you ever used a manual lathe.
A tribute to King Rich turret mills is the huge quantity being sold throughout Europe by UK Company XYZ Machine Tools Ltd. They specialize in selling high quality, precision, performance, toolroom machine tools in a market that only accepts the best.
Features: The selected lathe has the excellent inherent design features listed below to provide the rigidity and accuracy necessary to perform heavy duty machining for all multi purpose engineering applications: The slide ways between the saddle and bed are Turcite coated to provide reduction in friction resistance, saving on power consumption and smoother machine operation. Hardened and precision ground gears and bed-way One piece solid cast iron base Delta AC servo drives & brushless motors 15.6" Touchscreen Bed Width of 300mm Super high precision taper roller spindle bearing arrangement D1-6 Camlock spindle Manufactured to ISO 9002 standards
Standard Equipment:
- Italian Rapidue BP Quick change toolpost
- Bison 3 jaw 3545-200/6 4000rpm chuck
- Tailstock
- TRAKing
- Joystick control for rapid movement
- Coolant System
- Worklight
- Automatic lubrication
- Electromagnetic spindle brake
- Chuck guard (interlocked)
- Swarf guard (interlocked)
- Dead centres, sleeves
- Advanced features
Optional Equipment:
- RSG, DXF, offline software
- Steady rest 10-140mm
- Follow rest 10-80mm
- 40mm bore drilling attachment
- 4 Station auto indexing tool post
- 8 Station servo turret indexer
Machine video
See King Rich Proturn RLX 355x1000 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
