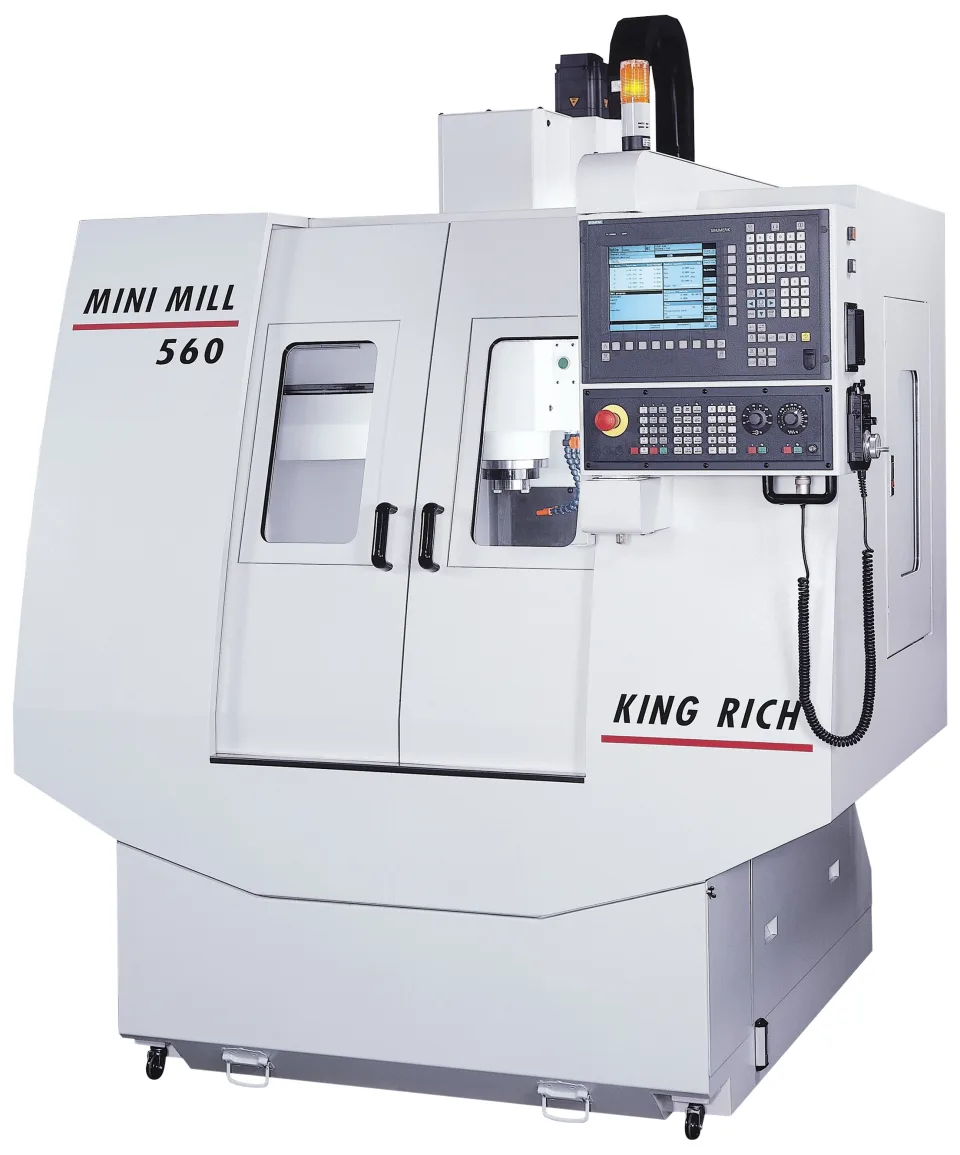

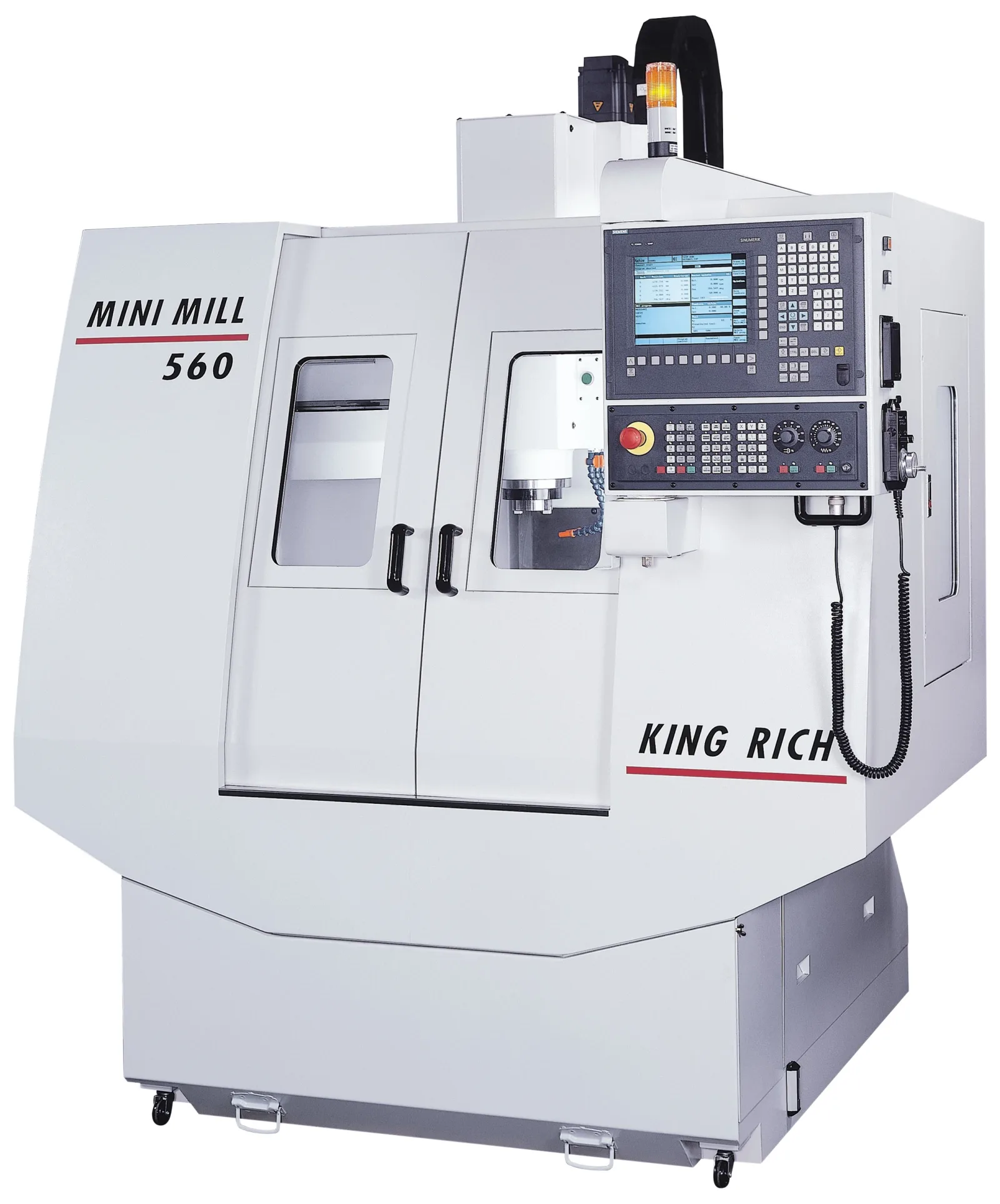

King Rich KR-MF560 CNC Mini Mill

16 Tool arm type tool changer

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Longitudinal Travel 560 mm
Cross Travel 400 mm
Vertical Travel 500 mm
Spindle Nose to Table 100 - 600 mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

16 Tool arm type tool changer

Quality Taiwanese Manufacturing

  • Rugged Box Way Construction
  • Fagor 8055MC Control
  • Conversational Easy Programing
  • Solid Graphics Program Check
  • 16 Tool Arm type ATC
  • Fully Enclosed Guarding

12000rpm Spindle Speed

  • Spindle Cooler Device
  • Spindle Purge System
  • Spindle Air Blast
  • 4th Axis Prewire
  • Swarf Converyor

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Longitudinal Travel 560 mm
Cross Travel 400 mm
Vertical Travel 500 mm
Spindle Nose to Table 100 - 600 mm
Table Size 610 x 370 mm
Ball Screw Diameter 32mm
Rapid Traverse Rate 20 m/min
Cutting Feed Rate (max) 10 m/min
Spindle Speed (max) 12000rpm
Spindle Taper BT40
Spindle Power 10 HP
Floor Space (LxWxH) 2055 x 2800 x 2530mm
Machine Weight 2700kg
