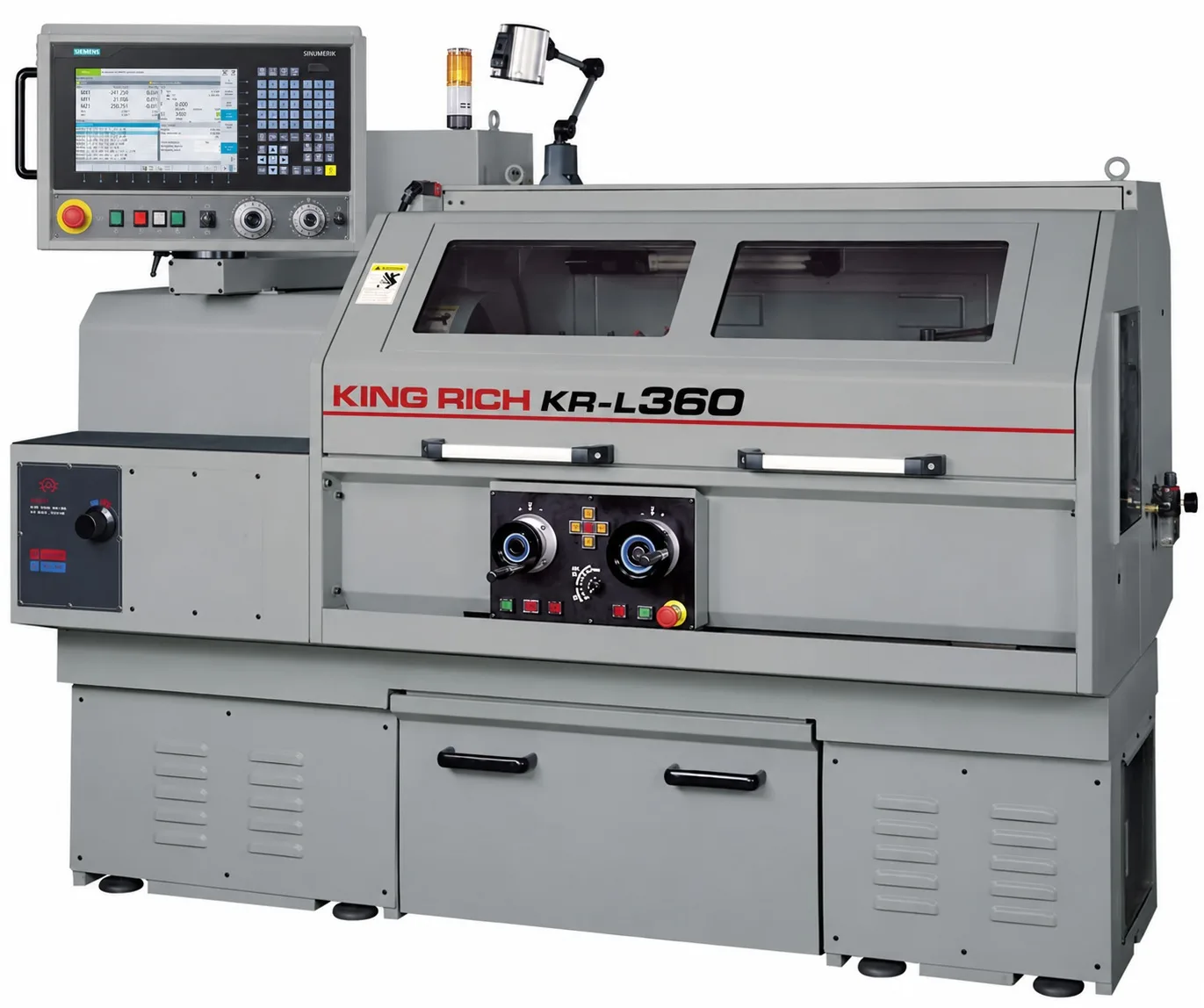

King Rich KR-L360 Combination Manual/CNC Lathe
Taiwanese-built manual/CNC lathe with Siemens SINUMERIK 828D control, a 4-way indexing toolpost and a Bison 200mm 3-jaw chuck. 1,000mm between centres.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
A compact Taiwanese-built lathe for general engineering and toolroom work, combining CNC turning with external electronic handwheels. The roller-door enclosure provides access to the work area, while the control mounted above the headstock keeps the display close to the operator's view of machining.
KING RICH Industries was established in 1975 evolving from a traditional knee-type mill manufacturer into a bed-type mill, CNC Machining Centre and CNC lathe producer.
KING RICH machines are known for their precision, durability, and dependability. This reputation together with a strong commitment to quality results in over 35,000 KING RICH machine installations worldwide.
KING RICH enjoys an excellent reputation for advanced technologies, rigorous quality control and reliable components to offer customers the most dependable, high quality precision machines built to the Quality Assurance ISO-9001 certified standards.
Features
- Siemens SINUMERIK 828D control with PPU271.5 horizontal operator panel.
- Siemens spindle motor and axis servomotors.
- Precision-ground ballscrews.
- Integrated machine base and bed for rigidity.
- Saddle and guideways with Turcite-B bearing surfaces.
- Straight bed and D1-6 camlock spindle nose.
- Spindle speed range of 50–4,000 rpm in 2 ranges, with automatic headstock gear range change.
- Fully interlocked roller-door guarding.
- X/Z electronic (MPG) handwheels on the carriage.
- Air-assisted tailstock for easier positioning.
- Automatic lubrication and headstock oil heat exchanger with filter.
Scott package includes
- Bison 3545-200-6, 200mm 3-jaw self-centring chuck with bolt-on jaws, D1-6 camlock mounting and a maximum rated speed of 4,000 rpm.
- 4-way indexing toolpost.
- Coolant system.
- Swarf tray.
- Work light.
Optional accessories
- Fixed steady, roller type.
- Travelling steady.
- 4 jaw chuck
Support
- Our customers can be assured we can provide comprehensive and total support for your machine through our CNC knowledge from our factory trained engineers.
