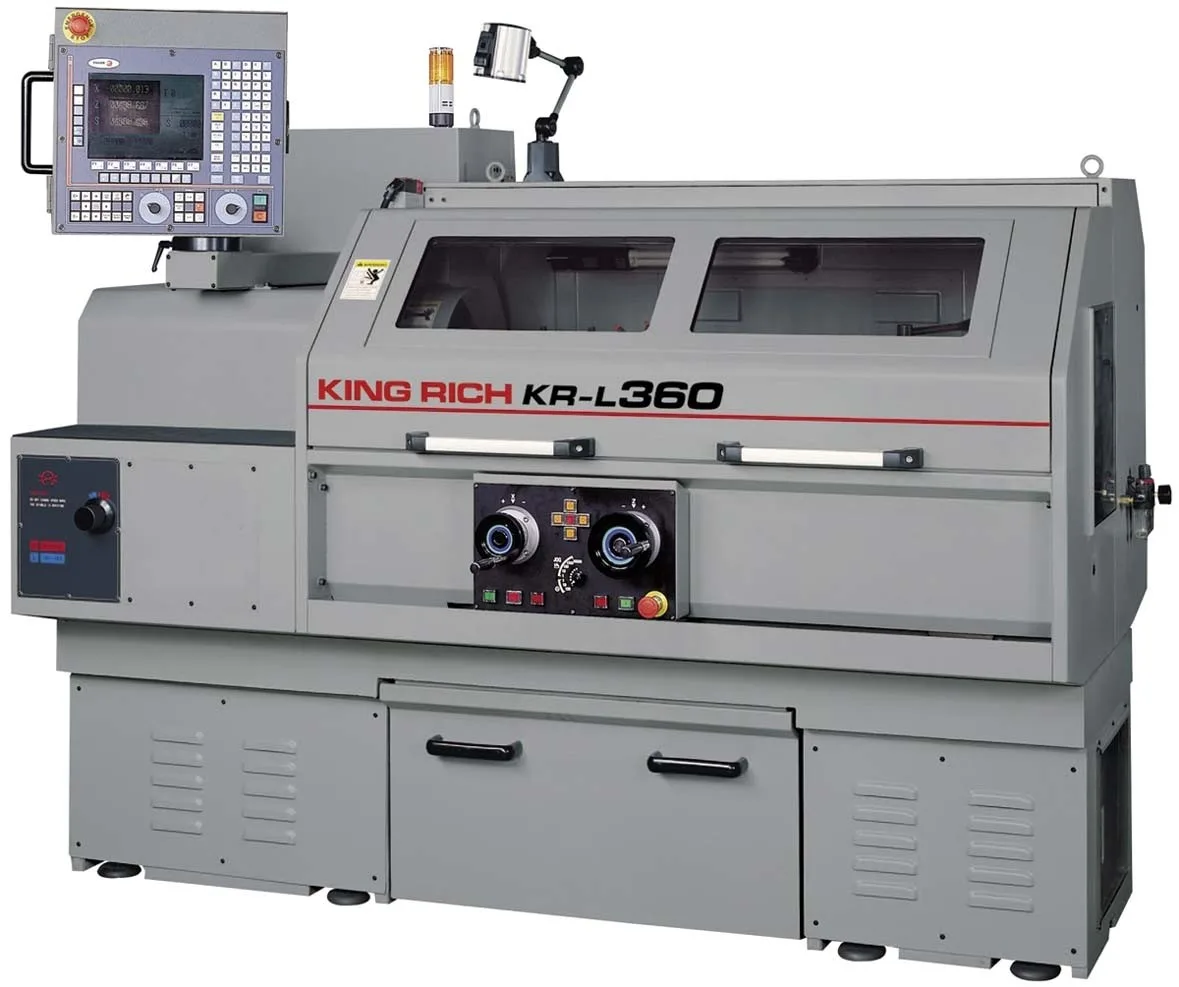

King Rich KR-L360 Combination Manual/CNC Lathe
8 station auto tool turret 1000mm between centres
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
360mm
Distance between centres
800mm
Spindle bore
52mm
Speed range
50 - 4,000 rpm (2 ranges)
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
A perfect size teach lathe for general engineering. It has features including a nice roller door system which keeps the machine fully enclosed, external hand wheels and controls, a nice chip removal tray system and having the control mounted above the headstock works well as this is the direction you are looking when watching machining.
Quality Taiwanese Manufacturing
- Fagor 8058 Control
- Fagor digital spindle drive and motor
- Conversational Easy Programming
- Solid Graphics Simulation
- Saddle and guideway c/w turcite-B
- Automatic Headstock Gear Range Change
- Roller door style enclosed Guarding
- X/Z Electronic (MPG) hand wheels on Carriage
- Integrated machine base and bed for rigidity
- Camlock spindle
- Straight bed
3 Jaw lathe chuck 200mm (Strong KD6-8)
- 8 Station Servo (high speed) Turret
- Auto Lubrication System
- Heat exchanger for the headstock oil, with filter
- Air assisted levitating tailstock
- Ethernet, USB and RS-232 file transfer options
Optional:
- Larger models - KR-L480 & KR-BL480
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-L360 CNC
Swing over bed
360mm
Swing over cross slide
225mm
Swing in gap
N/a
Spindle bore
52mm
Spindle nose
D1-6 camlock
Width of bed
300mm
Distance between centres
800mm
Speed range
50 - 4,000 rpm (2 ranges)
Tailstock taper
4MT
Motor power
7.5HP / 10kW
Weight
2100 kg
Floor space
2250 x 1250 x 1820mm
