CNC-0-9300
CNC Machine Tools · Teach & toolroom machines

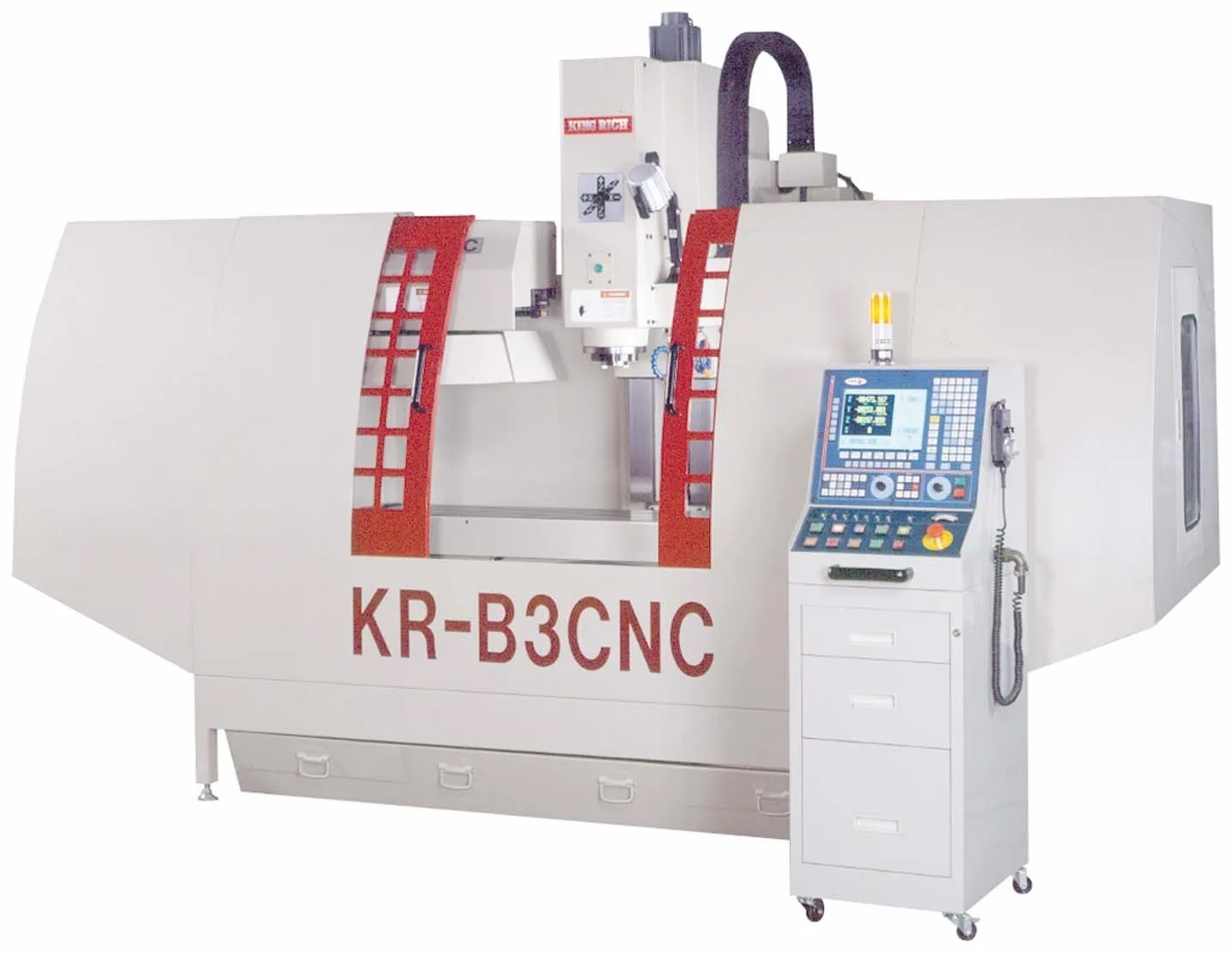

KING RICH KR-B3CNC CNC Teach Mill
Two models available KR-B3CNC or KRB4CNC 20 Tool arm type tool changer
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Two models available KR-B3CNC or KRB4CNC 20 Tool arm type tool changer
Quality Taiwanese Manufacturing
- Fagor 8055MC-B Control
- Conversational Easy Programing
- Solid Graphics Program Check
15HP Fagor Servo Spindle Drive
- Fagor Digital Servo Drives & Motors
- 20 Tool Automatic Tool Change
- Full Enclosed Guarding
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| King Rich | KR-B3CNC | KR-B4CNC |
|---|---|---|
| Longitudinal Travel | 1050 mm | 1500 mm |
| Cross Travel | 480 mm | 600 mm |
| Vertical travel | 515 mm | 720 mm |
| Spindle Nose to Table | 95 - 610 mm | 95 - 815 mm |
| Table Size | 355 x 1650 mm | 406 x 1930 mm |
| Rapid Traverse Rate | 10 m/min | 10 m/min |
| Cutting Feed Rate | 5 m/min | 5 m/min |
| Spindle Taper | BT40 | BT40 |
| Spindle Speed | 60 - 8000 rpm | 60 - 8000 rpm |
| Spindle Power | 15 HP | 15 HP |
| Axis Servo Motors | 2 kW | 2 kW |
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
