1 / 2
MBED-2-0007

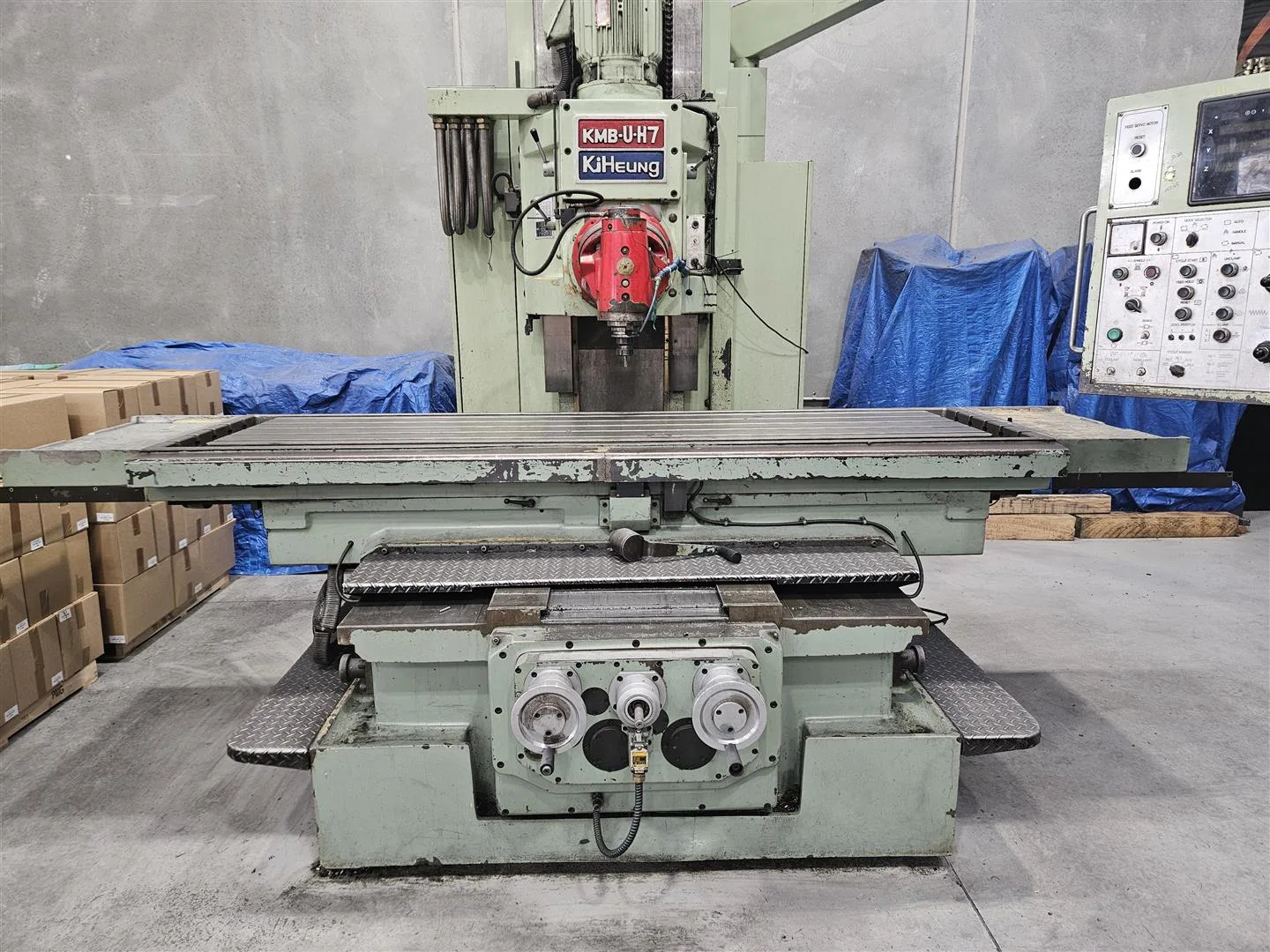

KiHeung (Korea) KMB-UH-7S Used Heavy Duty Bed Mill
Large 1995 Bed mill available now from Bay of Plenty Area
$60,000.00 ono
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
KMB-UH-7S
Table size
2700 x 750mm
X axis travel
2,100mm
Y axis travel
1,000mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Heavy duty bed mill with vertical head in good condition.
Manufactured Dec 1995 in South Korea
Available now from Bay of Plenty Area
Features
- 3 axis DRO
- Vertical head with NT50 taper
- Metric configuration
- Swivelling control panel
- Slideway lubrication
- Hydraulic Tool Clamp/Unclamp
- 3 Axis Feed (gear box)
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KMB-UH-7S
Table size
2700 x 750mm
X axis travel
2,100mm
Y axis travel
1,000mm
Z axis travel
800mm
Universal head spindle
NT50
Direct horizontal spindle
NT50
Table load (max)
4,000kg
Spindle Speed
15 - 1,083 rpm (18 steps)
Machine weight
15,000kg (approx)
