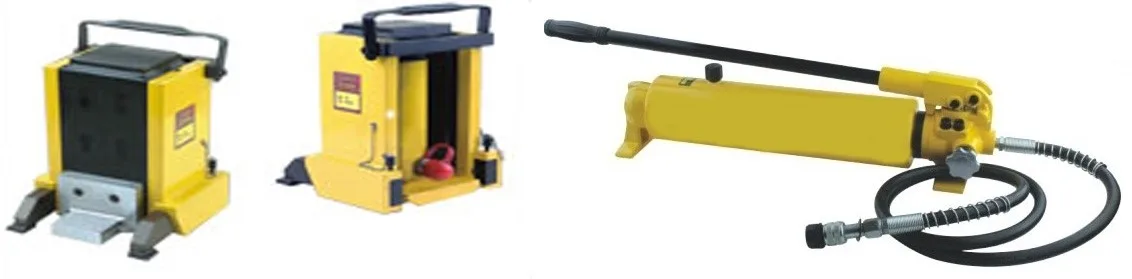

HYDRAULIC MACHINE JACK 10ton 136mm SH10136
Hydraulic toe type jack & remote style hand pump
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
The tool is applicable for lifting heavy equipment with minimum available access. The separate hydraulic pump allows remote control and enhances safety. Low height lifting toe. The extended support feet provide extra stability. One man can operate the tool easily when lifting heavy loads. No kick back from lever bar if it is accidentally released. This greatly reduces the risk of injuries.
Jack Model 10136
- Rated load: 10 ton
- Stroke: 136mm
- Packing size: 25x25x30cm
- Weight: 36 kg
- Pricing : $POA + GST
Hydraulic Hand Pump Model HP700A
- Max output pressure:700/10000Kg/cm
- Output pressure: Low-pressure: 350
- Oil storage volume (cc): 700
- Packing size: 81x19x18cm
- Weight :14 kg
- Pricing : $POA + GST
