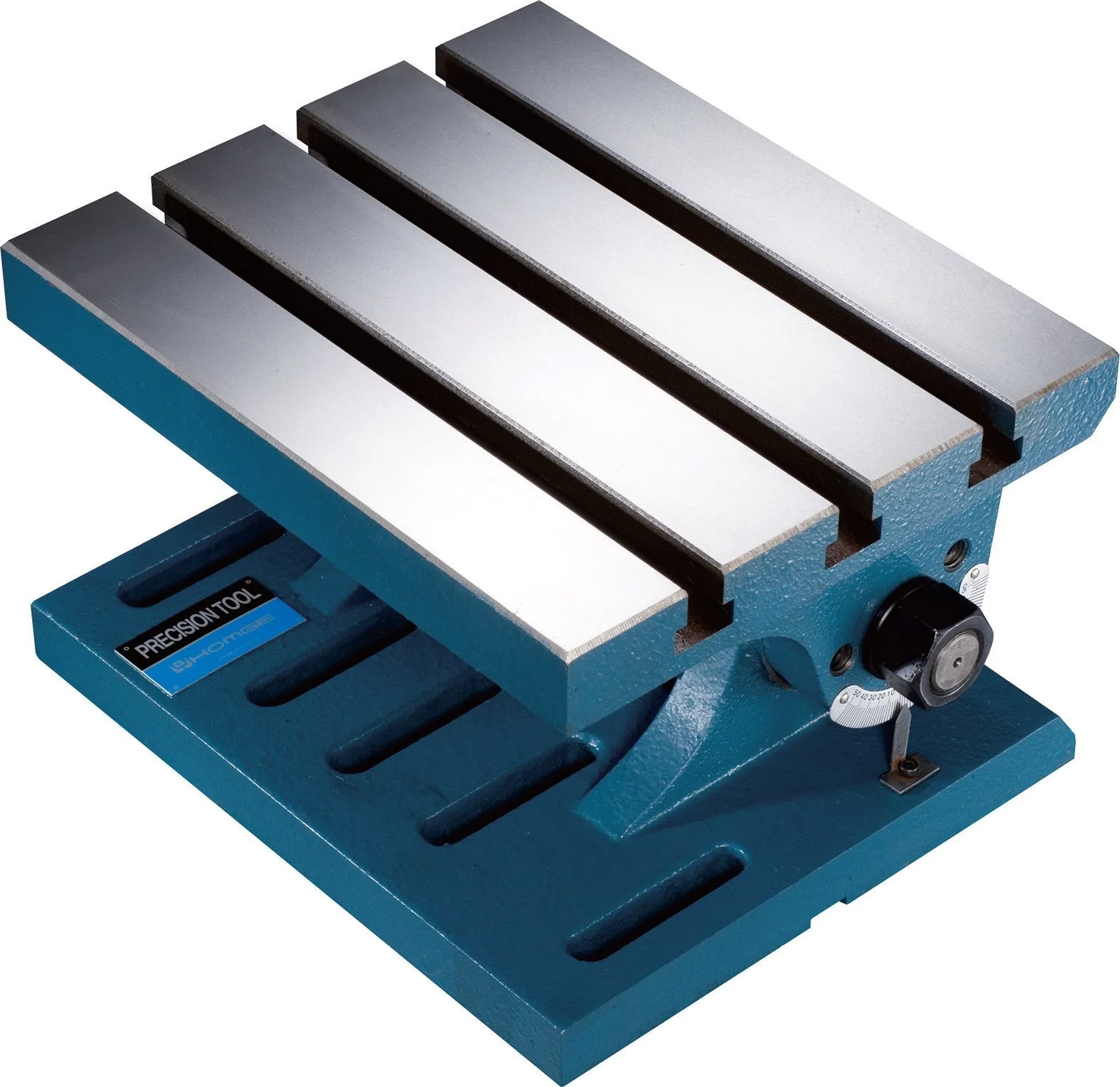

Homge HSAP Series Tilting Angle Plates

Tilting Angle Plate

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The HOMGE HSAP Tilting Angle Plates are precision setup fixtures designed for fast and accurate angular positioning on milling and drilling machines. They are used to set components at controlled angles for machining, drilling, inspection, and layout work without complex fixturing. The HSAP design provides a rigid tilting body with clearly graduated angle adjustment, allowing quick setup and repeatable positioning. Manufactured from high strength cast construction with precision-machined reference faces, the plates are intended to maintain stability under machining loads in toolroom and production environments

Features:

  • Designed for fast angular adjustment on milling and drilling machines
  • Tilting mechanism allows quick setting of required machining angles 0 - 90 degrees
  • High strength cast iron construction for rigidity and vibration resistance
  • Precision-machined locating faces for accurate setup and alignment
  • Clear graduated scale for repeatable angle positioning
  • Suitable for machining, drilling, inspection, and layout operations
  • Stable design maintains accuracy under workshop and production loads
  • Available in multiple sizes (HSAP series) to suit different workpiece capacities
  • Simple mechanical adjustment with locking hinge bolts for quick setup changes without complex fixturing

Made in Taiwan

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
HOMGE Length Depth Height T-slot Weight Price Excl GST
HSAP-1 204mm 154mm 130mm 13mm 12 kg $289.00
HSAP-2 256mm 204mm 170mm 16mm 26 kg $699.00
HSAP-3 306mm 254mm 196mm 16mm 45 kg $940.00
HSAP-4 386mm 308mm 210mm 16mm 78 kg $1,199.00
