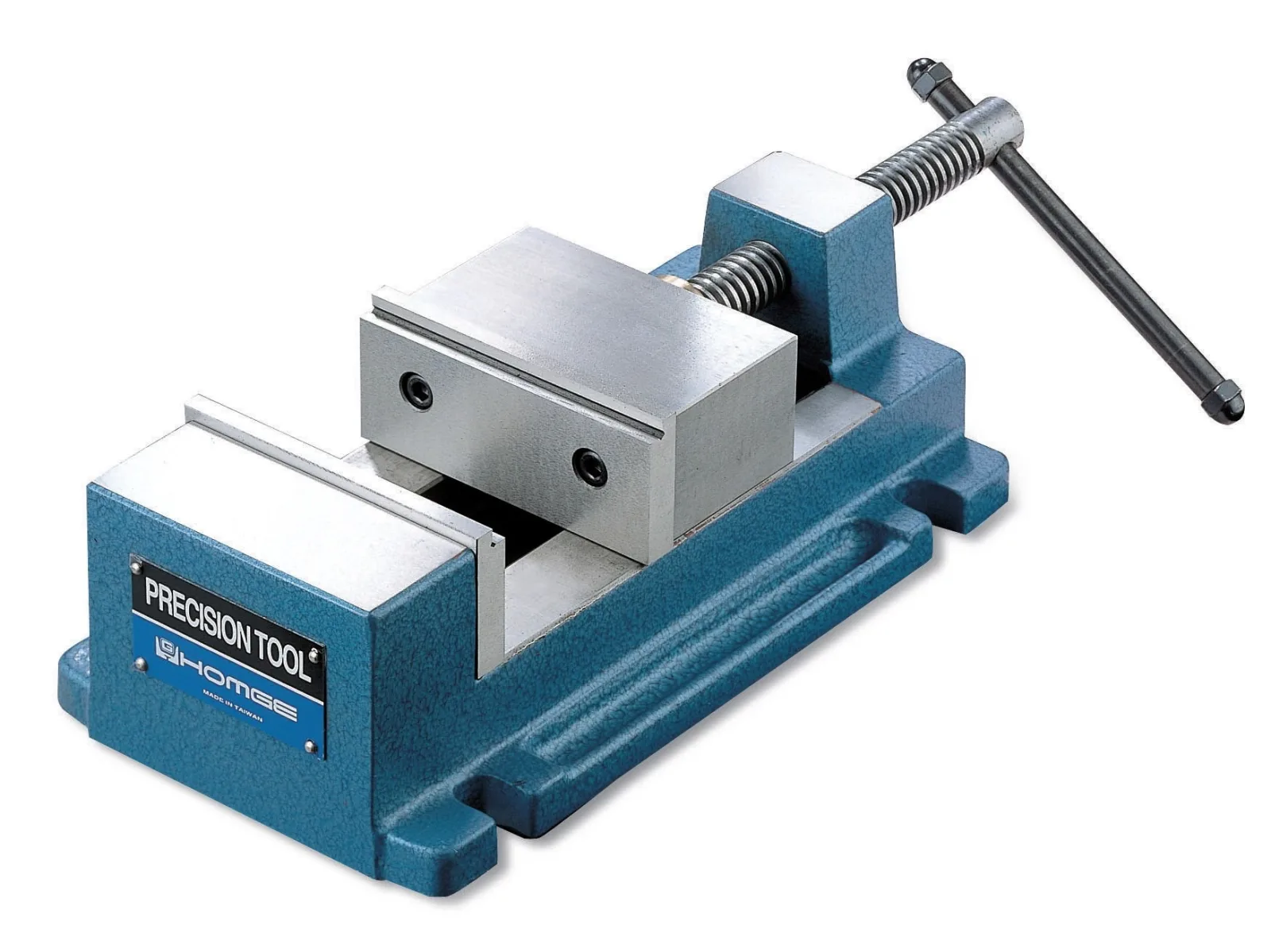

Homge HDV-100 Angle Lock Drill Vice

Precision type drill vice

$249.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Jaw width 100mm
Jaw opening 90mm
Jaw height 43mm
Dimensions L x W x H 277 x 140 x 83mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

HDV-100 Angle Lock Drill Vice is a compact, precision drill vice designed for accurate clamping on drilling, milling, and inspection work. The angle-lock mechanism pulls the workpiece down onto the fixed jaw, reducing lift during drilling and improving stability under load. Suitable for general workshop and production use, the HDV-100 provides solid work-holding for small to medium components where repeatable positioning and secure clamping are required. Built from hardened and ground components, it is designed to maintain alignment and withstand daily use in machining environments.

Features:

  • Hardened and ground jaws (HRC50) for accuracy and wear resistance
  • Compact footprint suitable for drill presses and milling machines
  • Precision-ground base for secure mounting and alignment
  • Smooth screw mechanism for controlled clamping pressure
  • Suitable for general machining, drilling, and inspection applications
  • Built of high tensile FCD55 ductile iron.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Jaw width 100mm
Jaw opening 90mm
Jaw height 43mm
Dimensions L x W x H 277 x 140 x 83mm
Weight 6.6kg
