Homge HCM-2 Superior Universal Dividing Head

SUPERIOR UNIVERSAL DIVIDING HEAD HOMGE HCM2

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The HOMGE HCM-2 Superior Universal Dividing Head is a precision indexing unit designed for complex dividing, gear cutting, and spiral milling operations. It allows both simple and differential dividing through the use of change gears, making it suitable for advanced machining work on milling machines and toolroom setups. The unit features a tilting head (0-90 degree) and a large through bore, providing flexibility for a wide range of component sizes and machining angles. Built with hardened and ground spindle, worm, and gear components, the HCM-2 is designed to maintain accuracy and durability under continuous workshop use.

Features:

  • Universal dividing capability for simple, differential, and spiral machining operations
  • Tilting head from 0 to 90 dgrees for angular and compound machining setups
  • 40:1 worm and gear ratio for precise and repeatable indexing
  • Spindle, worm, and gear manufactured from high grade steel, hardened and ground for accuracy and wear resistance
  • Large 55.5 mm through bore with MT6 taper for increased capacity and rigidity
  • Supplied with change gears for a wide range of indexing combinations
  • Double-sided dividing plate with multiple hole configurations for flexible indexing
  • Dovetail tailstock design for rigidity and accurate alignment adjustment

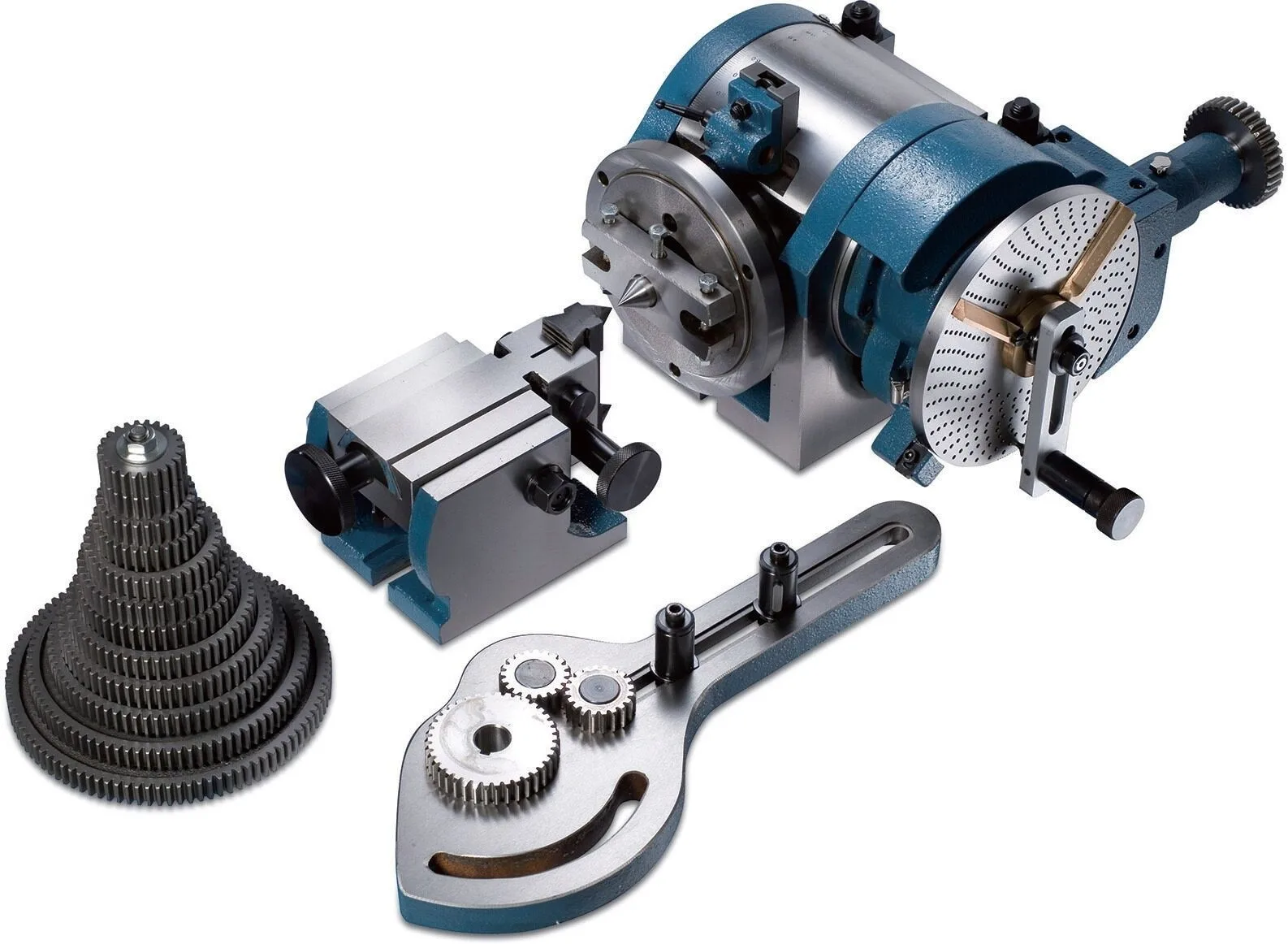

  • Complete package supplied with centre, carrier, change gear quadrant, dividing plates, gears, and tailstock
  • Suitable for gear cutting, spline work, spiral milling, and complex indexing applications
  • 132 kg
  • Made in Taiwan

Available on indent

Optional:

  • 7" 3 jaw chuck
