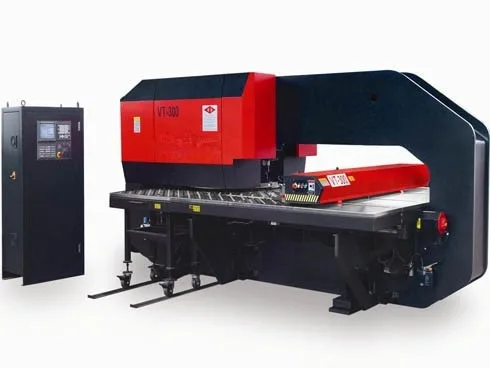

G FAB VT-300 CNC Turret Punch
G-FAB CNC VT300 Turret Punch 1500x4000
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Fanuc Oi-PC controls with Fanuc digital AC drives and Fanuc motors. 10.4” Graphics display Siemens relay logic. Free standing electronic panel. Ball screws on X and Y travel. Sleeved Turret tool cavities. Rigid closed frame. Combination Brush and Ball table. CAD software to enable files to be transferred in dxf and compatible with other machines. Full set of tooling included. Tooling interchangeable with major brands. Tooling packages Additional Auto Index Stations
FANUC Oi-PC CNC control matched with FANUC servo drives and FANUC motors.
- Pneumatic Clamping also floats to allow vertical movement.
- The clamps present only a small dead zone and can travel between the discs of the turret.
Programmable Intelligent clamping to prevent crashes.
- High quality heavy duty linear motion.
- Linear guides and ball screws are by Bosch Rexroth.
- Auto Lubrication is included.
- Stroke and speed is adjustable.
- Automatic hydraulic overload protection.
Machine video
See G FAB VT-300 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Specification | Unit | ||||
|---|---|---|---|---|---|
| Punch force | kN | 300 | 300 | 300 | 300 |
| Max sheet size | mm | 1250x2500 | 1250x4000 | 1250x5000 | 1500x4000 |
| Sheet thickness | mm | 0.6-6.35 | 0.6-6.35 | 0.6-6.35 | 0.6-6.35 |
| Max punch dia. | mm | 88.9 | 88.9 | 88.9 | 88.9 |
| No. of stations | Qty | 24/32 | 24/32 | 24/32 | 24/32 |
| Holde accuracy | mm | +/-0.1 | +/-0.1 | +/-0.1 | +/-0.1 |
| Max hit speed | hpm | 600 | 600 | 600 | 600 |
| 25mm step speed | hpm | 350 | 320 | 320 | 300 |
| Max feeding speed | m/min | 85 | 85 | 85 | 85 |
| Turret speed | rpm | 30 | 30 | 30 | 30 |
| Machine axis | Qty | 4 + 1 | 4 + 1 | 4 + 1 | 4 + 1 |
| Auto index stations | Qty | 2 | 2 | 2 | 2 |
| Compressed air | psi | 100 | 100 | 100 | 100 |
| Main motor | kW | 11 | 11 | 11 | 11 |
| Floor space | mm | 5020x2680x2340 | 5020x4000x2340 | 5020x5000x2340 | 5520x4000x2340 |
| Weight | kg | 17700 | 19000 | 20900 | 22700 |
