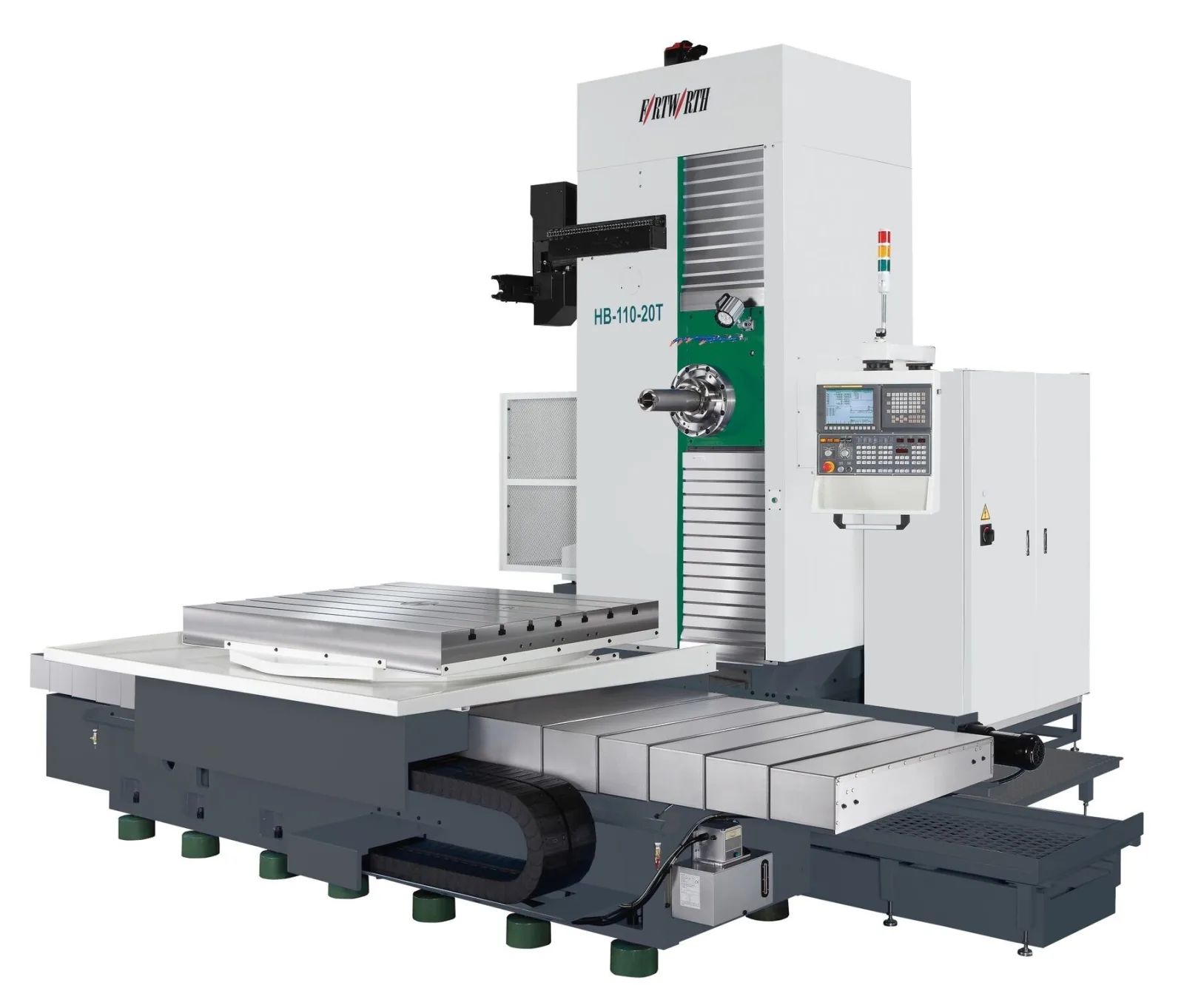

Fortworth HB-110-20T CNC Boring & Milling Machine
Quality Taiwanese manufacturing 1500x1200mm Table size 550mm Spindle stroke
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
HB-110-20T
Table size
1500x1200mm
Maximum load capacity
5500kg
Minimum table indexing
0.001deg
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Taiwanese manufacturing 1500x1200mm Table size 550mm Spindle stroke
Key features
- Fanuc Oi-MF CNC control
- Automatic tool changer
- Portable MPG hand wheel
- 500mm Spindle travel
- 0.001deg Indexing table - Full B-Axis 360 degree
Configuration
- X Axis - Longitudinal travel
- Y Axis - Vertical travel
- Z Axis - Column towards table
- W Axis - Quill or spindle extension
- B Axis - Table rotation
Key features
- Coolant through spindle (CTS)
- Table guarding
- Chip conveyor & bucket
- Right angle milling attachment
Machine video
See Fortworth HB-110-20T in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HB-110-20T
Table size
1500x1200mm
Maximum load capacity
5500kg
Minimum table indexing
0.001deg
X Axis Travel
2000mm (3000mm optional)
Y Axis travel
1500mm
Z Axis travel
1400mm
W Axis travel
550mm
Spindle nose to table centre
-30 to 1920mm
Spindle centre to table top
0-1500mm
Spindle nose
BT50
Spindle diameter
110mm
Automatic tool changer capacity
60 pieces
Spindle motor
22kW
