FINTEK V-812 Manual Straight Folder

Heavy Duty Straight Folder 2465mm x 2.5mm Made in Taiwan

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Bending length 2465mm
Bending capacity (mild steel) 2.5mm
Bending capacity (stainless steel) 1.6mm
Bending angle 0-135 degrees
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.

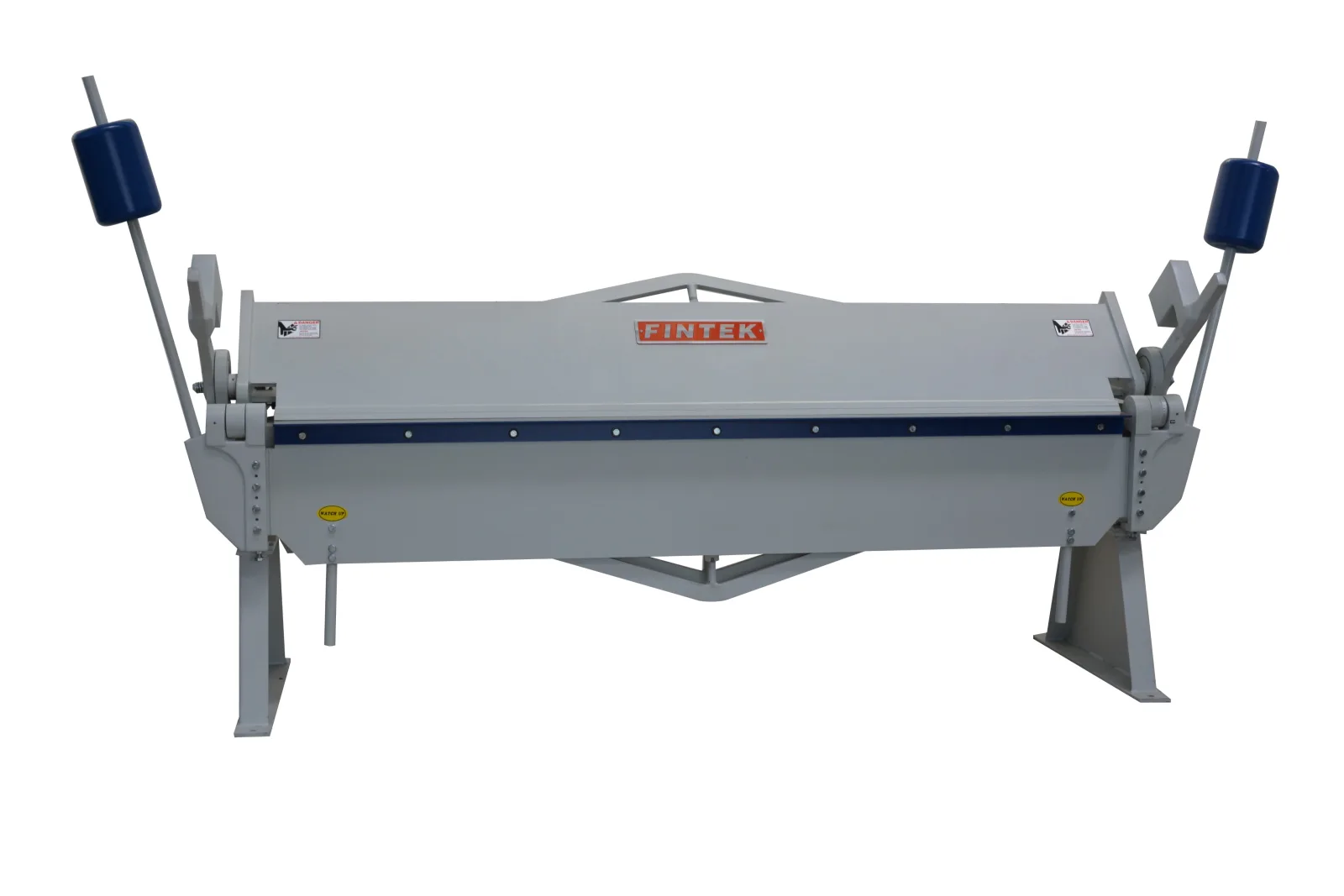

The FINTEK V-812 is a well built, heavy, manual straight folder designed for precision sheet metal bending. With a folding length of 2465mm and a capacity of 2.5mm mild steel, it offers versatility for various fabrication tasks. The machine features manual clamping and bending, ensuring accurate results for professionals in the metalworking industry. Its heavy duty design and quality construction make it a reliable choice for demanding applications.

Features:

  • Manual straight folder for precise sheet metal bending
  • Folding length: 2465 mm
  • Capacity: up to 2.5 mm mild steel
  • Manual clamping and bending for accurate results
  • Heavy duty construction for reliability and durability
  • Suitable for a variety of metal fabrication tasks
  • Ideal for workshops and professional sheet metal work

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Bending length 2465mm
Bending capacity (mild steel) 2.5mm
Bending capacity (stainless steel) 1.6mm
Bending angle 0-135 degrees
Beam adjustment 25mm
Min reverse bend 16mm
Weight 1200kg
Shipping 3120mm x 850mm x 1000mm (1,250kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
