FINTEK V-1016 Manual Straight Folder
FOLD-0-3006

Sheet Metal & Fabrication · Folders

FINTEK V-1016 Manual Straight Folder

Sheet metal Straight folder 3075mm x 1.6mm Made in Taiwan

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Folding capacity 1.6mm mild steel - 1.0mm stainless steel
Folding length 3075mm
Bending angle 0-135°
Weight 1300kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.

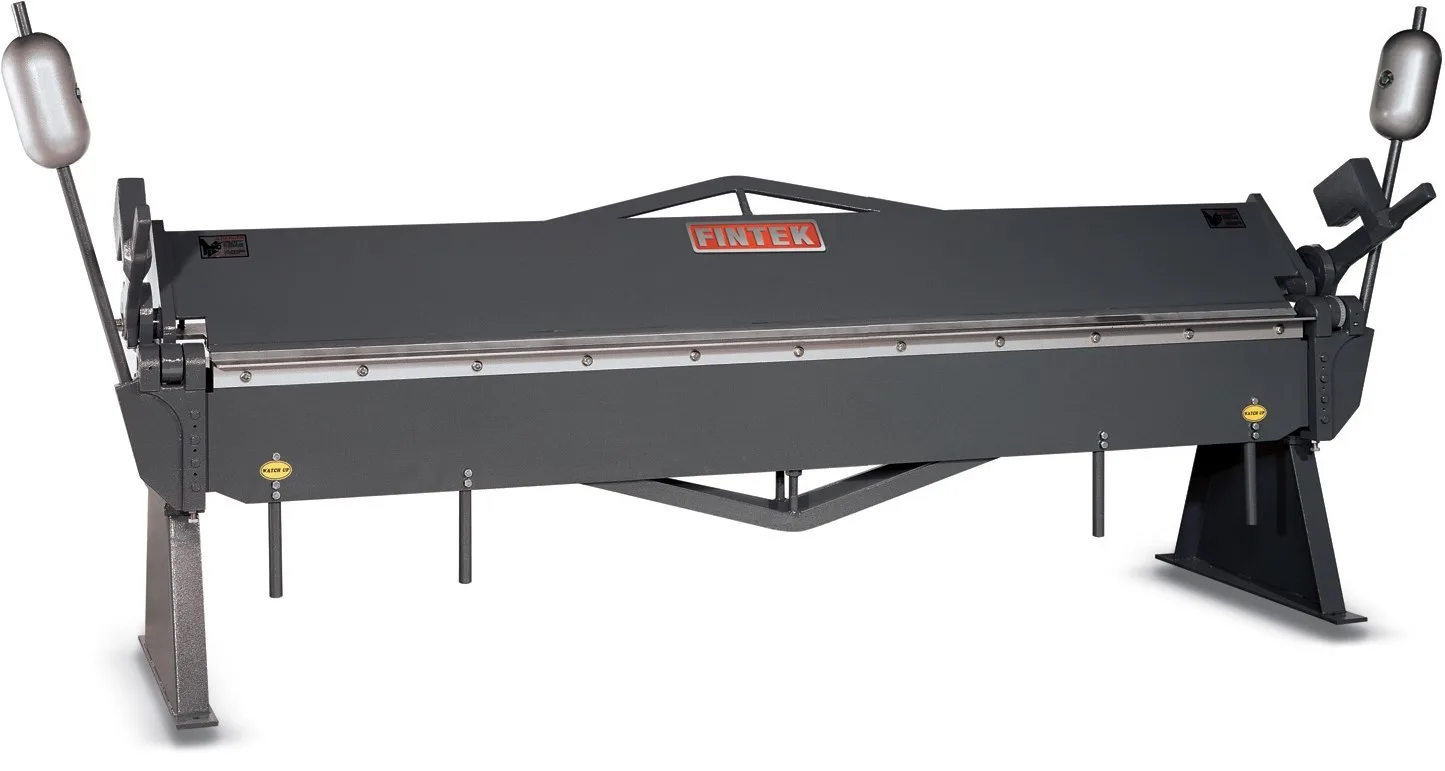

The FINTEK V-1016 is a heavy, manual straight folder designed for precision sheet metal bending. With a folding length of 3075 mm and a capacity of 1.6 mm mild steel, it offers versatility for various fabrication tasks. The machine features manual clamping and bending, ensuring accurate results for professionals in the metalworking industry. Its heavy duty design and quality construction make it a reliable choice for demanding applications.

Features:

  • Manual straight folder for precise sheet metal bending
  • Folding length: 3075 mm
  • Capacity: up to 1.6 mm mild steel
  • Manual clamping and bending for accuracy
  • Heavy duty construction for reliability and durability
  • Hand powered folding
  • Eccentric clamping
  • Straight blade tooling
  • Angle gauge

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Folding capacity 1.6mm mild steel - 1.0mm stainless steel
Folding length 3075mm
Bending angle 0-135°
Weight 1300kg
Floor space (LxWxH) 3700mm x 850mm x 1000mm
