GHYD-0-5010
Sheet Metal & Fabrication · Guillotines

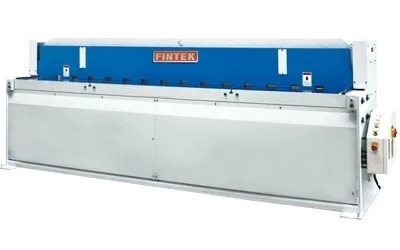

FINTEK P-12010 Hydraulic Guillotine
3100mm x 3.5mm
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
Fintek P-12010
Capacity (mild steel)
3.5mm
Capacity (stainless steel)
2.3mm
Strokes
20 p/min
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.
Features:
- M15S programmable NC control
- NC controlled back gauge with ball screws
- 2 deg. Cutting angle
Standard Accessories:
- NC Power back gauge 800mm with M15S controller
- High carbon, high chrome alloy blades
- Front finger guard
- 600mm Front support
- Hydraulic hold down clamps
Note - supplied without oil
Optional Accessories:
- Angle gauge
- Manual back gauge 600mm
- Hydraulic or pneumatic sheet support
Note - 2mm capacity machine available also.
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
Fintek P-12010
Capacity (mild steel)
3.5mm
Capacity (stainless steel)
2.3mm
Strokes
20 p/min
Working length
3100mm
Oil capacity
95 litres
Backgauge max. distance
800mm
Motor power
5.5kW (7.5hp)
Shipping weight
3200kg
Shipping size
3820 x 1100 x 1500mm
