P&SH-0-2002
Sheet Metal & Fabrication · Notching

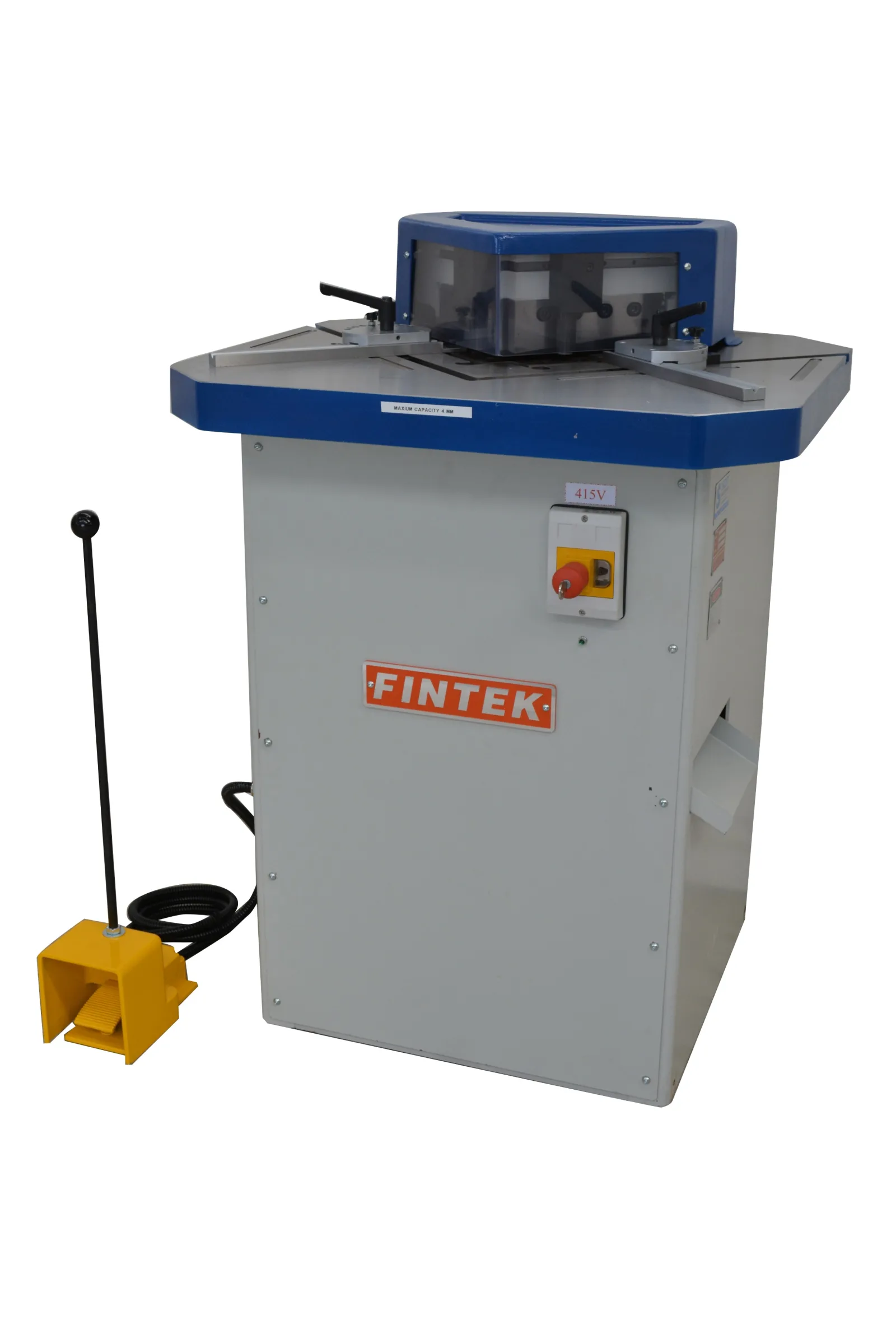

Fintek HY-4 Hydraulic Fixed Angle Notcher
90 degree fixed angle notcher
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
HY-4
Maximum capacity
4mm Mild steel or 2.5mm Stainless steel
Maximum notch size
220mm x 220mm
Strokes per minute
35
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
90 degree fixed angle notcher
Quality Taiwanese manufacturing
- Hydraulic operation
- Work piece hold down clamps
- Fixed 90 degree angle notch
- Remote foot switch
- E-stop with lock out
- Working table with ruler
- Guarding with good blade visibility
- Offcut waste collection chute
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HY-4
Maximum capacity
4mm Mild steel or 2.5mm Stainless steel
Maximum notch size
220mm x 220mm
Strokes per minute
35
Motor power
3HP 415v
Shipping weight
450 kg
Packing dimensions
1000 x 900 x 1350mm
