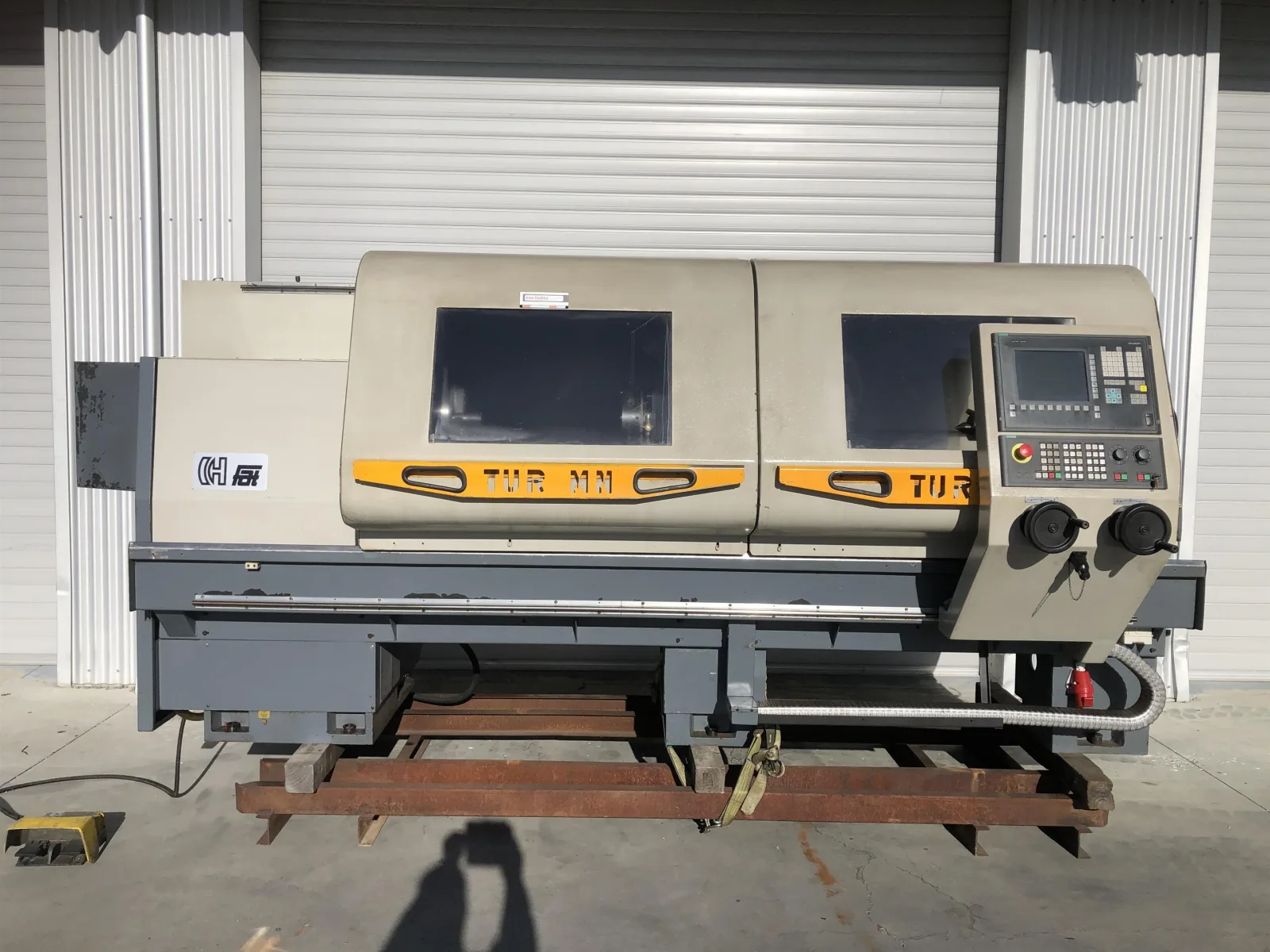

Fat Haco Turn 560MN x 2000 Used Teach CNC Lathe
1 / 13
CNC-1-0560

Fat Haco Turn 560MN x 2000 Used Teach CNC Lathe

560mm swing over bed, 2000mm between centres, 80mm bore, 8 station turret, Siemens controller

$39,999.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 560mm
Distance between centres 2000mm
Spindle bore 80mm (without hydraulic chuck & tube 105mm)
Fat Haco Turn 560MN x 2000mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Fat Tur is a renowned European manufacturer of heavy-duty CNC lathes, trusted worldwide for precision, power, and durability. With decades of experience in machine tool engineering, their lathes are designed to handle everything from high-volume production to large-scale, complex machining. Known for robust construction, advanced control systems, and exceptional accuracy,

This popular European heavy duty teach CNC lathe is in a flat bed configuration it has a 8 station VDI tool change turret and is programmed with the Siemens Sinumerik 810D ManualTurn conversational programing system. Note: Steel forklift base not included.

--Please note: This machine has been powered up and basic functions have been demonstrated as you can see in the video. See the video for more information

--We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Features

  • Quality European made
  • Dual vee solid slideway (Z)
  • 8 station turret (Sauter, VDI-40)
  • D1-8 camlock spindle
  • Kitagawa (Japanese) hydraulic 3 Jaw chuck (304mm)
  • Constant surface speed machining
  • Programable with Easystep & G-code
  • Graphics interface/simulation
  • Chip conveyor
  • High pressure coolant system
  • Slideway lubrication system

Key features

  • Siemens Sinumerik 810D
  • ManualTurn Conversational programming.
  • RS232 & Ethernet ports

Accessories

  • Chip conveyor
  • Kitagawa B212 hydraulic 3 jaw chuck (304mm dia)
  • Fixed steady
  • 15 sets of soft jaws
  • 15 VDI-40 tool holders
  • 5 turning tools

Machine video

See Fat Haco Turn 560MN x 2000 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Fat Haco Turn 560MN x 2000mm
Swing over bed 560mm
Swing over cross slide 300mm
Spindle bore 80mm (without hydraulic chuck & tube 105mm)
Distance between centres 2000mm
Bed width 433mm
Max weight between centres (without staedies) 2000 kg
Spindle speeds (variable, 2 steps) 2-2500 rpm
Spindle motor power 20 hp
Tailstock 5MT
Power supply 415 volts / 50 hz / 3 phase
Freighting details (L x D x H) machine 4100mm x 2500mm x 2000mm
Freighting details (L x D x H) Chip conveyor & accessories 4400mm x 1300mm x 1600mm
Weight (approx) Machine 4500 kg
Weight (approx) Chip conveyor & accessories 500 kg
