ROLL-0-5205
Sheet Metal & Fabrication · Rolling & forming

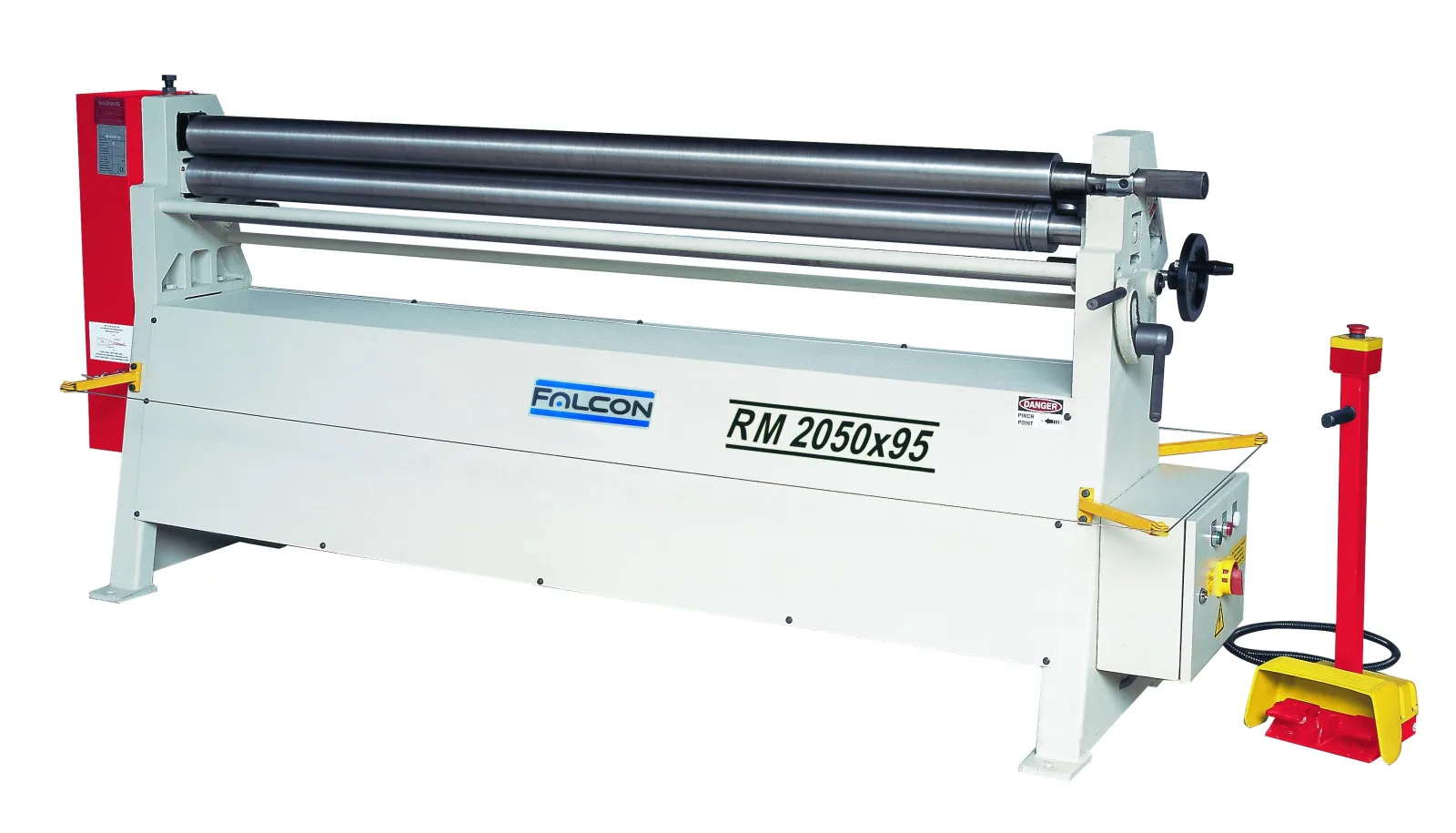

FALCON RM2050x95 Motorised Asymmetrical Rolls
Made in Europe 2050 X 1.5mm capacity
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.
Motorised Asymmetrical Rolls
- Made in Europe
- Cast iron construction
- High quality steel rolls
- 415v Brake motor
- Remote control station
- Two driving rolls
- Initial pinch style
- Swing out top roll
- Conical bending capable
Optional:
- Induction hardened rolls
- Motorised back roll adjustment
- Digital readout for back roll position
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | Length | Bending capacity | Roll diameter | Roll speed | Main motor | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| RM2050x95 | 2050mm | 1.5mm | 95mm | 6rpm | 1.5 kw 415v | 2630 x 700 x 1700mm | 665 kg |
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
