FALCON MSM-S Plate Rolls Series
FALCON logo WEB-BIRLIK MSMS SERIES

Sheet Metal & Fabrication · Rolling & forming

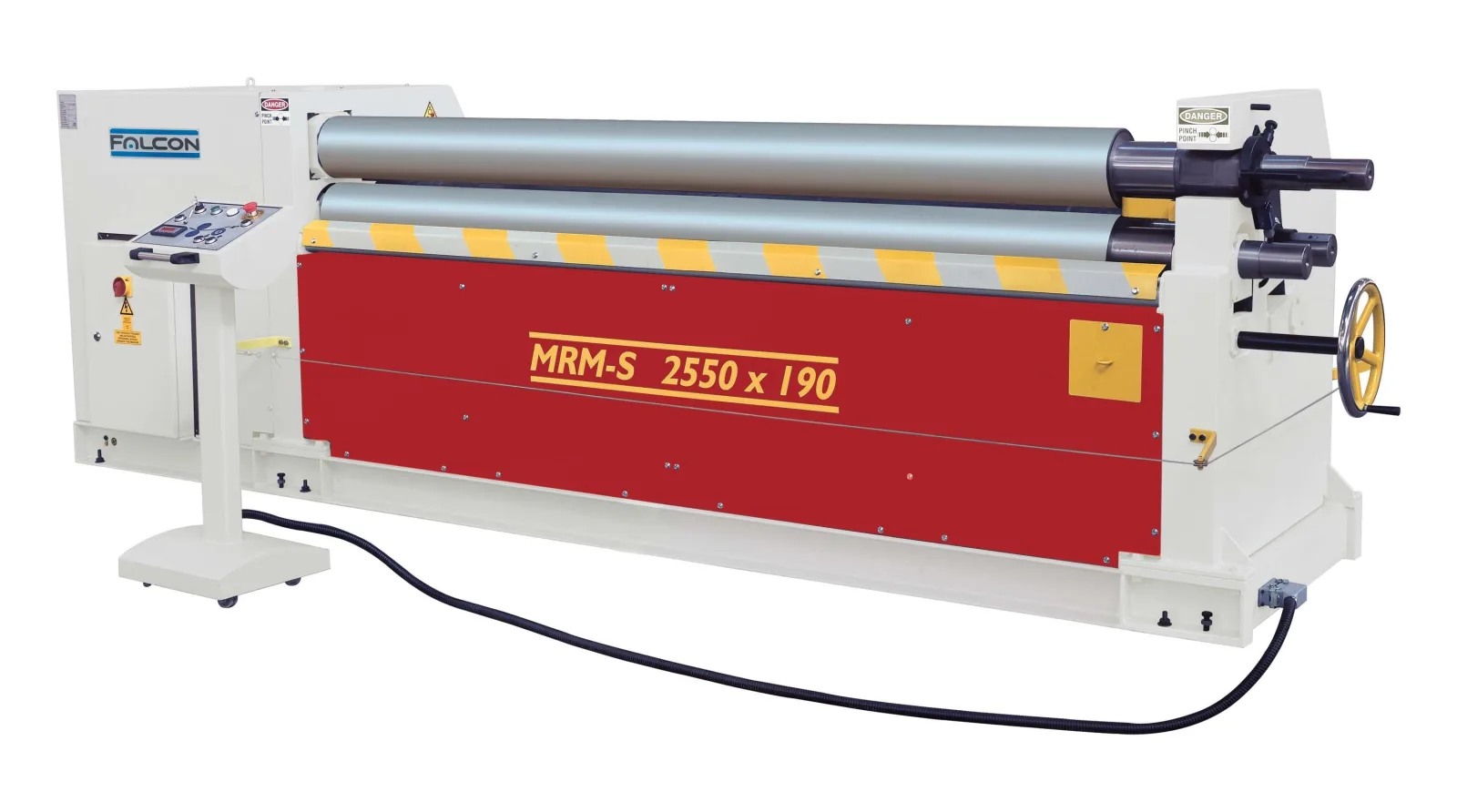

FALCON MSM-S Plate Rolls Series

Motor operated 3 roll plate rolling machines

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

Asymmetrical Plate Rolls:

  • Conical bending system
  • Extended shafts
  • Large range of sizes made
  • Cast iron construction & rolls made of special steel
  • Pre-bending possible
  • Central rolls powered
  • Removable top roll
  • Backroll position via motor
  • Remote control panel
  • CE protection device

Optional:

  • Induction hardened and ground rolls
  • Digital display for back roll
  • NC control system
  • Profile bending rolls
  • Rolling support system

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Falcon Length (mm) Pre-bend Max thickness Roll dia Min bend Motor (kW) Weight kgs
1030 Series
1030x4.0mm 1000 2 4 110 165 2.2 1195
To
1030x12mm 1000 10 12 220 330 5.5 2960
1280 Series
1280x3.5mm 1250 2 3.5 110 165 2.2 1305
To
1280x11mm 1250 10 11 220 330 5.5 3210
1530 Series
1530x2.5mm 1500 1.5 2.5 110 165 2.2 1338
To
1530x10mm 1500 8 10 220 330 5.5 3435
2030 Series
2030x2.0mm 2000 1 2 110 165 2.2 1420
To
2030x8mm 2000 6 8 220 330 5.5 3918
2530 Series
2530x3.0mm 2500 2 3 150 225 4 2700
To
2530x7.0mm 2500 5 7 220 330 5.5 4430
3030 Series
3030x2.0mm 3000 1 2 160 240 4 3750
To
3030x6.0mm 3000 4 6 220 330 5.5 4920
