ROLL-0-0059
Sheet Metal & Fabrication · Rolling & forming

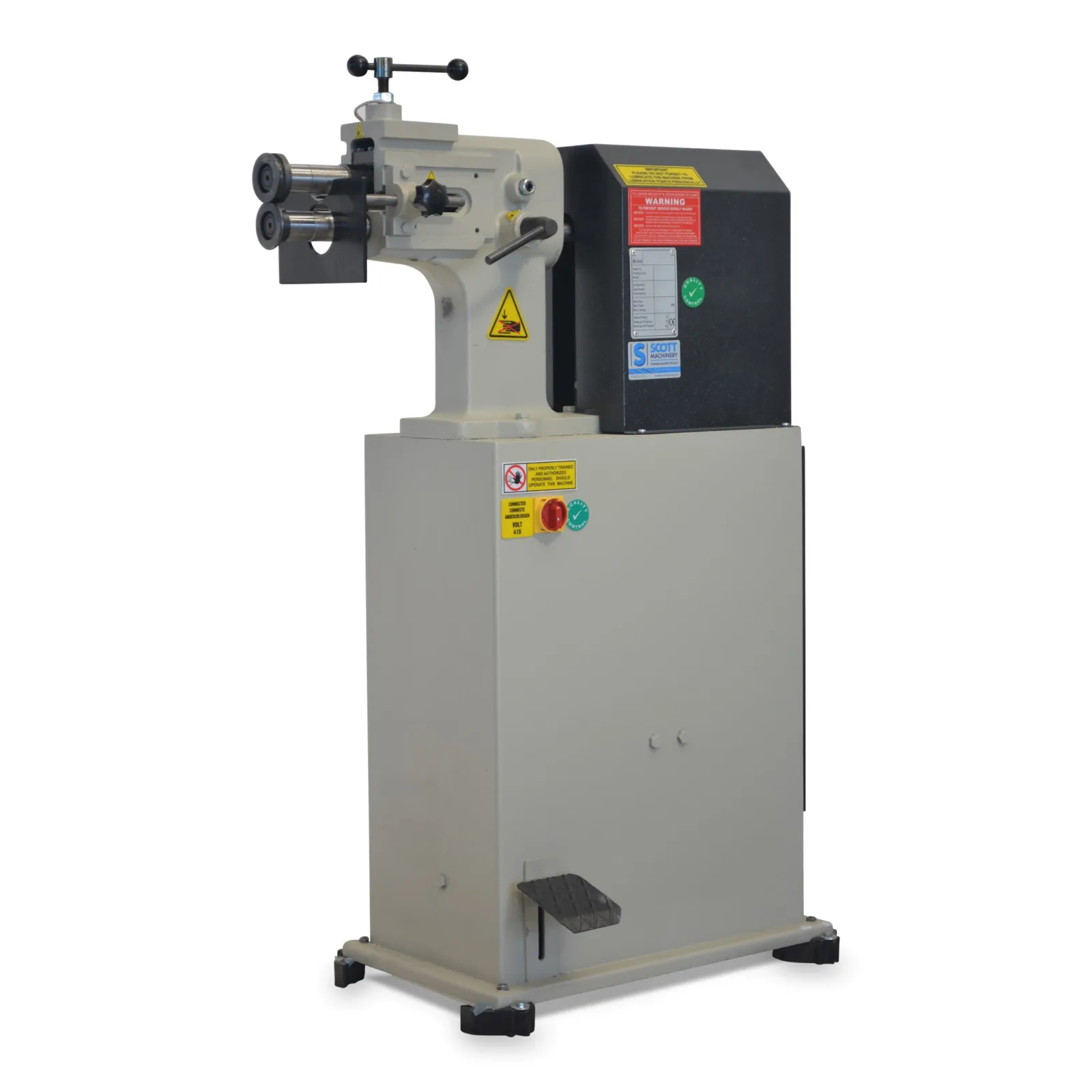

FALCON IKM-1.2 Motorised Swaging Jenny
Made in Europe
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for rolling sheet, plate, angle, channel, pipe, flats, solids, and complex profiles. They use hydraulic and electric components sourced from established suppliers to provide controlled and reliable rolling performance
The Falcon IKM 1.2 is a robust, belt-driven motorized swaging machine designed for precise sheet metal edging. Featuring 8 standard roll sets, adjustable bottom roll, and four working speeds (30-120rpm), it handles up to 1.2mm thick material with ease. Powered by a 0.75kW motor, it delivers smooth, reliable operation and industrial-grade durability.
Features:
- Motorized belt-driven swaging machine for consistent sheet metal edging
- Capacity up to 1.2 mm sheet thickness
- 8 standard roll sets for versatile applications
- Four selectable working speeds: 30 / 60 / 90 / 120 rpm

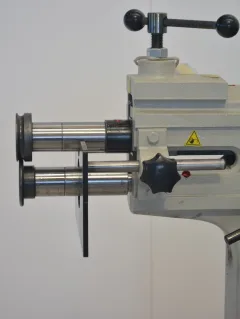

- Adjustable bottom roll for precise trimming
- 62 mm roll diameter with 140 mm shaft length
- 100 mm throat depth for handling various profiles
- 0.75 kW motor delivers smooth, reliable operation
- Cast-iron frame and robust construction for long lasting durability
- Built in cupboard for convenient roll and tooling storage
Standard accessories:

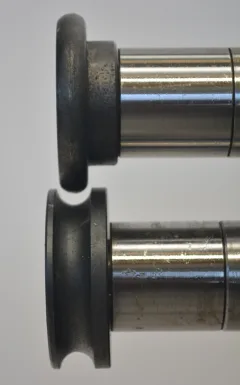

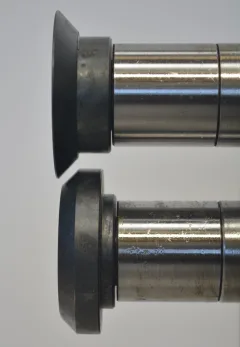

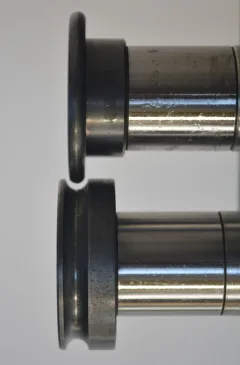

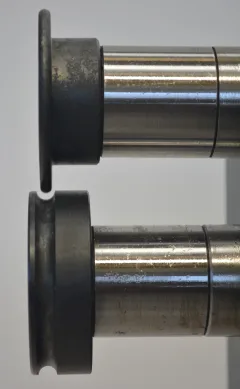

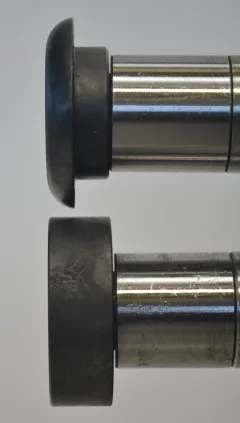

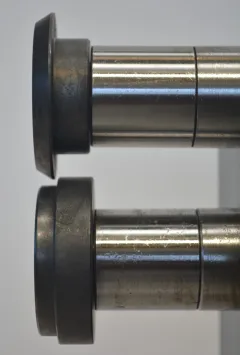

- 8 sets of rolls as per photos
Optional:
- Crimping roll set
Safety features:
- Pedal operation with latching emergency stop button
