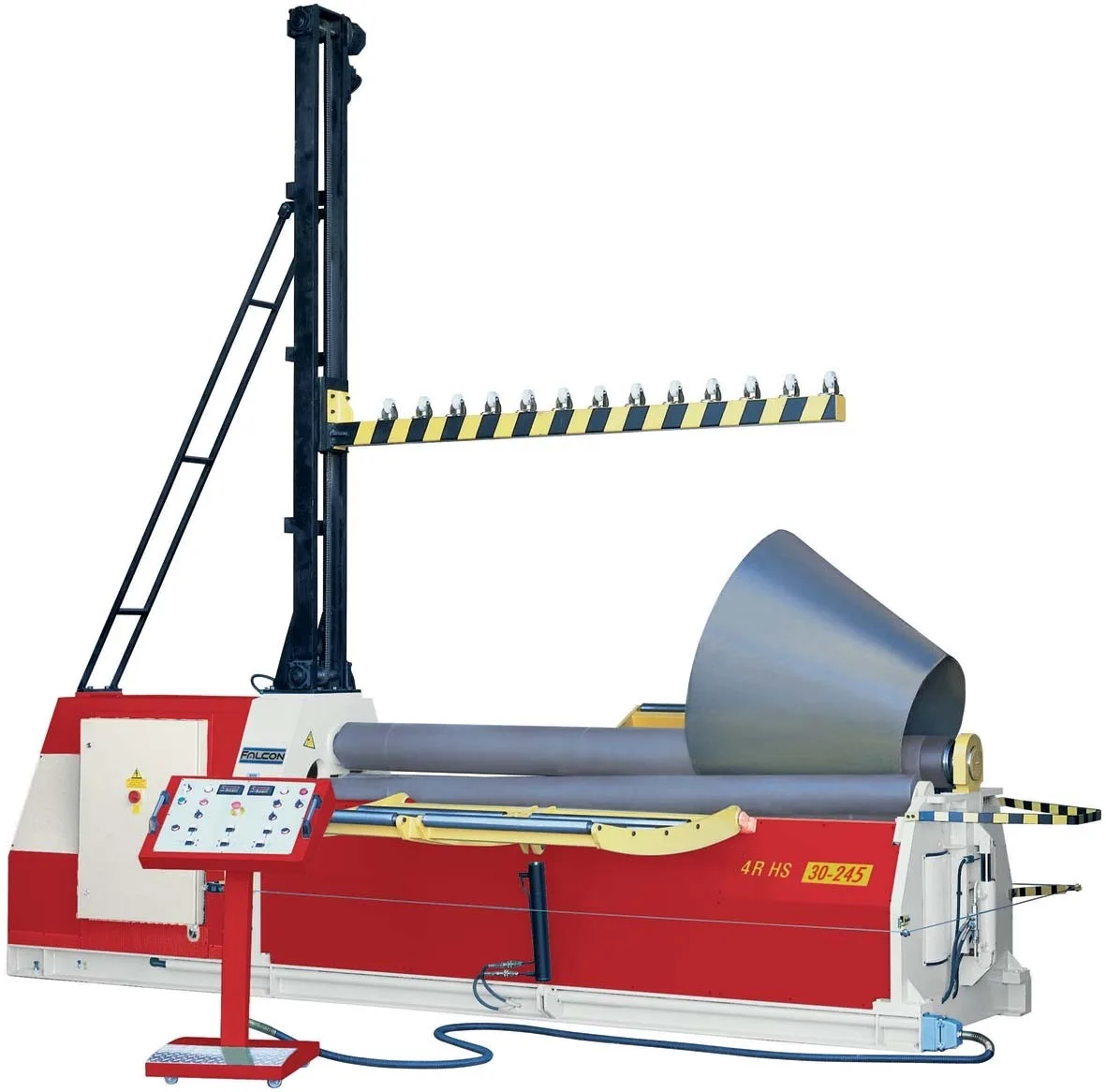

FALCON 4R HS Plate Rolls Series
4 Roller Hydraulic Plate Rolls
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.
4 Roller Hydraulic Plate Rolls:
- Large range of sizes made
- Strong design steel construction
- All rolls mounted in bearings
- Pre-bending possible
- Centre rolls are driven with hydraulic motor and planetary reducer
- Drop end to remove material from top roll
- Remote control panel for all operations
- Electrical & hydraulic overload protection
- Quality components such as Bosch, Parker, Siemens & Telemecanique
Optional:
- Induction hardened rolls
- Digital display
- Cone bending adjustment
- Variable speed control
- Extended rolls & profile rolls
- Centralised lubrication system
- Material feed table
- Changeable top roll for smaller rolls
- Side & central sheet supporters for large diameters
- NC Playback control system
- CNC Graphic control system
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | Length (mm) | Max thickness without pre-bending (mm) | Pre-bending capacity (mm) | Central roll | Side roll | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 4R HS 10-150 | 1050 | 8 | 6 | 150 | 130 | 4 | 1850 |
| 4R HS 10-170 | 1050 | 9 | 7 | 170/160 | 150 | 4 | 2100 |
| 4R HS 15-150 | 1550 | 6 | 4 | 150 | 130 | 4 | 2250 |
| 4R HS 15-170 | 1550 | 8 | 6 | 170/160 | 150 | 4 | 2500 |
| 4R HS 20-150 | 2050 | 4 | 3 | 150 | 130 | 4 | 2650 |
| 4R HS 20-170 | 2050 | 6 | 4 | 170/160 | 150 | 4 | 2900 |
| 4R HS 20-190 | 2050 | 8 | 6 | 190 | 150 | 5.5 | 3500 |
| 4R HS 20-220 | 2050 | 10 | 8 | 220 | 160 | 5.5 | 4000 |
| 4R HS 20-245 | 2050 | 13 | 10 | 245 | 180 | 7.5 | 5100 |
| 4R HS 20-260 | 2050 | 16 | 13 | 260 | 200 | 7.5 | 5970 |
| 4R HS 25-190 | 2550 | 6 | 4 | 190 | 150 | 5.5 | 4000 |
| 4R HS 25-220 | 2550 | 8 | 6 | 220 | 160 | 5.5 | 4500 |
| 4R HS 25-245 | 2550 | 10 | 8 | 245 | 180 | 7.5 | 6100 |
| 4R HS 25-260 | 2550 | 13 | 10 | 260 | 200 | 7.5 | 6740 |
| 4R HS 30-190 | 3100 | 5 | 3 | 190 | 150 | 5.5 | 4500 |
| 4R HS 30-220 | 3100 | 7 | 5 | 220 | 160 | 5.5 | 5500 |
| 4R HS 30-245 | 3100 | 8 | 6 | 245 | 180 | 7.5 | 6600 |
| 4R HS 20-260 | 3100 | 10 | 8 | 260 | 200 | 7.5 | 7480 |
| 4R HS 40-260 | 4100 | 6 | 4 | 260 | 200 | 7.5 | 9300 |
